Maintenance
136
Rebound Damping Adjustment –
Tiger XC - All Models

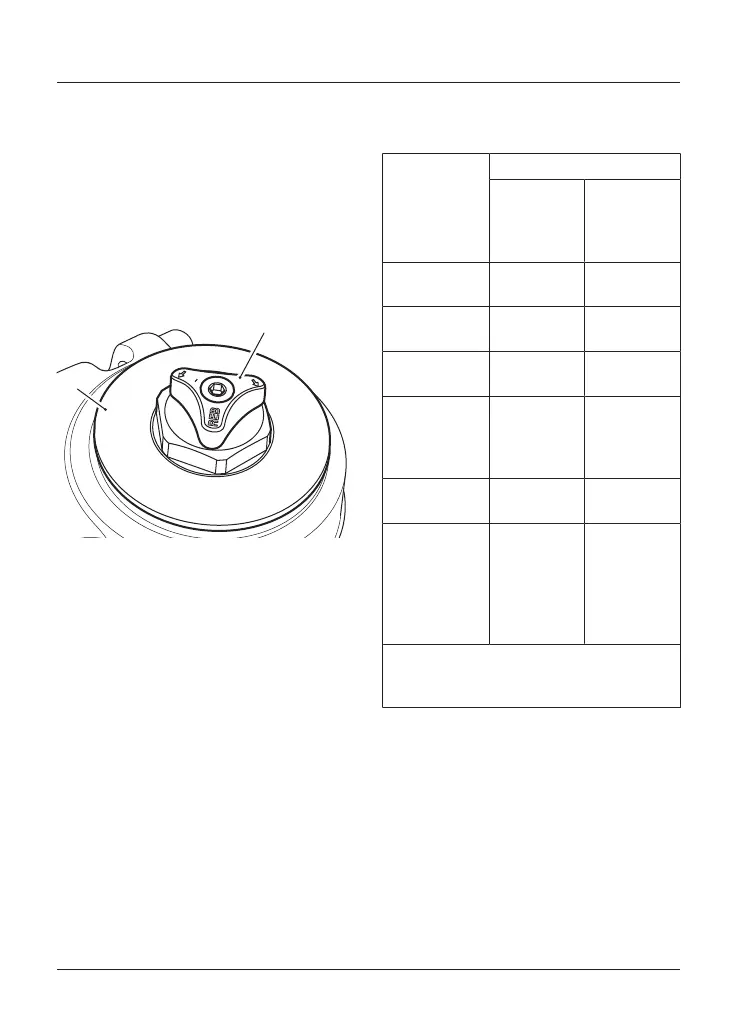

The rebound damping adjuster is
located at the top of the right hand
fork.
To change the rebound damping force,
rotate the (red) adjuster clockwise to
increase, or anticlockwise to decrease.
Always count the number of clicks back
from the fully clockwise (closed) position.
2
1
+
_
1. Rebound damping adjuster (red) (see
notes)
2. Fork top cap
Note:
• The motorcycle is delivered from
the factory with the front
suspension set at the Solo (normal)
riding setting, as shown in the
relevant suspension chart (see
page
136
).
Front Suspension Setting Chart –
Tiger XC - All Models
Loading Front
Compression
Damping
1
(left
hand fork)
Rebound
Damping
1
(right hand
fork)
Solo (Normal)
Riding
-12 -12
Solo (Comfort)
Riding
-19 -19
Solo (Sport)
Riding
-4 -4
Solo (with any
loaded luggage
items where
applicable)
-10 -10
Rider and
Passenger
-7 -7
Rider and
Passenger (with
any loaded
luggage items
where
applicable)
-6 -6
1
Number of clicks anticlockwise from the fully
clockwise (closed) position – noting that the first
stop (click) is counted as 1
The Solo suspension settings provide a
comfortable ride and good handling
characteristics for general, solo riding.
The charts above show suggested
settings for the front suspension.
