Triumph Tiger XR User Manual

General Information
74

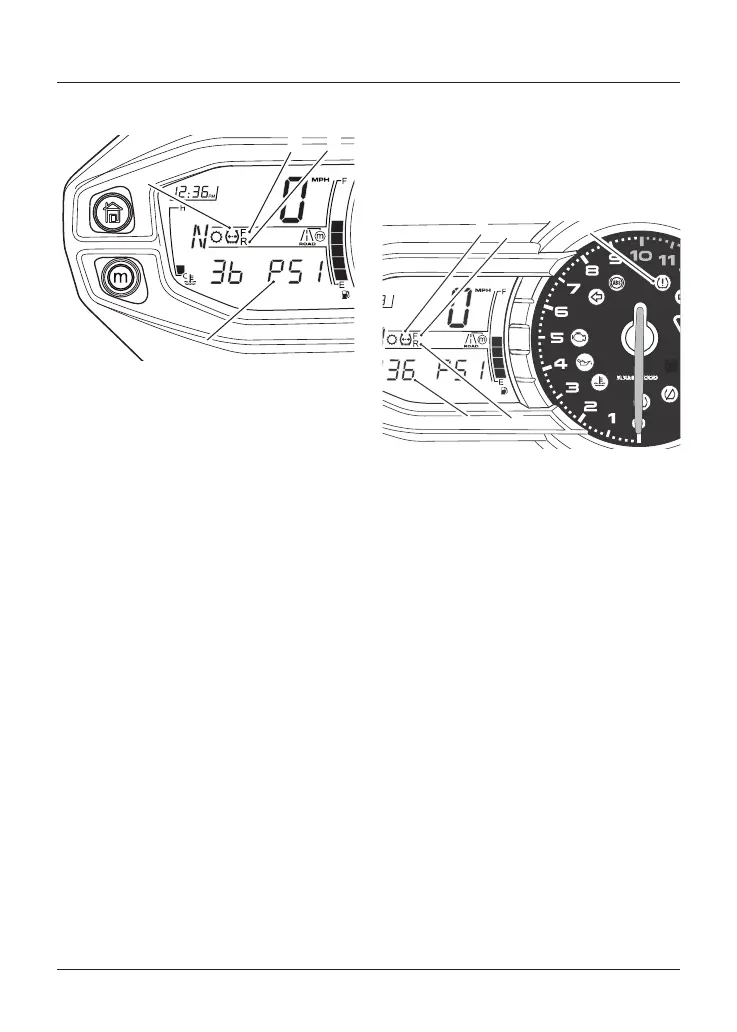

TPMS System Display
2
4
1
3
1. TPMS symbol
2. Tyre pressure display
3. Front tyre, identified
4. Rear tyre, identified
The tyre pressure display is accessed
via the Information Menu (see
page 36
).
When the front or rear tyre pressure
display has been selected, —— PSI or bAr
will be visible in the display screen until
the motorcycle is travelling at a speed
greater than 12 mph (20 km/h) and the
tyre pressure signal is received.
Once the tyre pressure signal has been
received, the pressure of the selected
tyre will be displayed.
To exit the tyre pressure display, press
and release the SCROLL button to view
another Information Menu item.
Alternatively, press and release the SET
button to select a trip meter.
TPMS Sensor Batteries
When the battery voltage in a pressure
sensor is low, lo bAtt will be displayed
for eight seconds and the TPMS symbol
will indicate which wheel sensor has the
low battery voltage. If the batteries are
completely flat, only dashes will be
visible in the display screen, the red
TPMS warning light will be on and the
TPMS symbol will flash continuously.
Contact your authorised Triumph dealer
to have the sensor replaced and the
new serial number recorded in the
spaces provided in
page 73
.
TC
TC
1
3
2 4
5
1. TPMS symbol
2. Tyre pressure display
3. Front tyre, identified
4. Rear tyre, identified
5. TPMS warning light
TPMS Symbol
With the ignition switch turned to the
ON position, if the TPMS symbol flashes
for 10 seconds and then remains on,
there is a fault with the TPMS system.
Contact your authorised Triumph dealer
to have the fault rectified.
TPMS Tyre Pressures
The tyre pressures shown on your
instrument panel indicate the actual
tyre pressure at the time of selecting
the display. This may differ from the
inflation pressure set when the tyres
are cold because tyres become warmer
during riding, causing the air in the tyre
to expand and the inflation pressure to
increase. The cold inflation pressures
specified by Triumph take account of
this.

Triumph Tiger XR Specifications

General

Engine Type	Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Engine Capacity	800 cc
Torque	79 Nm @ 7, 850 rpm
Transmission	6-speed
Wet Weight	213 kg
Fuel System	Multipoint sequential electronic fuel injection
Power	94 bhp (70 kW) @ 9, 250 rpm
Fuel Tank Capacity	5.0 gallons (19 liters)
Front Suspension	Showa 43mm upside down forks
Rear Suspension	Showa monoshock with hydraulically adjustable preload
Rear Brakes	Single 255mm disc, Nissin single piston caliper
Front Brakes	Twin 308mm floating discs, Nissin 2-piston calipers
