Trojan CROSS WALK 340 - Page 6

10281-6

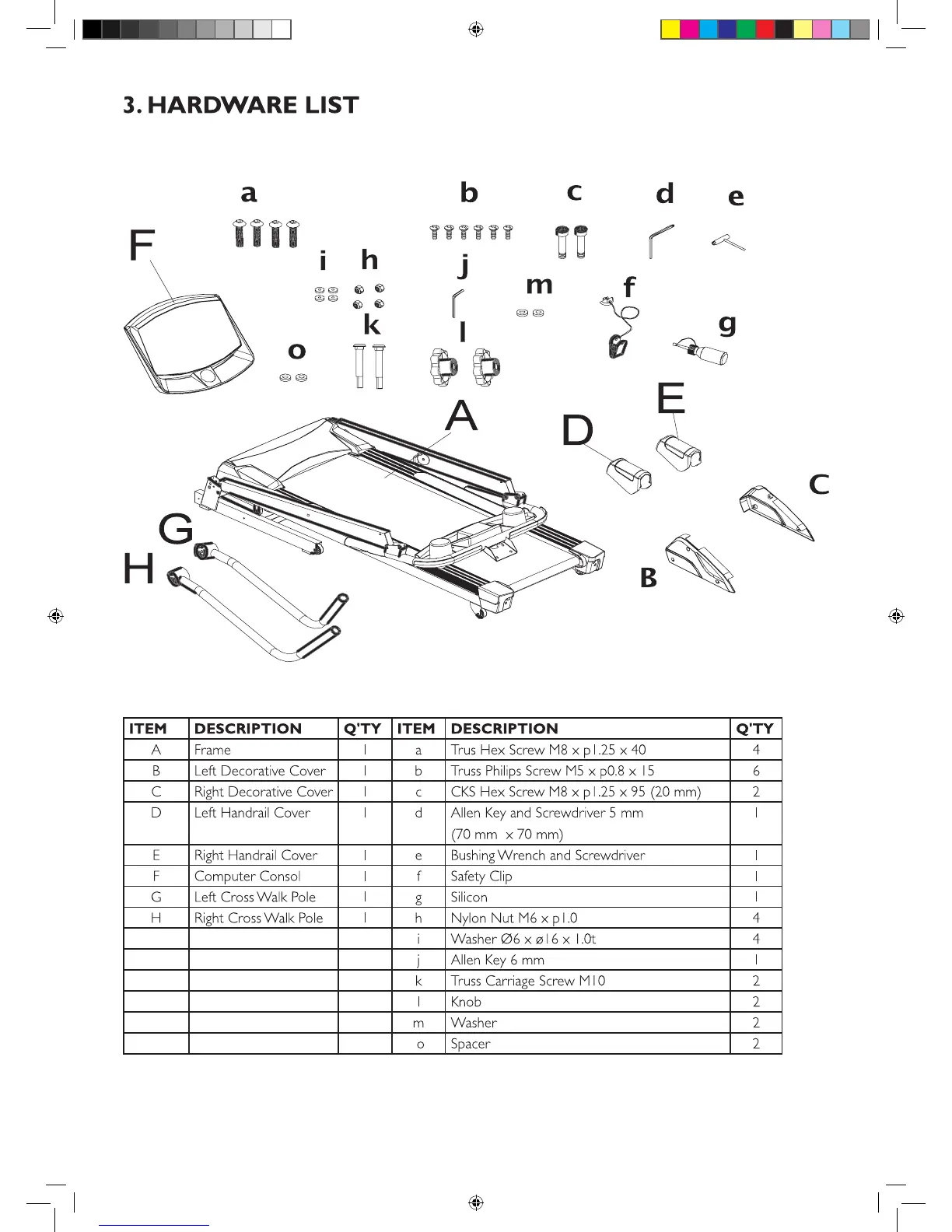

ITEM DESCRIPTION Q'TY ITEM DESCRIPTION Q'TY
A Frame 1 a Trus Hex Screw M8 x p1.25 x 40 4
B Left Decorative Cover 1 b Truss Philips Screw M5 x p0.8 x 15 6
C Right Decorative Cover 1 c CKS Hex Screw M8 x p1.25 x 95 (20 mm) 2
D Left Handrail Cover 1 d Allen Key and Screwdriver 5 mm
(70 mm x 70 mm)
1
E Right Handrail Cover 1 e Bushing Wrench and Screwdriver 1
F Computer Consol 1 f Safety Clip 1
G Left Cross Walk Pole 1 g Silicon 1
H Right Cross Walk Pole 1 h Nylon Nut M6 x p1.0 4
i Washer Ø6 x ø16 x 1.0t 4
j Allen Key 6 mm 1
k Truss Carriage Screw M10 2
l Knob 2
m Washer 2
o Spacer 2
