Trojan Elite 2000 - Page 11

11
ASSEMBLY STEPS

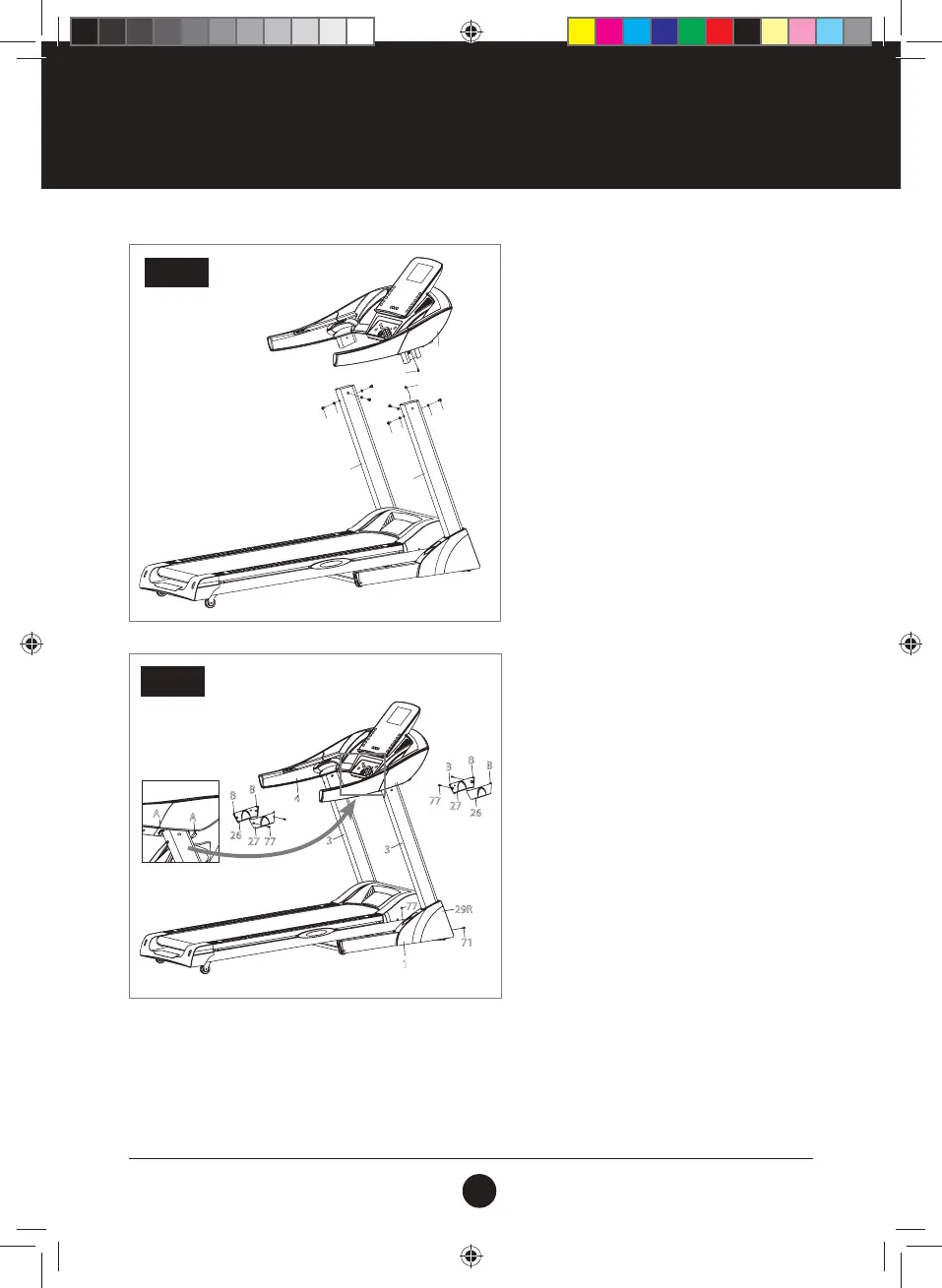

STEP 3:
Connect the Upper Extension Wire (96) and the
Lower Extension Wire (97).
Afx the Computer Frame (4) on the Left and Right
Upright Tube (3) with the Hex Socket Screw (57)
and Lock Washer (83).
Tighten all the bolts securely.
STEP 4:
Secure the Protective Cover (29 L /R ) to the Bottom
Frame (1) with Cross Tapping Screw (77) and Cross
Washer Head Screw (71).
Insert (B) of the Outer Upright Tube Cover (26)
and Inner Upright Tube Cover (27) to (A) of the
Computer Frame (4) as illustrated in the image on
the left, and afx the Outer Upright Tube Cover
(26) and Inner Upright Tube Cover (27) tightly to
the Left and Right Upright Tube (3) with Cross
Tapping Screws (77).
STEP 3
STEP 4
PLEASE ENSURE THE ASSEMBLY HAS BEEN COMPLETED, PER THE ABOVE
INSTRUCTIONS AND THAT ALL BOLTS ARE SECURELY TIGHTENED. ONCE
THIS HAS BEEN CHECKED, YOU MAY PROCEED WITH THE INSTRUCTIONS
THAT FOLLOW. PLEASE ENSURE THAT YOU READ THE INSTRUCTIONS
CAREFULLY BEFORE OPERATING THE TREADMILL.
ATTENTION:
57
57
57
83
83
83
97
4
96
3
3
29R
71
77
26
27
77
26
27
77
B
B
B
B
B
A
A
1
3
3
4
