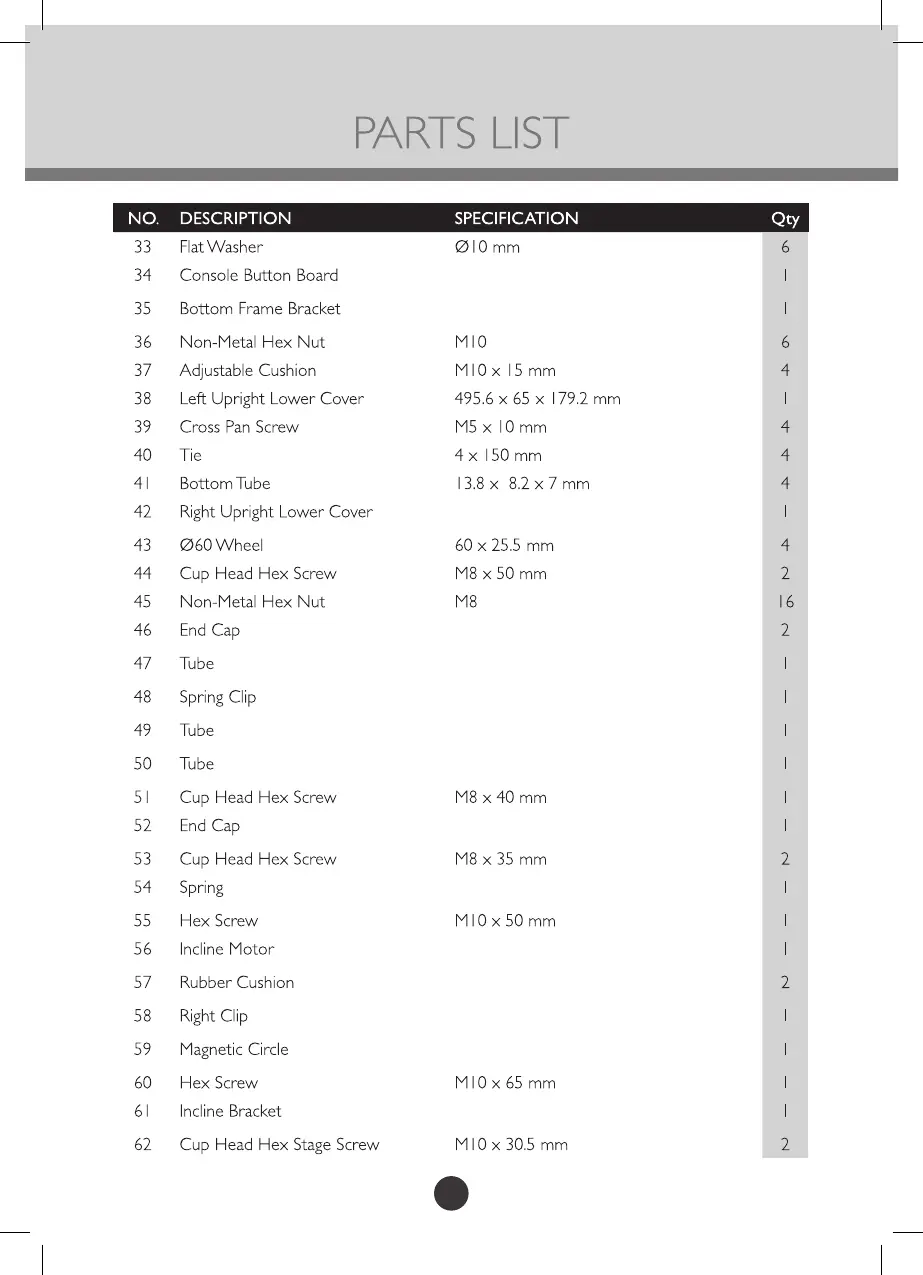

NO. DESCRIPTION SPECIFICATION Qty
33 Flat Washer Ø10 mm 6
34 Console Button Board
1
35 Bottom Frame Bracket 1
36 Non-Metal Hex Nut M10 6
37 Adjustable Cushion M10 x 15 mm 4
38 Left Upright Lower Cover 495.6 x 65 x 179.2 mm 1
39 Cross Pan Screw M5 x 10 mm 4
40 Tie 4 x 150 mm 4
41 Bottom Tube 13.8 x 8.2 x 7 mm 4
42 Right Upright Lower Cover 1
43 Ø60 Wheel 60 x 25.5 mm 4
44 Cup Head Hex Screw M8 x 50 mm 2
45 Non-Metal Hex Nut M8 16
46 End Cap 2
47 Tube 1
48 Spring Clip 1
49 Tube 1
50 Tube 1
51 Cup Head Hex Screw M8 x 40 mm 1
52 End Cap 1
53 Cup Head Hex Screw M8 x 35 mm 2
54 Spring 1
55 Hex Screw M10 x 50 mm 1
56 Incline Motor 1
57 Rubber Cushion 2
58 Right Clip 1
59 Magnetic Circle 1
60 Hex Screw M10 x 65 mm 1
61 Incline Bracket 1
62 Cup Head Hex Stage Screw M10 x 30.5 mm 2
