Trojan PEGASUS 400 - Page 9

9
10308

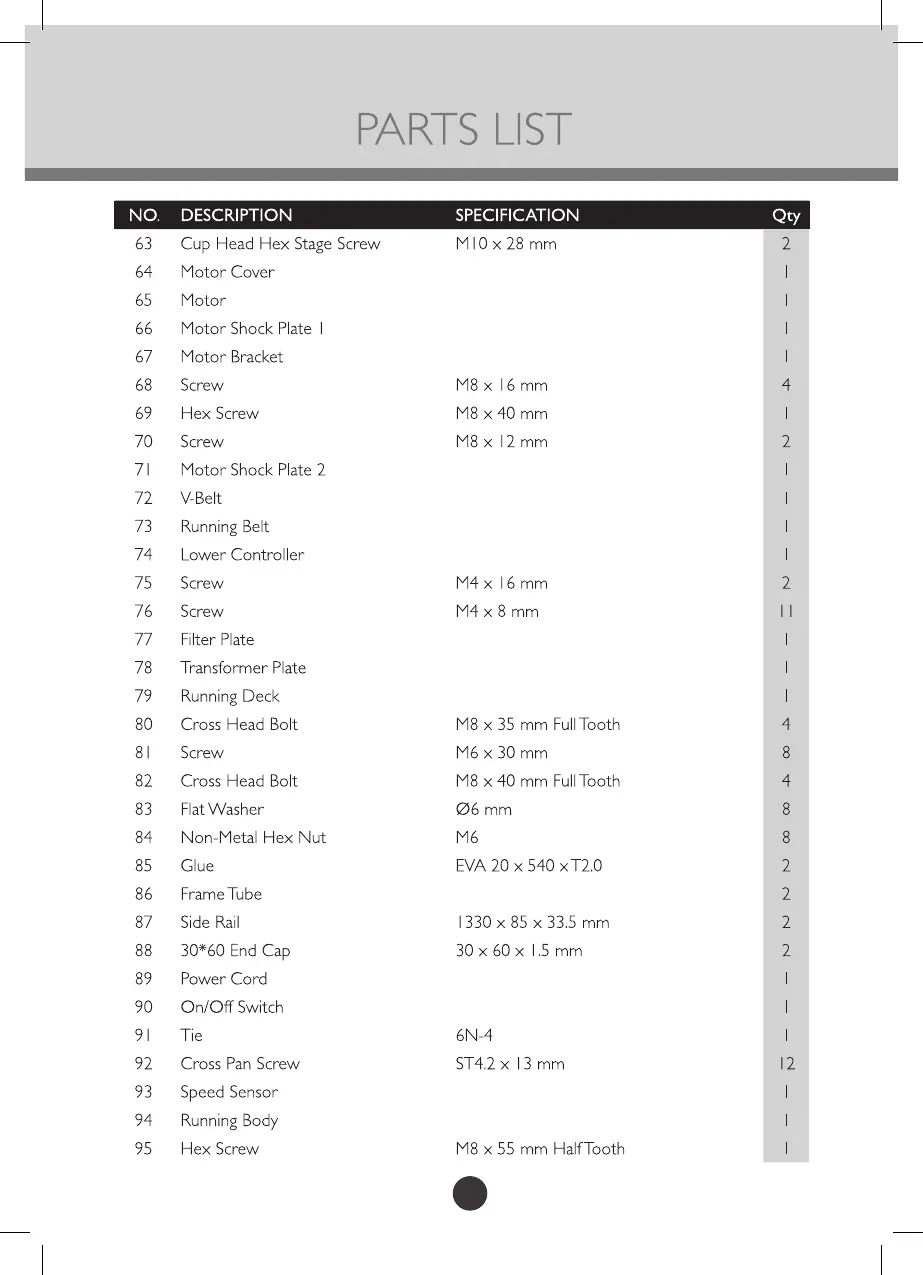

NO. DESCRIPTION SPECIFICATION Qty
63 Cup Head Hex Stage Screw M10 x 28 mm 2
64 Motor Cover 1
65 Motor 1
66 Motor Shock Plate 1 1
67 Motor Bracket 1
68 Screw M8 x 16 mm 4
69 Hex Screw M8 x 40 mm 1
70 Screw M8 x 12 mm 2
71 Motor Shock Plate 2 1
72 V-Belt 1
73 Running Belt 1
74 Lower Controller 1
75 Screw M4 x 16 mm 2
76 Screw M4 x 8 mm 11
77 Filter Plate 1
78 Transformer Plate 1
79 Running Deck 1
80 Cross Head Bolt M8 x 35 mm Full Tooth 4
81 Screw M6 x 30 mm 8
82 Cross Head Bolt M8 x 40 mm Full Tooth 4
83 Flat Washer Ø6 mm 8
84 Non-Metal Hex Nut M6 8
85 Glue EVA 20 x 540 x T2.0 2
86 Frame Tube 2
87 Side Rail 1330 x 85 x 33.5 mm 2
88 30*60 End Cap 30 x 60 x 1.5 mm 2
89 Power Cord 1
90 On/Off Switch 1
91 Tie 6N-4 1
92 Cross Pan Screw ST4.2 x 13 mm 12
93 Speed Sensor 1
94 Running Body
1
95
Hex Screw M8 x 55 mm Half Tooth
1
