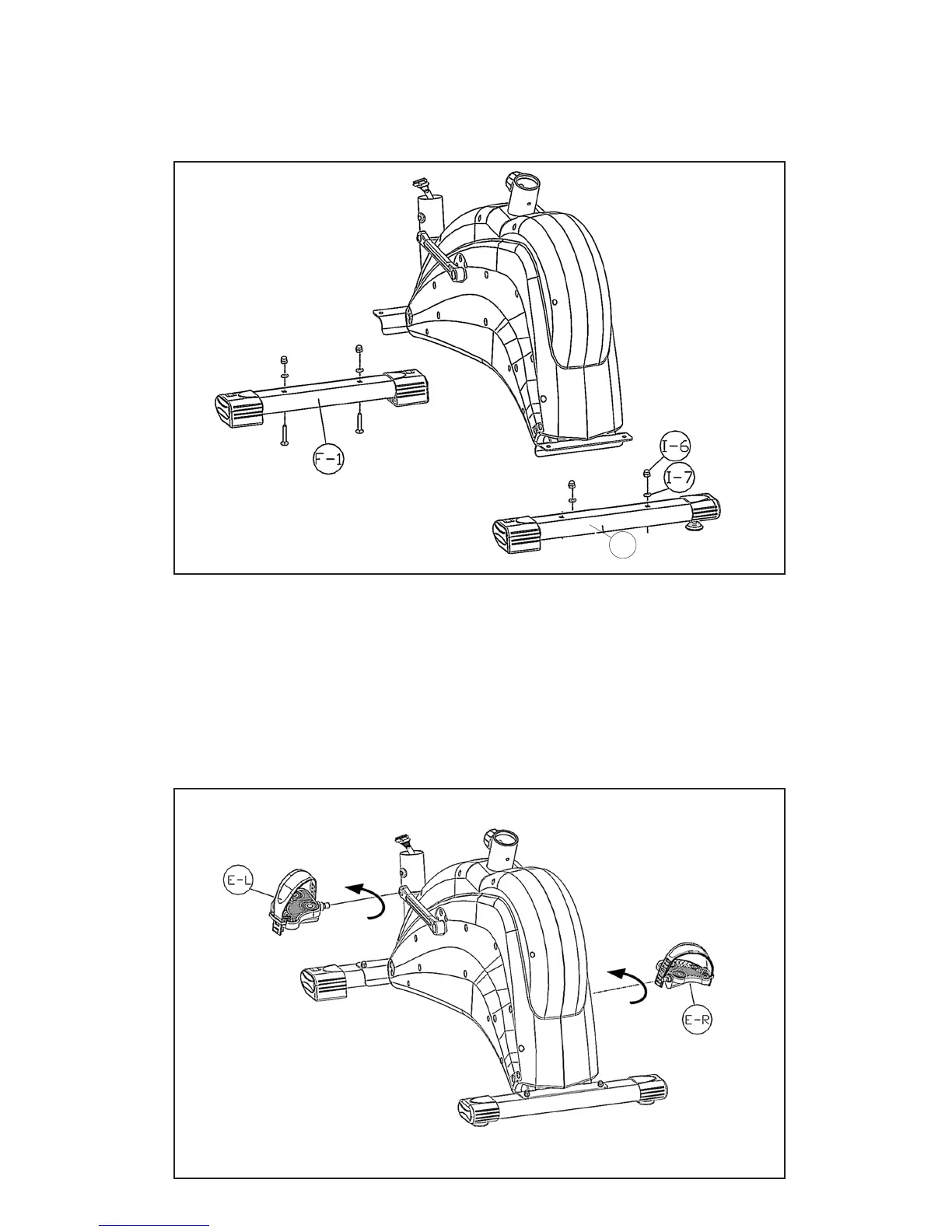

Step 1 Foot Tube Assembly
• Attach the Front Foot (F-1) and Rear Tube (G-1) to the front and back brackets of the mainframe
respectively using 4 Carriage Bolts (I-8), 4 Washers (I-7) and 4 Nuts (I-6).
Step 2 - Pedal Assembly
• Attach the Left Pedal (E-L) onto the Left Crank (D-17 L), and the Right Pedal (E-R) onto the Right Crank
(D-17 R) using a screwdriver.
Note: Screw the left pedal’s spindle anti-clockwise and the right pedal’s spindle clockwise to tighten
(reverse this procedure to loosen). Use a wrench (or screwdriver) to tighten the two spindles properly.
1064M-5
