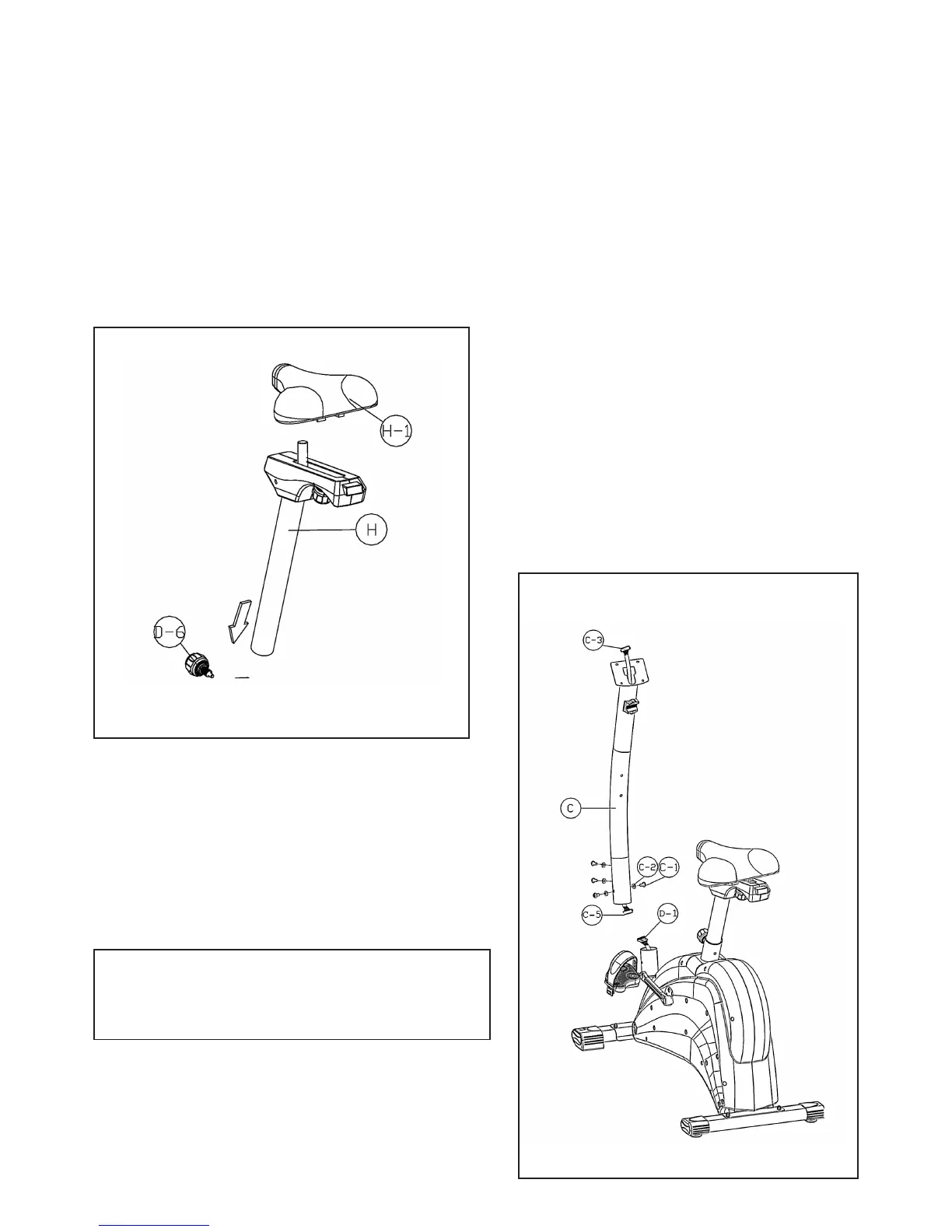

Step 3 - Seat Tube Assembly
• Unscrew the Height-adjusting Spring Knob (D-6) a little bit. Then pull the cap outward, the spindle of the
Spring Knob (D-6) will be withdrawn from the reception tube. Insert the Seat Post (H) into the Reception
Tube of the mainframe, through the Plastic Sleeve, which is pre-inserted into the Reception Tube. Tighten the
Spring Knob (D-6) when the Seat Post (H) is in position.
Note: If you cannot insert the Seat Post (H) into the Reception Tube of the mainframe after you have pulled
out the cap, please unscrew the Spring Knob (D-6) a little more until it allows the Seat Post to slide in.
• Attach the Seat (H-1) to the Seat Post (H)
Step 4 - Handlebar Post Assembly
• Connect the Upper Computer Cable (C5) to the Lower
Computer Cable (D-1). Now insert the
Handlebar Post (C) into the Mainframe, securing it with
4 Screws (C-1) and 4 Curved Washers (C-2).
CAUTION:
Ensure that cables are not damaged during
assembly or when tightening screws
To Next Page
