Trojan VERTIGO 250 - Page 17

10211-17

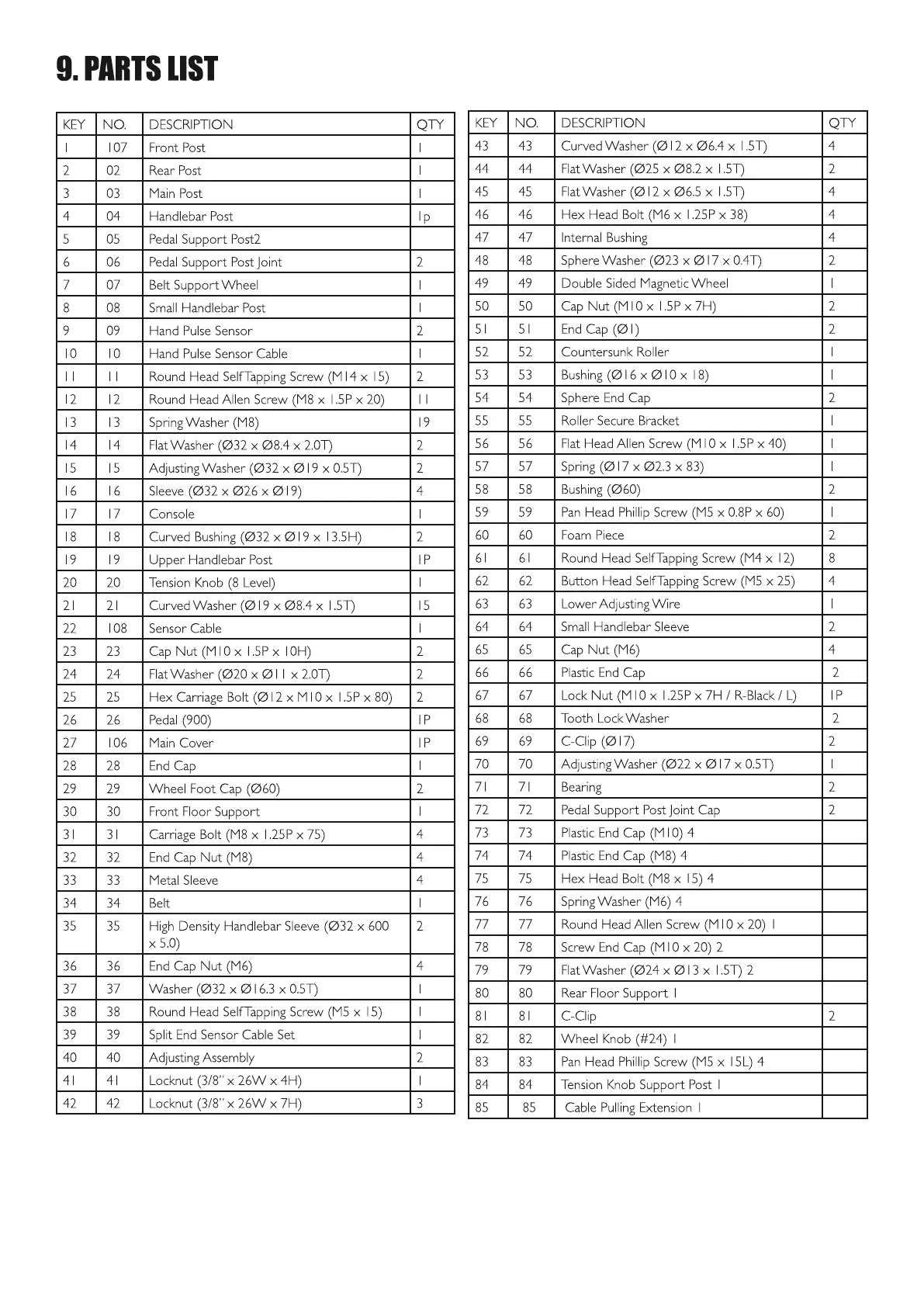

KEY NO. DESCRIPTION QTY
1 107 Front Post 1
2 02 Rear Post 1
3 03 Main Post 1
4 04 Handlebar Post 1p
5 05 Pedal Support Post2
6 06 Pedal Support Post Joint 2
7 07 Belt Support Wheel 1
8 08 Small Handlebar Post 1
9 09 Hand Pulse Sensor 2
10 10 Hand Pulse Sensor Cable 1
11 11 Round Head Self Tapping Screw (M14 x 15) 2
12 12 Round Head Allen Screw (M8 x 1.5P x 20) 11
13 13 Spring Washer (M8) 19
14 14 Flat Washer (Ø32 x Ø8.4 x 2.0T) 2
15 15 Adjusting Washer (Ø32 x Ø19 x 0.5T) 2
16 16 Sleeve (Ø32 x Ø26 x Ø19) 4
17 17 Console 1
18 18 Curved Bushing (Ø32 x Ø19 x 13.5H) 2
19 19 Upper Handlebar Post 1P
20 20 Tension Knob (8 Level) 1
21 21 Curved Washer (Ø19 x Ø8.4 x 1.5T) 15
22 108 Sensor Cable 1
23 23 Cap Nut (M10 x 1.5P x 10H) 2
24 24 Flat Washer (Ø20 x Ø11 x 2.0T) 2
25 25 Hex Carriage Bolt (Ø12 x M10 x 1.5P x 80) 2
26 26 Pedal (900) 1P
27 106 Main Cover 1P
28 28 End Cap 1
29 29 Wheel Foot Cap (Ø60) 2
30 30 Front Floor Support 1
31 31 Carriage Bolt (M8 x 1.25P x 75) 4
32 32 End Cap Nut (M8) 4
33 33 Metal Sleeve 4
34 34 Belt 1
35 35 High Density Handlebar Sleeve (Ø32 x 600
x 5.0)
2
36 36 End Cap Nut (M6) 4
37 37 Washer (Ø32 x Ø16.3 x 0.5T) 1
38 38 Round Head Self Tapping Screw (M5 x 15) 1
39 39 Split End Sensor Cable Set 1
40 40 Adjusting Assembly 2
41 41 Locknut (3/8” x 26W x 4H) 1
42 42 Locknut (3/8” x 26W x 7H) 3
KEY NO. DESCRIPTION QTY
43 43 Curved Washer (Ø12 x Ø6.4 x 1.5T) 4
44 44 Flat Washer (Ø25 x Ø8.2 x 1.5T) 2
45 45 Flat Washer (Ø12 x Ø6.5 x 1.5T) 4
46 46 Hex Head Bolt (M6 x 1.25P x 38) 4
47 47 Internal Bushing 4
48 48 Sphere Washer (Ø23 x Ø17 x 0.4T) 2
49 49 Double Sided Magnetic Wheel 1
50 50 Cap Nut (M10 x 1.5P x 7H) 2
51 51 End Cap (Ø1) 2
52 52 Countersunk Roller 1
53 53 Bushing (Ø16 x Ø10 x 18) 1
54 54 Sphere End Cap 2
55 55 Roller Secure Bracket 1
56 56 Flat Head Allen Screw (M10 x 1.5P x 40) 1
57 57 Spring (Ø17 x Ø2.3 x 83) 1
58 58 Bushing (Ø60) 2
59 59 Pan Head Phillip Screw (M5 x 0.8P x 60) 1
60 60 Foam Piece 2
61 61 Round Head Self Tapping Screw (M4 x 12) 8
62 62 Button Head Self Tapping Screw (M5 x 25) 4
63 63 Lower Adjusting Wire 1
64 64 Small Handlebar Sleeve 2
65 65 Cap Nut (M6) 4
66 66 Plastic End Cap 2
67 67 Lock Nut (M10 x 1.25P x 7H / R-Black / L) 1P
68 68 Tooth Lock Washer 2
69 69 C-Clip (Ø17) 2
70 70 Adjusting Washer (Ø22 x Ø17 x 0.5T) 1
71 71 Bearing 2
72 72 Pedal Support Post Joint Cap 2
73 73 Plastic End Cap (M10) 4
74 74 Plastic End Cap (M8) 4
75 75 Hex Head Bolt (M8 x 15) 4
76 76
Spring Washer (M6) 4
77 77 Round Head Allen Screw (M10 x 20) 1
78 78 Screw End Cap (M10 x 20) 2
79 79 Flat Washer (Ø24 x Ø13 x 1.5T) 2
80 80 Rear Floor Support 1
81 81 C-Clip 2
82 82 Wheel Knob (#24) 1
83 83 Pan Head Phillip Screw (M5 x 15L) 4
84 84 Tension Knob Support Post 1
85 85 Cable Pulling Extension 1
