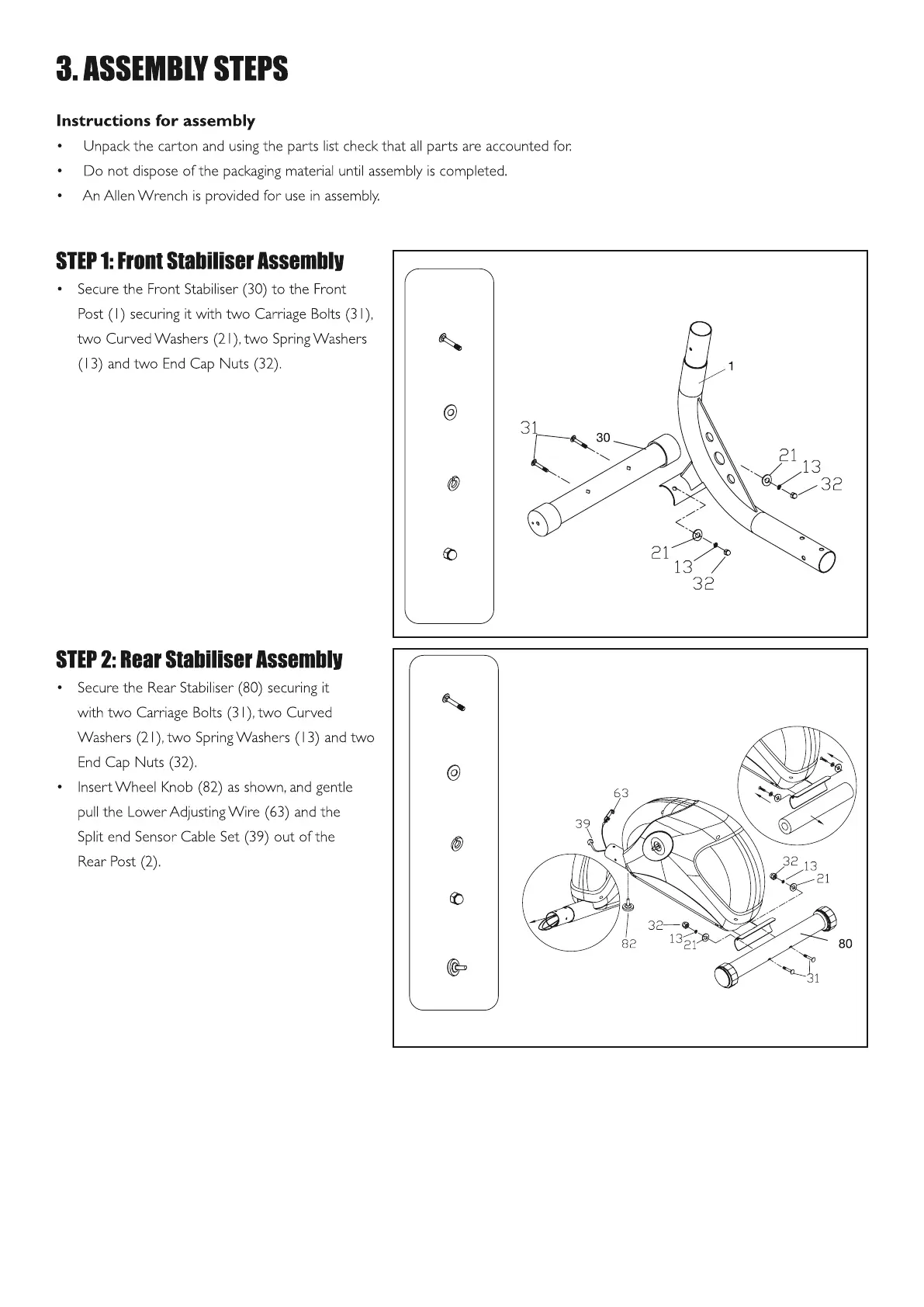

Trojan VERTIGO 250 - Assembly Steps; Step 1: Front Stabiliser Assembly; Step 2: Rear Stabiliser Assembly

10211-6
Part No. 21 x 2
Curved Washer (Ø19 x Ø8.4 x 1.5T)
Part No. 13 x 2
Spring Washer (M8)
Fixings
Part No. 32 x 2
End Cap Nut (M8)
Part No. 31 x 2
Carriage Bolt (M8 x 1.25P x 75)
Part No. 13 x 2
Spring Washer (M8)
Fixings
Part No. 21 x 2
Curved Washer (Ø19 x Ø8.4 x 1.5T)
Part No. 31 x 2
Carriage Bolt (M8 x 1.25P x 75)
Part No. 32 x 2
End Cap Nut (M8)
Part No. 82 x 1
Wheel Knob (M8 x 1.25P x 24)
