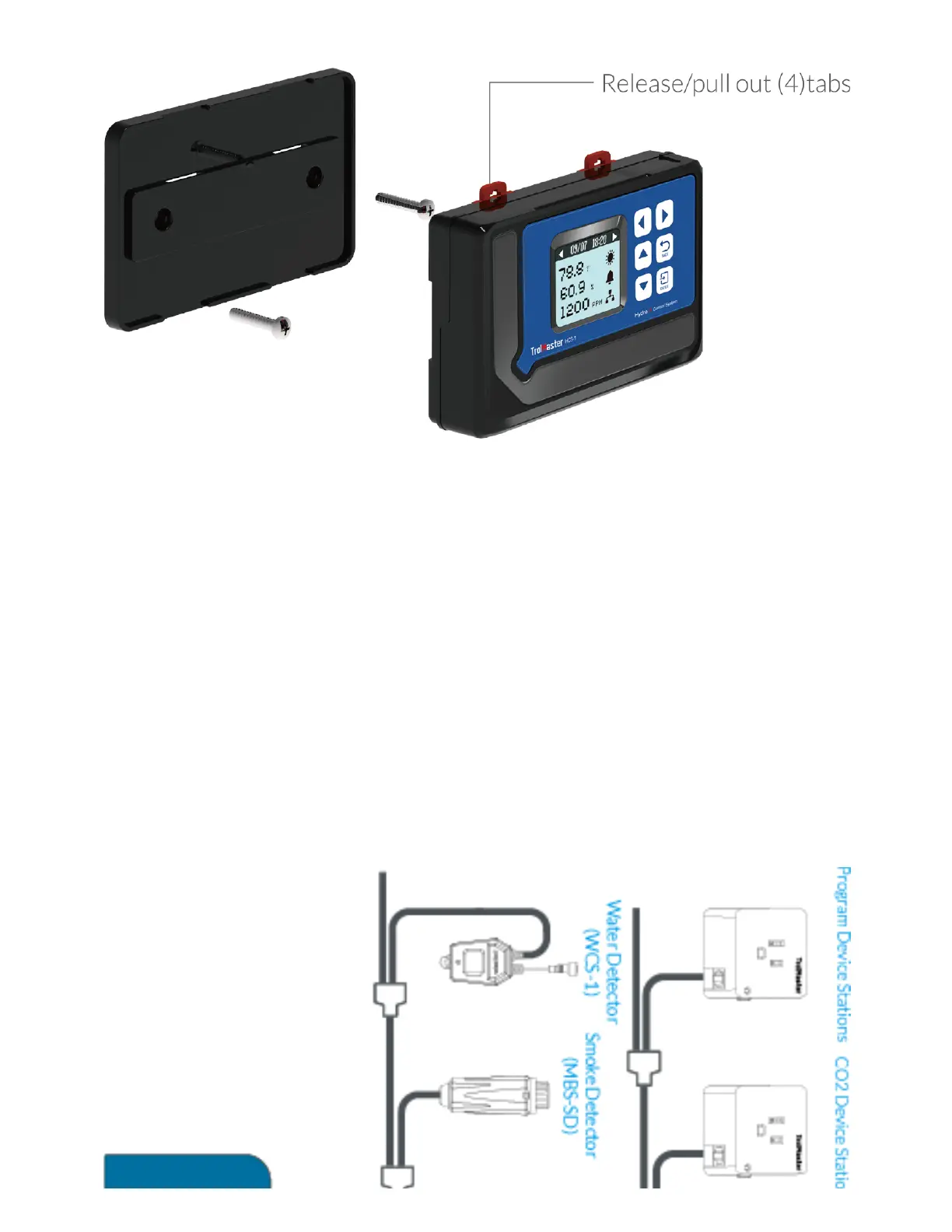

Determine where to locate the main controller. The controller comes with a
simple to use DIN type bracket. Pull the 4 tabs outward to release the bracket
from the unit, mount the bracket to a wall or surface, place the unit back on the
bracket and press the 4 tabs back in to lock the unit in place. The
interconnecting RJ12 communication cables are available in different lengths,
select the correct length for your application. The HCS-1 Hydro-X Control
System is supplied with a 4ft and 16ft cable. These interconnecting RJ12 cables
are also available in lengths of 25ft and 50ft. Select the correct length for your
application.
CONNECTIONS
