Chapter 3: Locations 1703CC, 1903CC, 2103CC • Owner’s Manual Supplement
Component Locations
12-Volt Accessory Outlet:
• 1703: At the helm on the gauge/switch panel (refer to page 13 for location view).
• 1903: At the helm on the gauge/switch panel (refer to page 14 for location view).
• 2103: At the helm on the gauge/switch panel (refer to page 15 for location view).
All Around Light Socket:
• 1703-1903: On the aft starboard deck (refer to deck views on pages 10 & 11).
• 2103: On the upper grab rail at the helm (refer to page 15 for location view).
Battery and Battery Switch:
• 1703 & 1903: Access is under the aft starboard seat (refer to the Battery System views in Chapter 10:
Electrical System).
• 2103: Access is under the helm seat (refer to the Battery System view in Chapter 10: Electrical System).
Bilge Pump(s):
• 1703: Bilge pump access is through the motorwell deck plate (refer to page 10 for location view).
• 1903: Bilge pump access is through the motorwell deck plate (refer to page 11 for location view).
• 2103: Aft bilge pump access is through the motorwell deck plate
(refer to page 12 for location view). Forward bilge pump access is
through the deck plate in the portable head compartment.
Engine Circuit Breaker: On the engine (refer to the Engine Owner’s manual).

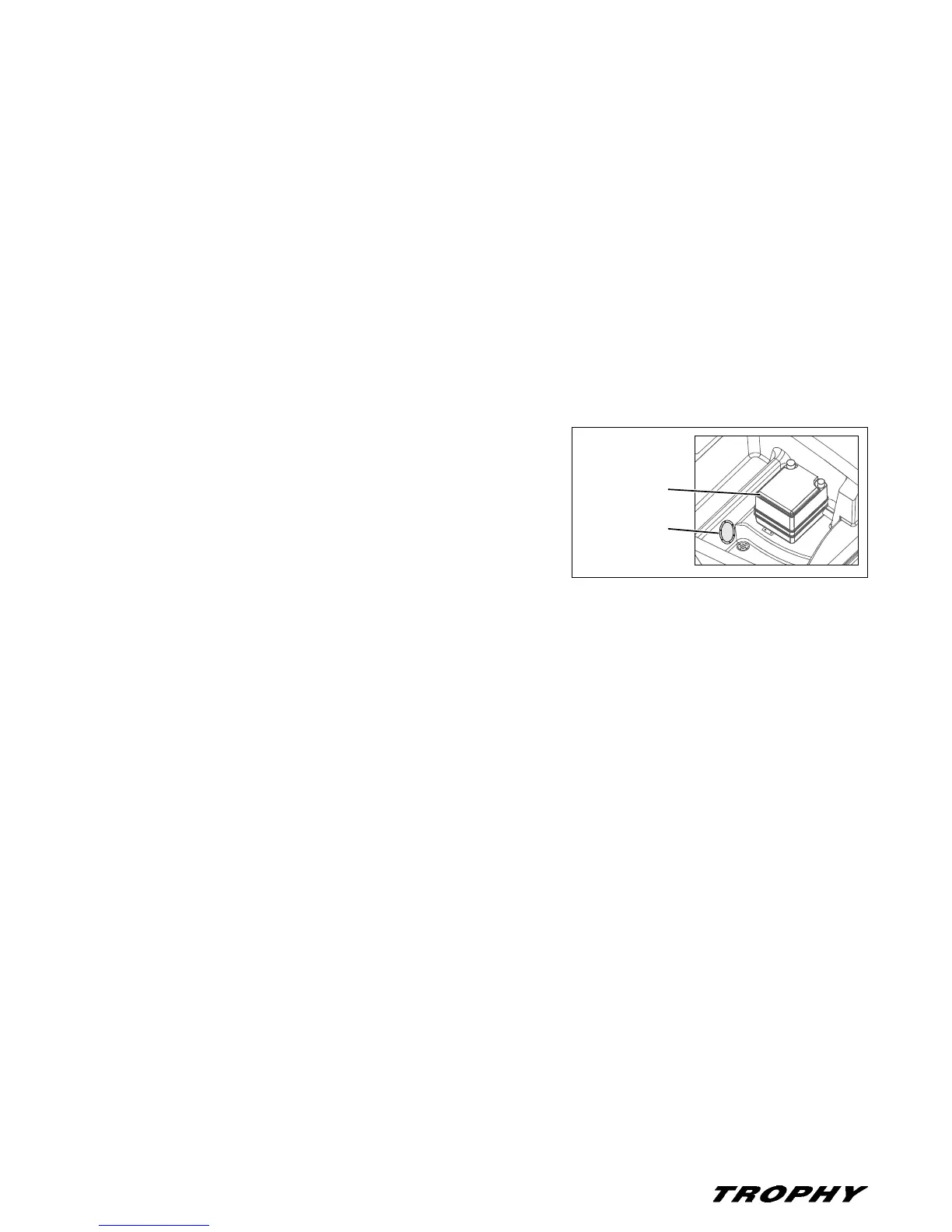

DECK PLATE
PORTABLE
HEAD
FORWARD BILGE
PUMP ACCESS
