Trophy 1703CC - 2103 Baitwell System

37
1703CC, 1903CC, 2103CC • Owner’s Manual Supplement Chapter 6: Plumbing

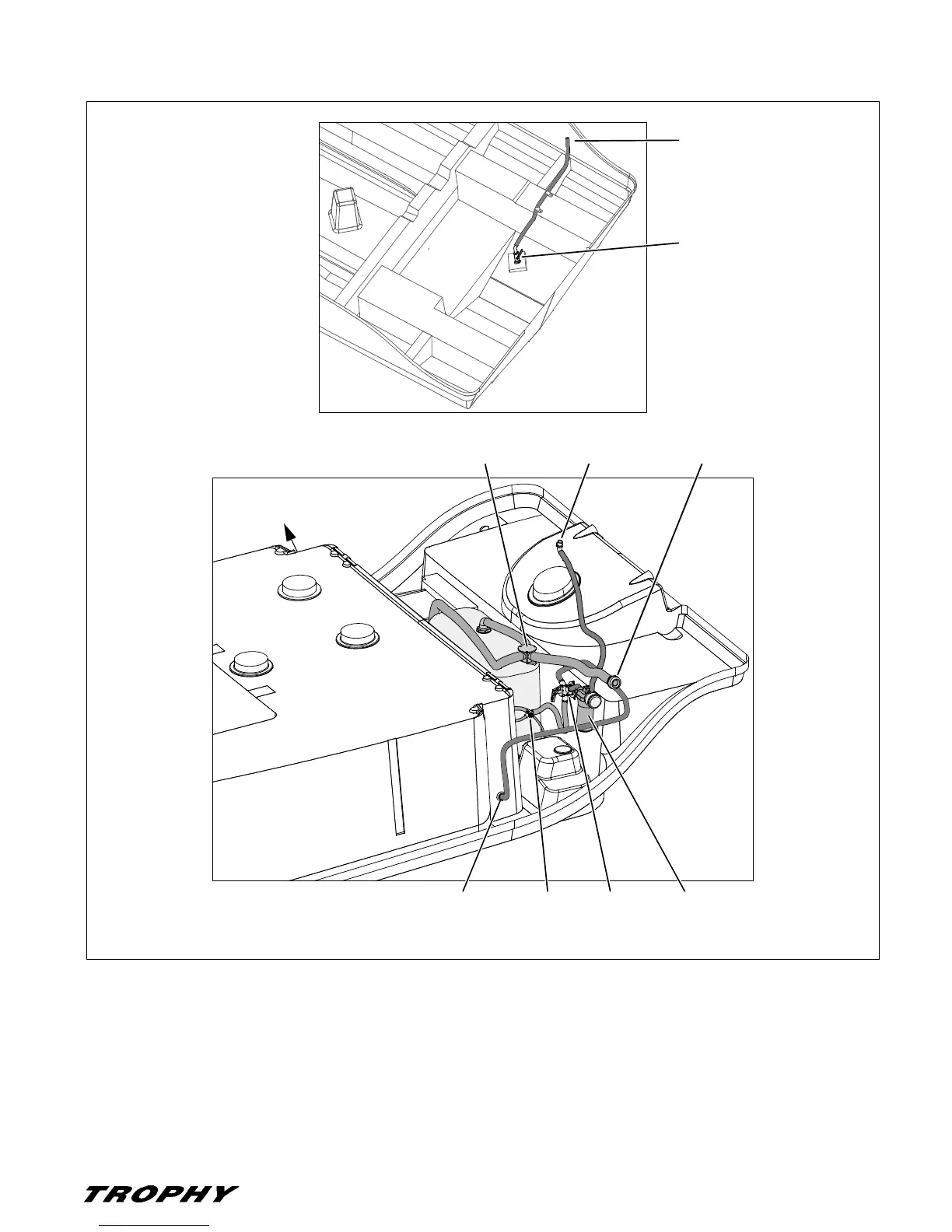

2103 Baitwell System
PICKUP PUMP
TO PICKUP PUMP
SEAWATER PICKUP
& SEACOCK
Y-VALVE
NOTE: VIEW IS UNDERSIDE OF DECK
PORT
BAITWELL
DRAIN
SEAWATER
WASHDOWN
(IF EQUIPPED)
AERATOR
CONTROL
VALVE
FROM SEAWATER
SEACOCK
DRAIN CONTROL
Y-VALVE
