Chapter 6: Plumbing 1703CC, 1903CC, 2103CC • Owner’s Manual Supplement
Filling & Using the 2103 Baitwell
1. Turn the baitwell & washdown y-valve clockwise to the baitwell position.
2. Open the seawater intake seacock.
3. Turn the drain control y-valve to the fill position
4. On the main switch panel, turn On the baitwell switch.
• To completely drain the baitwell turn the drain control y-valve to the drain position.
The tank should now be filling with water. If water is not pumping into the tank, possible causes are:
• A collapsed hose or clogging debris in the system.
• The y-valve is turned to the wrong position.
• The seacock is Closed.
• The baitwell fuse is blown.
Aeration Tips
The level of aeration is controlled by the aerator control valve.
• In clean ocean water little or no aeration is needed.
• In brackish back waters a higher level of aeration is needed.

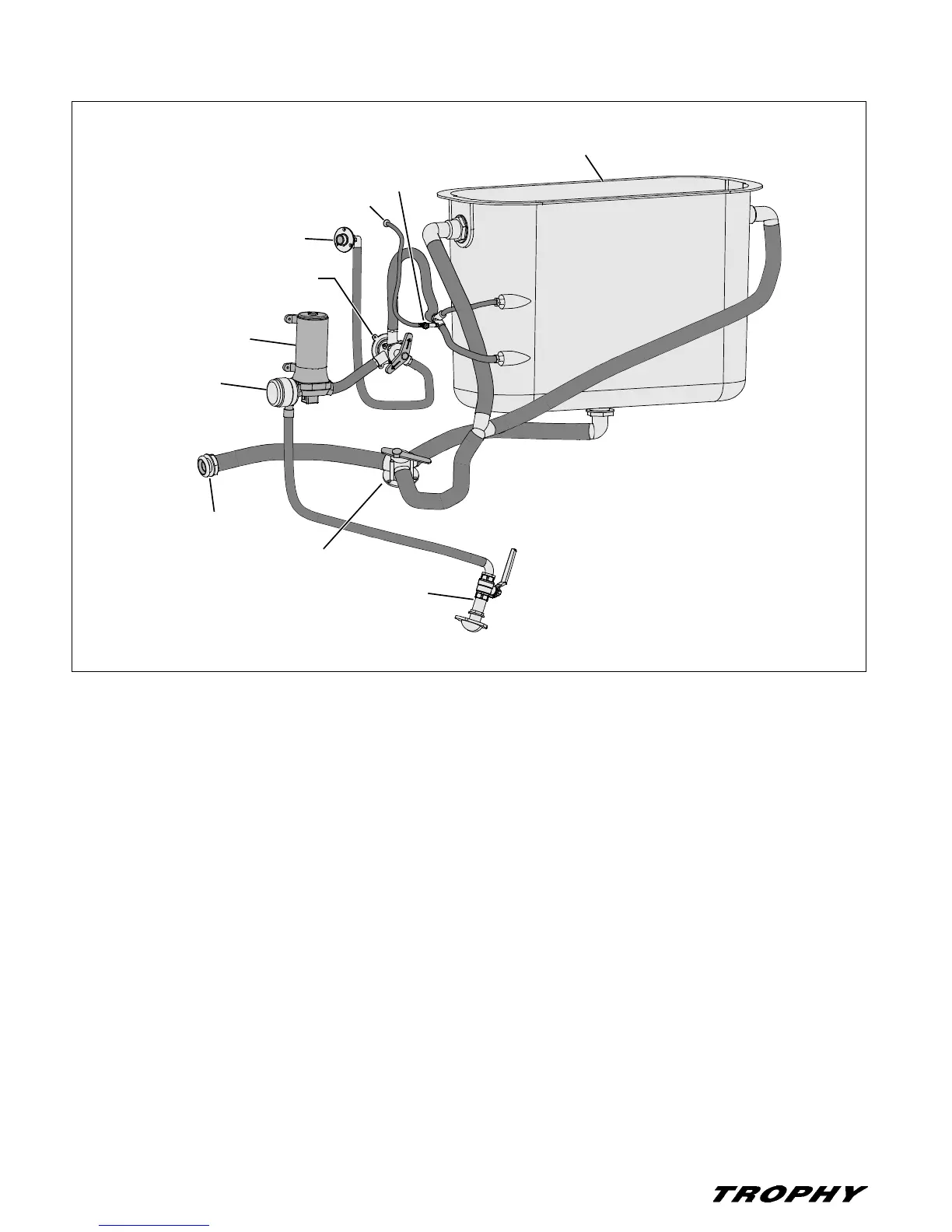

TANK
AERATOR VENT
DECK FITTING
BAITWELL &
SEAWATER
PICKUP PUMP
SEAWATER
FILTER
AERATOR
CONTROL
VALVE
SEAWATER
SEACOCK
DRAIN CONTROL
Y-VALVE
DRAIN
THRU-HULL
WASHDOWN
DECK FITTING
WASHDOWN Y-VALVE
