Chapter 10: Electrical System 1703CC, 1903CC, 2103CC • Owner’s Manual Supplement
Electrical Routings

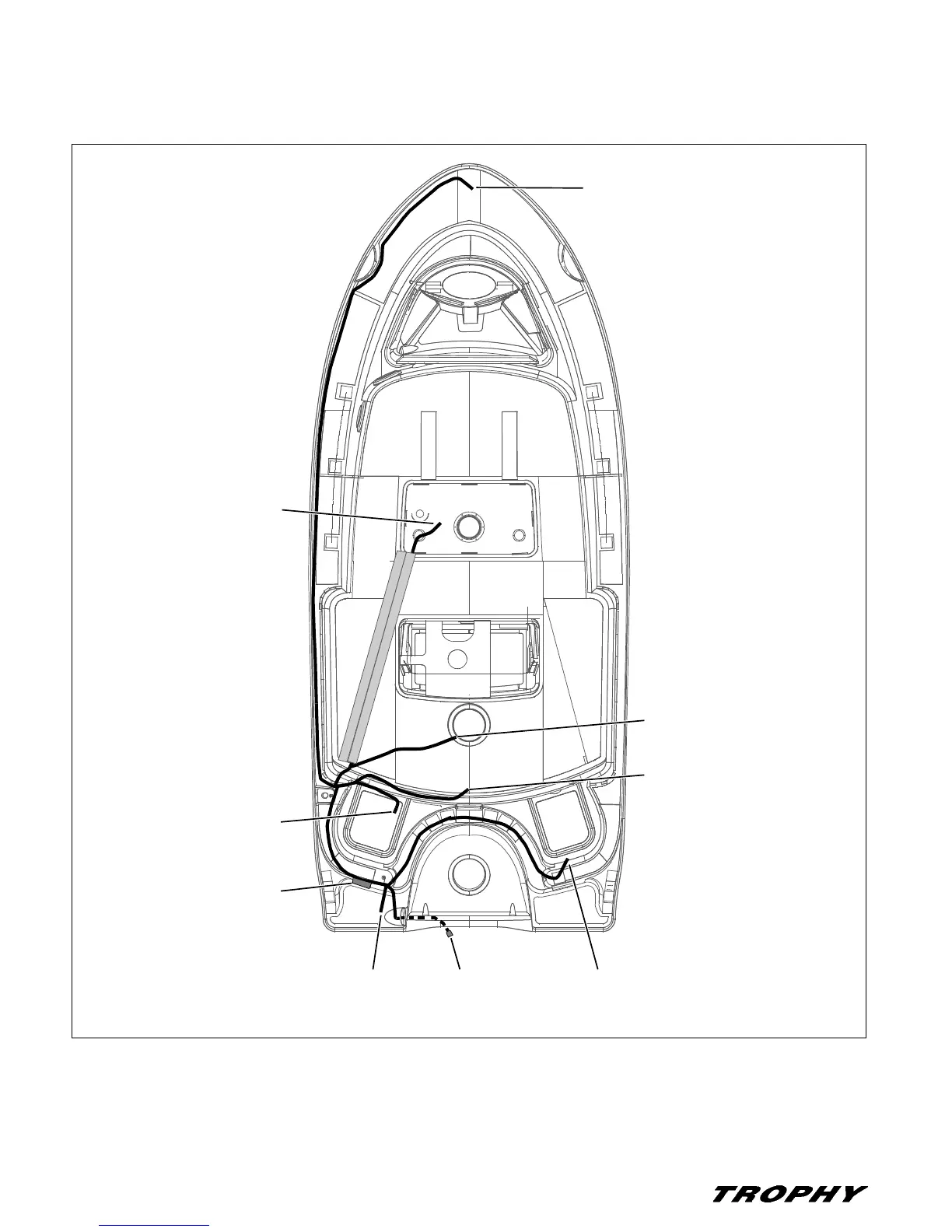

1703 Deck Electrical Harness
NOTE: VIEW IS UNDERSIDE OF DECK
NAVIGATION
LIGHT
DASH
ALL AROUND
LIGHT
BAITWELL
PUMP
FUEL
TANK
BILGE
PUMP
BATTERY
SWITCH
ENGINE
PLUG
GROUNDING
BLOCK
