46
Chapter 10: Electrical System 1703CC, 1903CC, 2103CC • Owner’s Manual Supplement

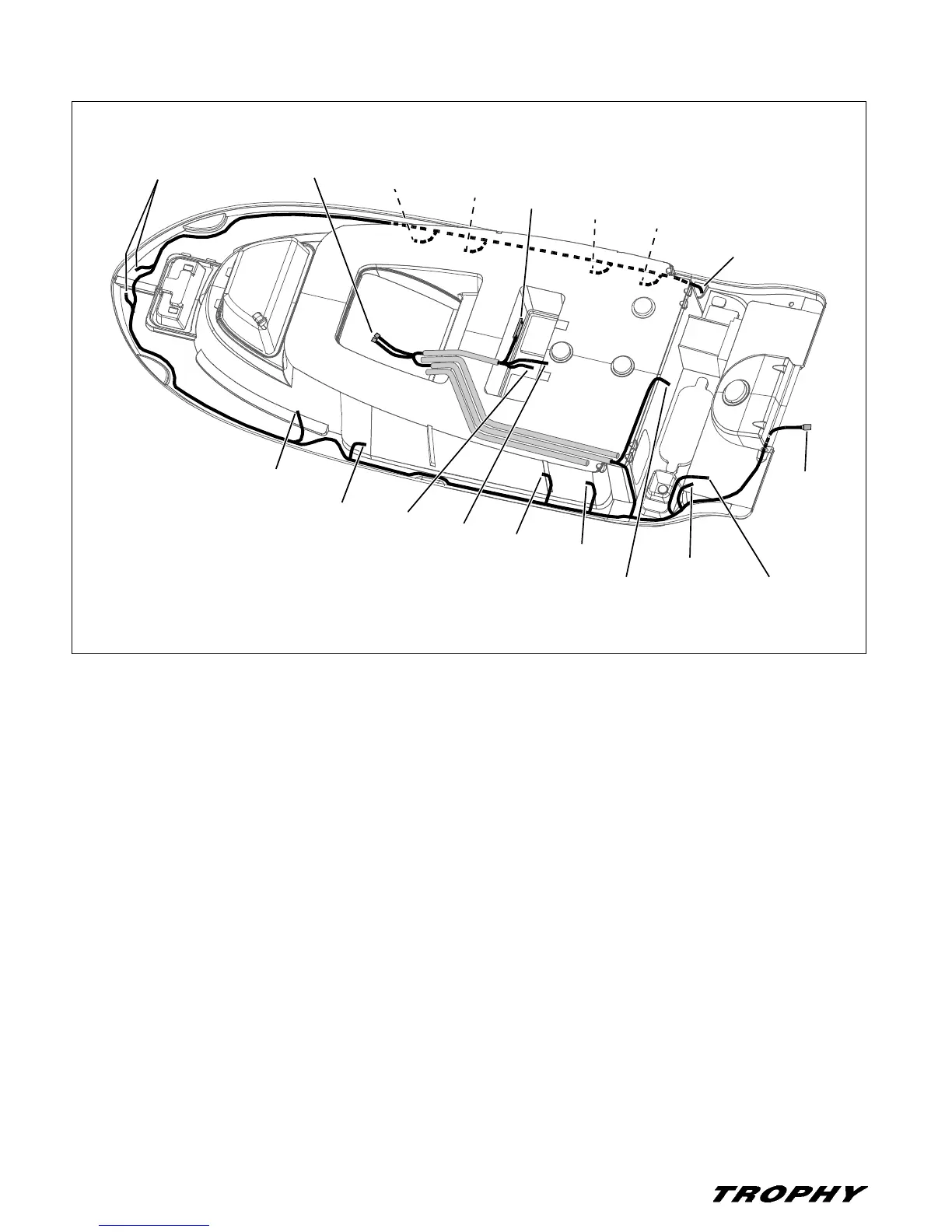

2103 Deck Electrical Harness
NOTE: VIEW IS UNDERSIDE OF DECK
TO DASH
CONSOLE
BUSS
BAR
FUEL FILL
DECK FITTING
COURTESY
LIGHT
GROUND
COURTESY
LIGHT
NAVIGATION
LIGHTS
COURTESY
LIGHTS
SPEAKER
(IF EQUIPPED)
SPEAKER
(IF EQUIPPED)
SPEAKER
(IF EQUIPPED)
SPEAKER
(IF EQUIPPED)
BAITWELL
PUMP
FUEL
TANK
FORWARD
BILGE PUMP
COURTESY
LIGHTS
FRESH WATER PUMP
(IF EQUIPPED)
ENGINE
PLUG
AFT
BILGE PUMP
