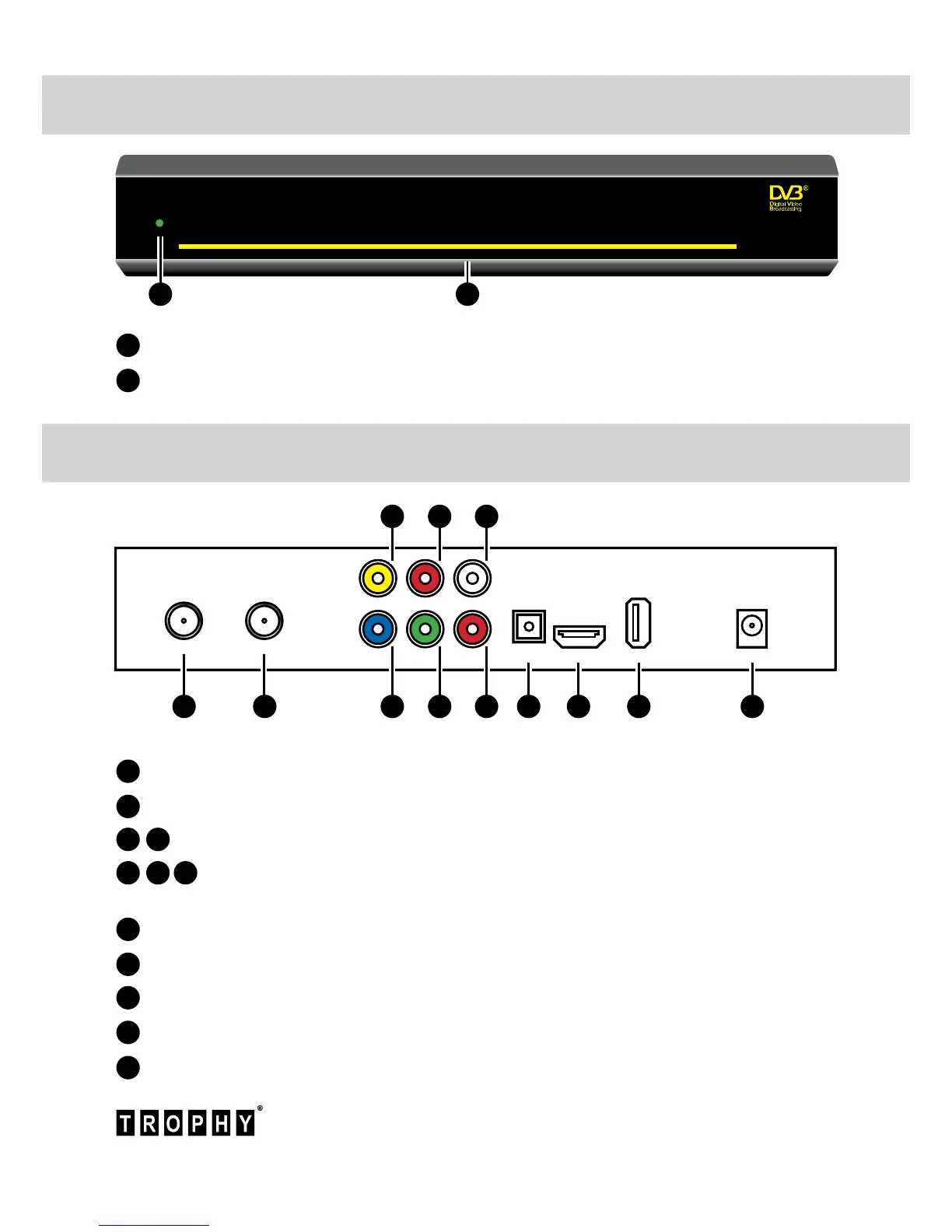

Front Panel
Back Panel
1 - LED indicator of power / standby
2 - Infrared port to receive signal from the remote control.
1 – LNB input
2 – LOOP output
3 , 5 – Left/Right audio channel output
4 , 6 , 8 – In Cb/Y/Cr mode – component signal outputs.
In RGB – Blue/Green/Red signal outputs
7 – Composite “Video” output. In RGB mode – synchronization signal
9 – Optical digital audio output
10 – HDMI output
11 – USB connector
12 – DC +12V connector
1 2
2 4 6 81
3 5 7
9 10 11 12
