Trotec BE44 User Manual

8 EN
clamp meter BE44
3. Repeatedly press the measuring range button(33) to select
the desired measuring range.
ð The resolution in the measurement value display(24)
will change accordingly.
4. Tap the desired measuring points of the electric circuit
with the test probes(11) at the measuring cables with
correct polarity.
ð The measured value will be displayed in the
measurement value display(24).

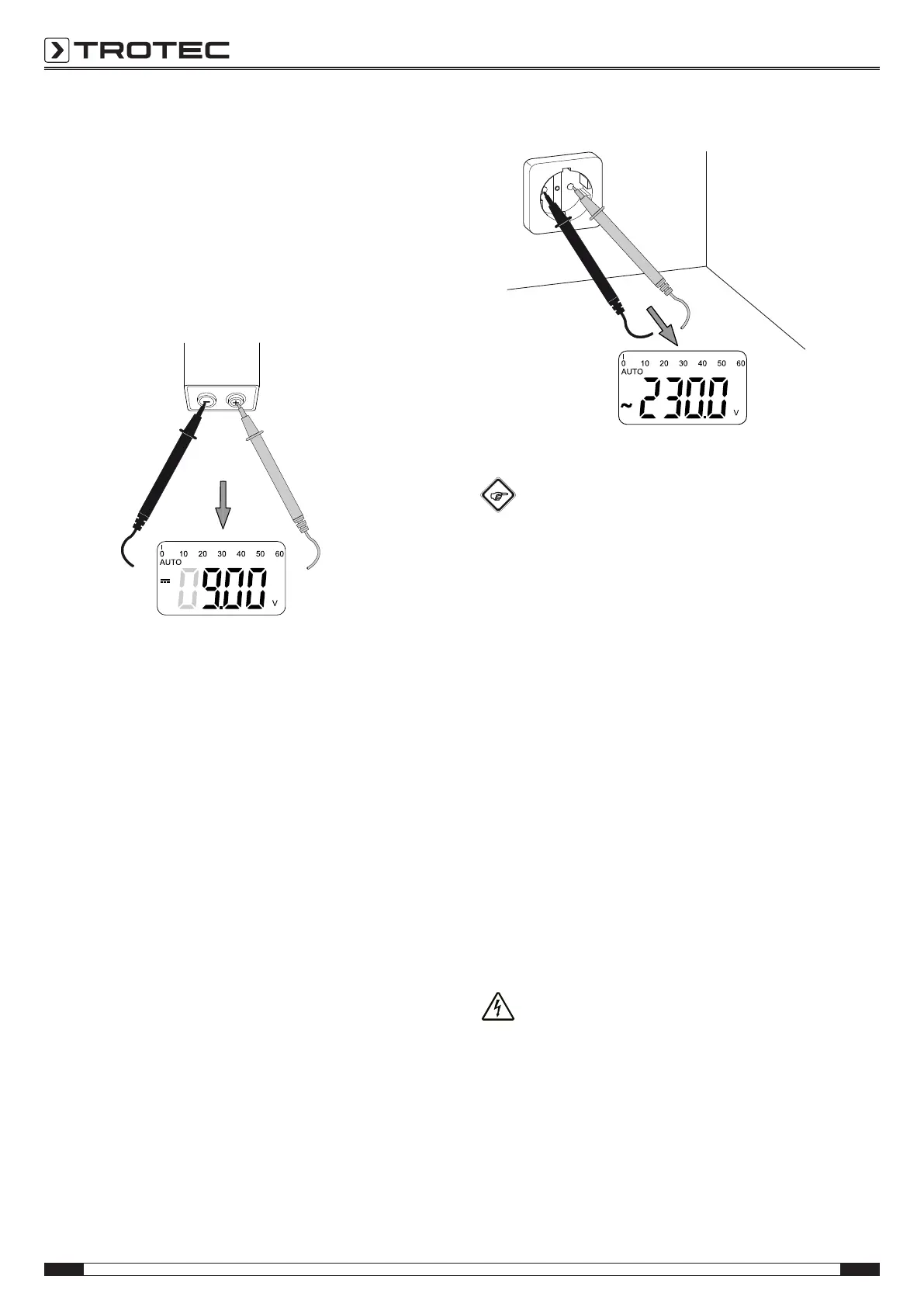

Example:
9 V
Please proceed as follows to measure the ACvoltage:
1. Connect the black measuring cable(14) to the
COMconnection(7) and the red measuring cable(13) to
the Input connection(6).
2. Turn the rotary switch(3) to position36.
3. Press the function button(34).
ð The alternating current icon is displayed in the
alternating current indication(26) on the display.
4. Repeatedly press the measuring range button(33) to select
the desired measuring range.
ð The resolution in the measurement value display(24)
will change accordingly.
5. Tap the desired measuring points of the electric circuit
with the test probes(11) at the measuring cables.
ð The measured value will be displayed in the
measurement value display(24).
Example:
Non-contact voltage detection
Info
Observe the specifications in the technical data.
Even if the device does not show any response, there
might still be a voltage outside the device's measuring
range.
Without contact the device detects whether alternating voltage
is present.
To do so, please proceed as follows:
1. Turn the rotary switch(3) to the NCVmeasurement
position(35).
ð The NCVsensor flashes briefly and the device emits an
acoustic signal.
2. Move the device clamp toward the object to be tested.
ð If the device detects an electrical field combined with an
alternating voltage, an acoustic signal will be emitted
repeatedly and the NCVsensor(10) flashes.
ð The stronger the measured electrical field, the more
frequently will the acoustic signal be emitted.
ð Depending on the strength of the measured electrical
field one to four segments will appear in the
measurement value display(24).
Current measurement
Warning of electrical voltage
Risk of electric shock and risk of injury!
• For current measurements align the conductor to be tested
in the centre of the clamp.
• When performing non-contact measurements, disconnect
the measuring cables from the device.
