Trotec BX09 User Manual

EN 5
energy cost measuring device BX09

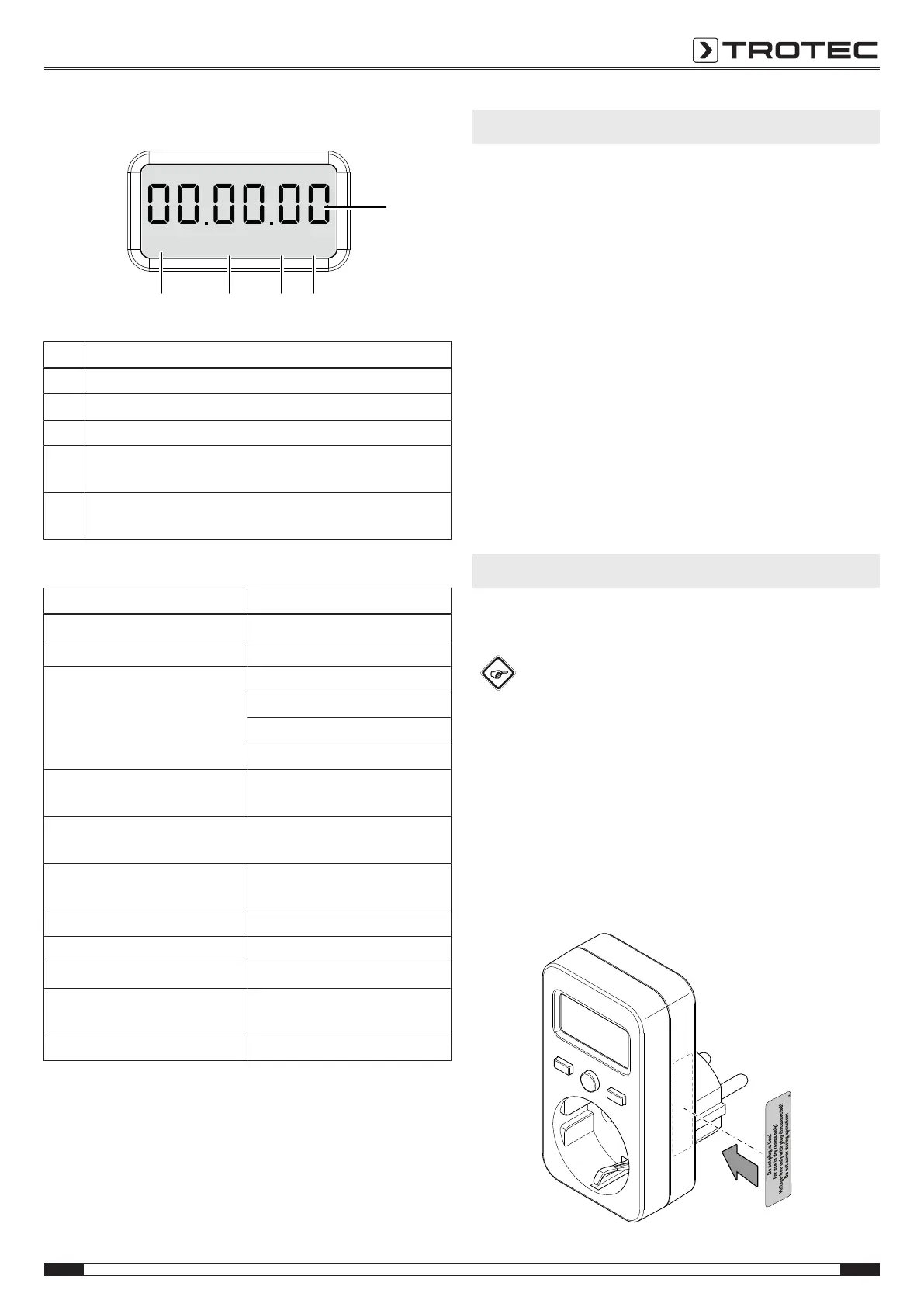

Display
COST / KWH
WPRICE KWH
7
891011
No. Designation
7 Measurement value display
8 KWH display – consumption indicated in kilowatt hours
9 W display – consumption indicated in watts
10 COST/KWH display – consumption indicated as costs per
kilowatt hours
11 PRICE display – consumption indicated as the overall
costs
Technical data
Parameter Value
Model BX09
Power supply 230VAC , 50/60Hz
Load, max. EU: 16 A, 3680 W
CH: 10 A, 2300 W
FR: 16 A, 3680 W
UK: 13 A, 2990 W
Measuring range resolution 0.1W
0.01kWh
Accuracy ±2% or ±2W (0–100W);
±2% (100–3680W)
Display range 0.00 to 9999.9kWh
0.00 to 9999 overall costs
Storage conditions 5°C to 40°C, <85%RH
Measuring circuit category CATII, 2500V
Type of protection IP20
Dimensions
(lengthx widthx height)
97 x 51x 75mm
Weight (packaging excluded) 100g
Scope of delivery
• 1x Energy cost measuring device BX09
• 1 x Quick guide
Transport and storage
Note
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.
Transport
When transporting the device, ensure dry conditions and and
protect the device from external influences e.g. by using a
suitable bag.
Storage
When the device is not being used, observe the following
storage conditions:
• dry and protected from frost and heat
• protected from dust and direct sunlight
• the storage temperature complies with the values specified
in the Technical data
Operation
Switching the device on
Info
Please note that moving from a cold area to a warm
area can lead to condensation forming on the device's
circuit board. This physical and unavoidable effect can
falsify the measurement. In this case, the display
shows either no measured values or they are incorrect.
Wait a few minutes until the device has become
adjusted to the changed conditions before carrying out
a measurement.
1. The device is supplied with a warning sign. Stick the
warning image in your local language onto the side of the
device prior to initial start-up.
