radiant heater IR 2005

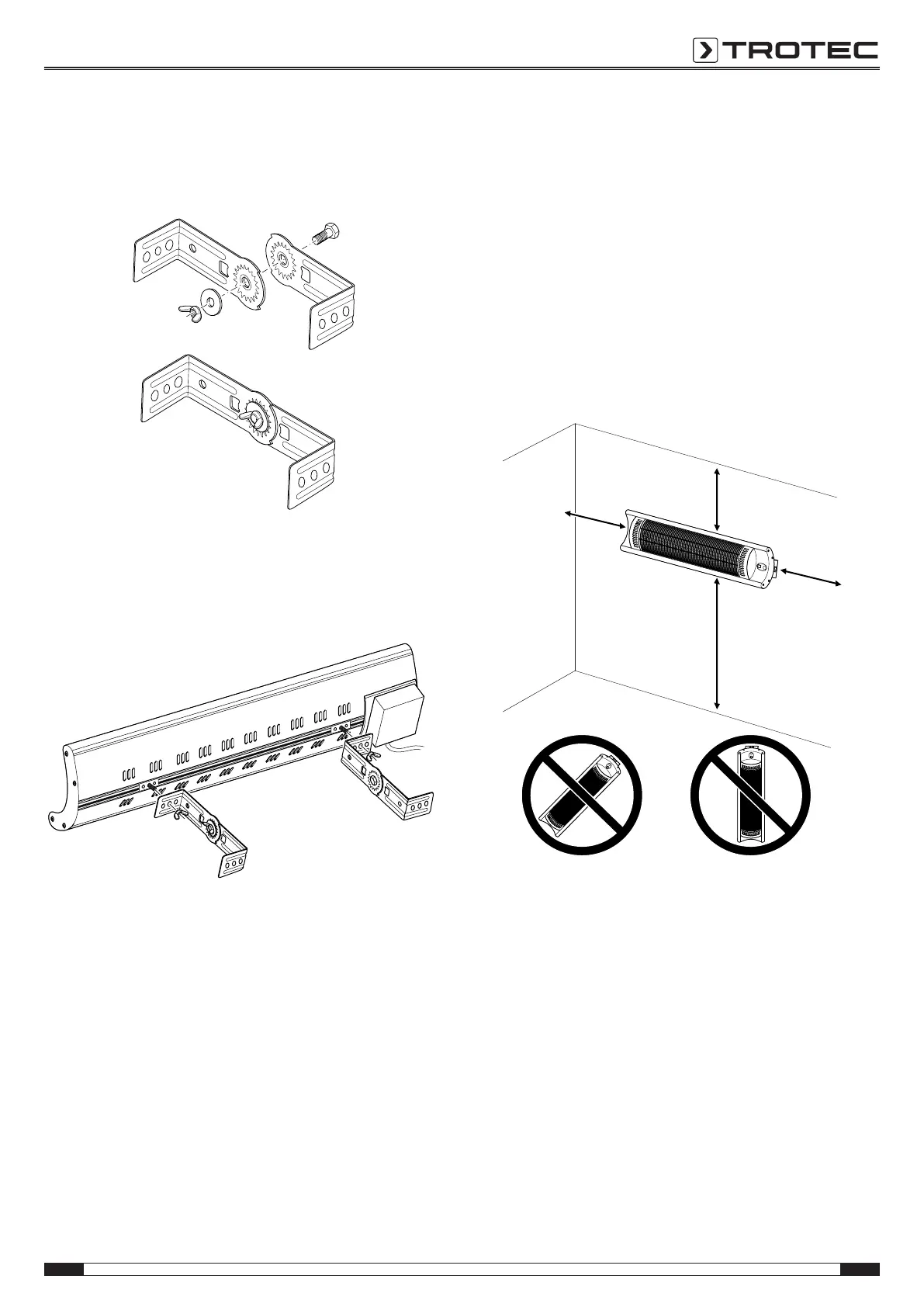

Mounting the wall holder and ceiling holder
ü Use tools suitable for the intended task.
1. Fasten two mounting brackets in each case using two
washers, one wing nut and one screw.
2. Fasten the mounting brackets to the two holders on the
back of the device using the wing nuts.
ð The wall bracket can be rotated to both sides
between30° and45°.
Installation
When installing the device, observe the minimum distances
from walls and other objects as described in the Technical data
chapter.
• Do not install the device directly behind a door.
• Never install the device in a way that it radiates directly
onto walls or other objects. Observe the minimum
distances from walls or other objects according to the
Technical data chapter.
• Only install the device in a horizontal position.
• Please note that the minimum distance to the front also
applies to objects mounted on the ceiling, e.g. fans, lamps
or sprinkler systems.
C
A
B
C
