EN 7
local air conditioner PAC 2000 E

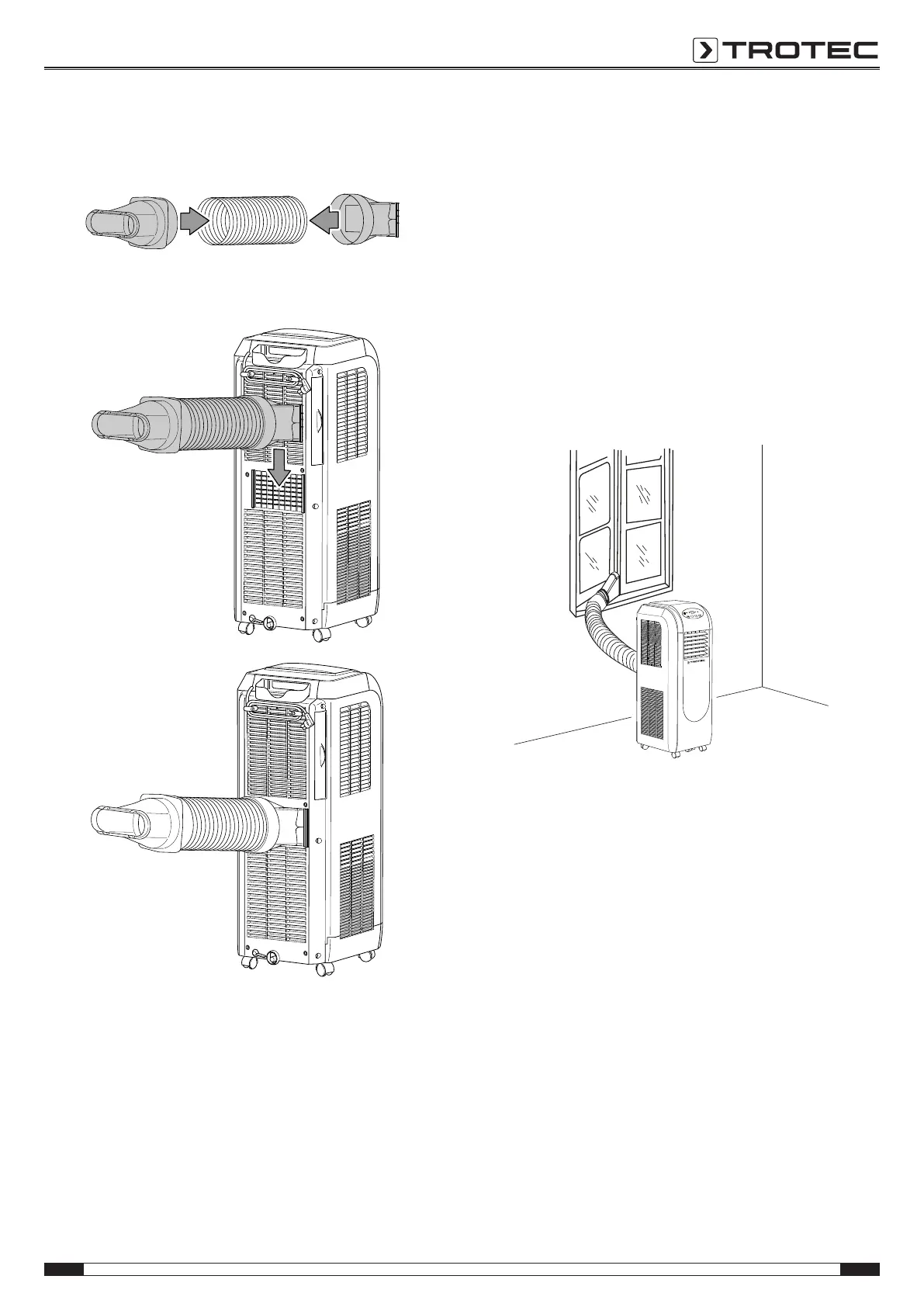

Connecting the exhaust air hose
1. Connect the hose adapter and the hose connector to one
end of the exhaust air hose each.
2. Connect the suitable end of the exhaust air hose to the
exhaust air hose connection(7) located at the device.
Discharging exhaust air
• The exhaust air coming from the device contains waste
heat from the room to be cooled. For this reason it is
recommended to discharge the exhaust air to the outside.
• The end of the exhaust air hose can be fed through the
open window. If required, secure the open window with
the corresponding means, so that the end of the exhaust
air hose cannot shift.
• The end of the exhaust air hose can also be hooked into a
tilted window.
For this purpose, we recommend using a window seal
(optional).
• Install the exhaust air hose inclined with the air direction.
Example with exhaust air hose:
