Trotec pac 2000 e - Operation

EN 9
local air conditioner PAC 2000 E
Operation
• Avoid open doors and windows.

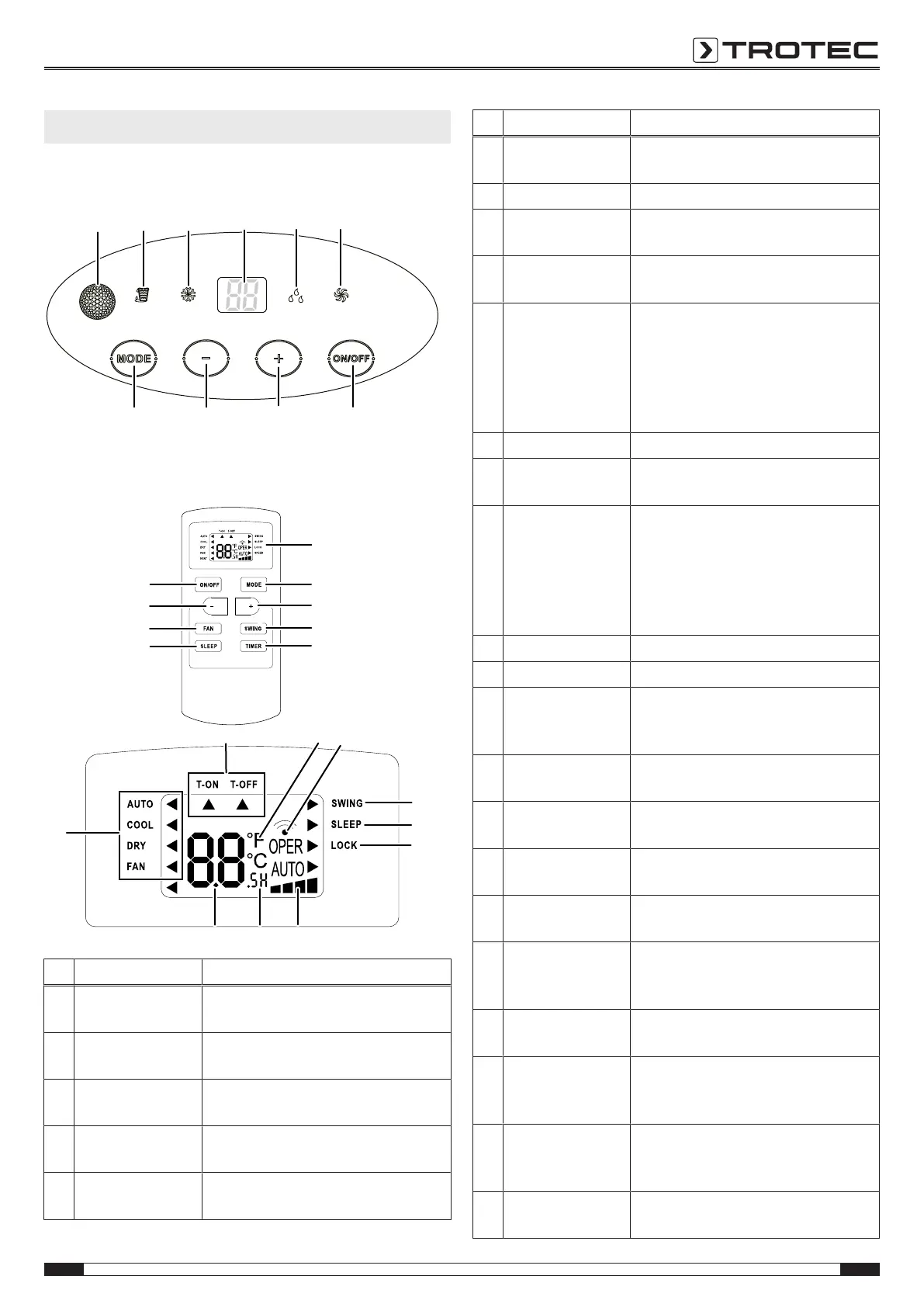

Operating elements
11
12
13
14
15 16
17
18
1920
Remote control
All settings of the device can also be made using the remote
control included in the scope of delivery.
21
20
18
22
23
24
25
19
17
26
27
28
32
34
35
33
31
30
29
No. Designation Meaning
11 Remote control
receiver
Receives the infrared signal from the
remote control
12 Water filling level
LED
Empty condensation tray indication
13 LED for cooling
operation
Indication of the operating mode
cooling
14 Segment display Indication of target temperature
Indication of error messages
15 Dehumidification
LED
Indication of the operating mode
dehumidification
No. Designation Meaning
16 Ventilation LED Indication of the operating mode
ventilation
17 ON/OFF button For switching the device on and off
18 Plus button Increasing the target temperature
(16°C to 30°C) for cooling
19 Minus button Reducing the target temperature
(16°C to 30°C) for cooling
20 MODE button Selecting the operating mode
automatic operation (can only be
activated via the remote control)
cooling
dehumidification
ventilation
21 Display Indication of different device functions
22 SWING button Switching the swing function on or off
Not available for this device.
23 TIMER button Automatic switch-on timer function in
increments of 0.5hours (0.5h to
24h)
Automatic switch-off timer function in
increments of 0.5hours (0.5h to
24h)
24 SLEEP button Switching night mode on and off
25 FAN button Setting the fan speed
26 SWING indication Is displayed when the swing function
is activated
Not available for this device.
27 SLEEP indication Is displayed when the SLEEP function
is activated
28 LOCK indication Is displayed when the key lock is
activated
29 Fan speed
indication
Indicates the fan stage
30 Timer setting
indication
Flashes during timer setting
31 Segment display2 Indication of the target temperature
Indication of the number of hours
during timer programming
32 Operating mode
indication
Indicates the currently set operating
mode
33 T-ON and T-OFF
indication
Indication of the timer functions
T-ON: Automatic switch-on activated
T-OFF: Automatic switch-off activated
34 Temperature unit
indication
Indicates the currently set
temperature unit (degrees Celsius or
Fahrenheit)
35 Transmission
indication
Displayed during communication
between device and remote control
