Assembly

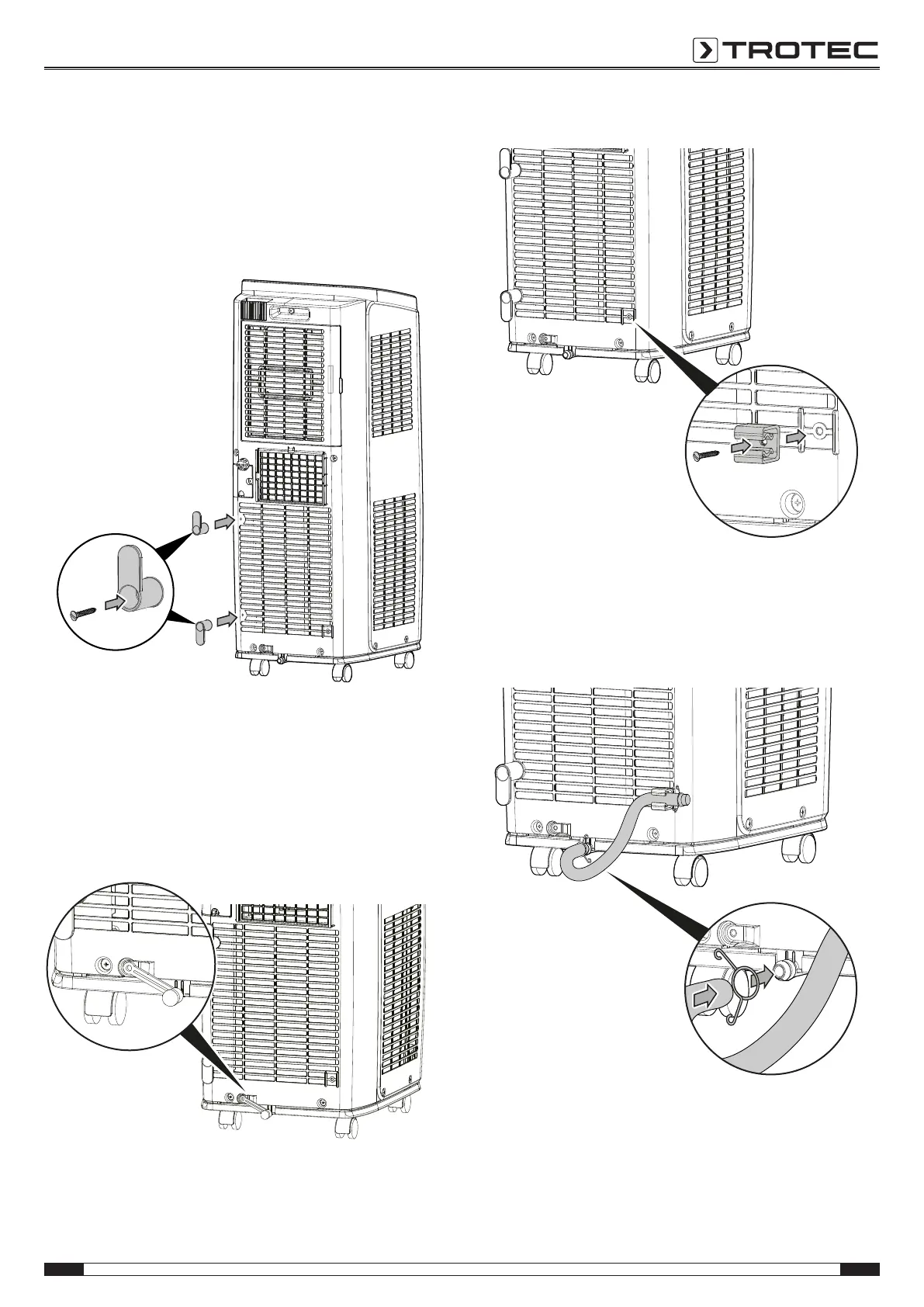

Mounting the power cable holder
1. Assemble the power cable holding fixture by screwing down
the power cable holders at the back of the device.
ð Observe the lug direction of the power cable holder. The
lug of the upper power cable holder points upwards, the
bottom one towards the bottom.
ð If required, the power cable can be reeled around the
holding fixture.
Mounting the condensation drain hose (optional)
The condensation drain hose serves as drip protection and, if
required, for discharging remaining condensate.
ü The device is switched off.
ü The device is disconnected from the mains.
1. Remove the rubber cap from the condensate outlet.
2. Screw the retaining clip to the device.
3. Place one end of the condensation drain hose into the
retaining clip.
4. Push the other end of the condensation drain hose onto the
condensate outlet. Fix the condensation drain hose in place
by means of a clamping piece.
