Trotec PAE 51 Operating Manual

7 EN
Operating manual – air cooler PAE 51

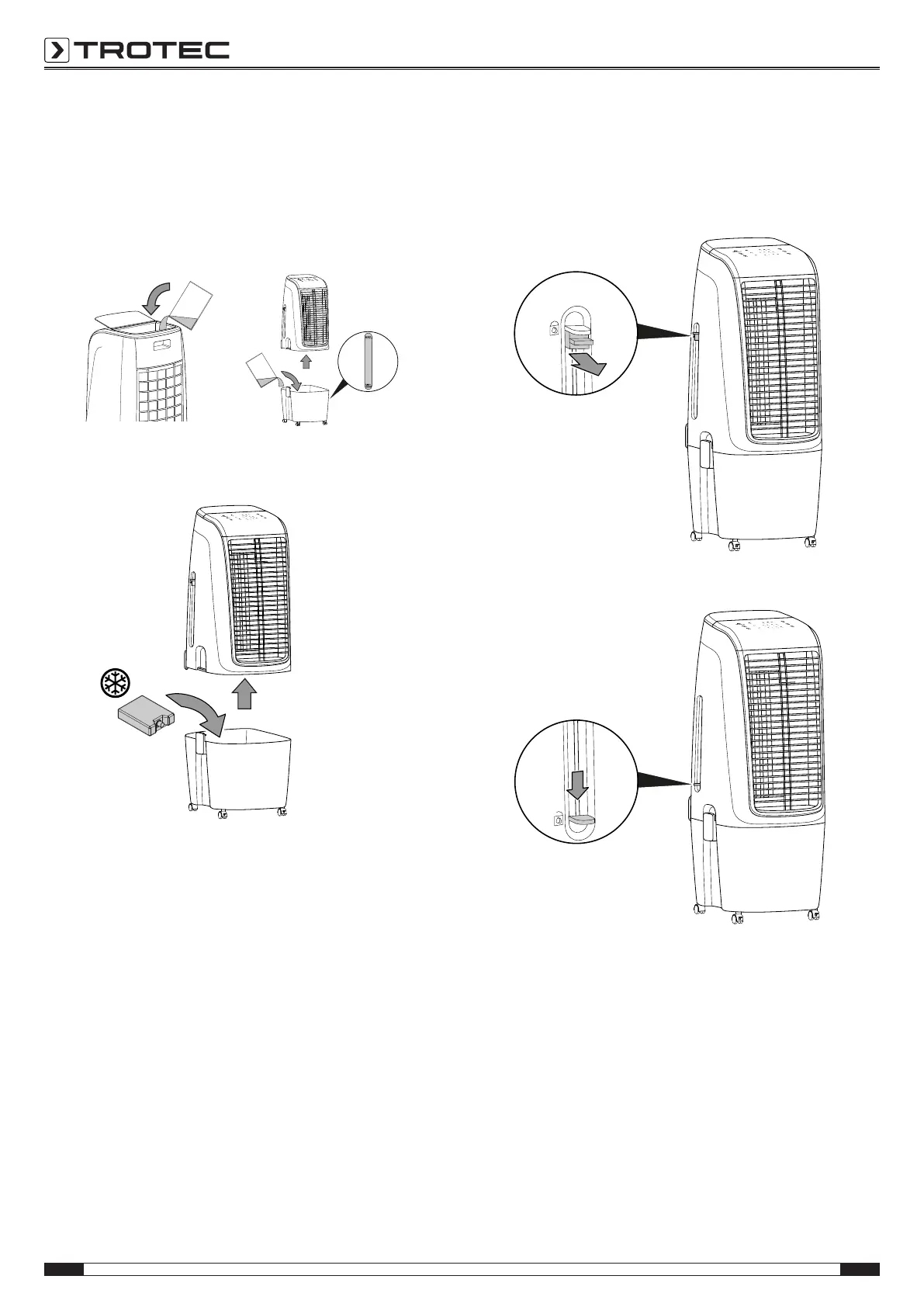

3. Fill the water tank(3) with fresh drinking water only.
Optionally, you can add ice cubes made of drinking water
for additional cooling.
ð Observe the minimum and maximum filling level at the
filling level indicator.
The water tank must be filled up to minimum filling level
to enable pump operation.
4. If required, put the ice pack into the water tank(3) for
additional cooling.
5. Close the flap for the water funnel(16) or put the upper
section back onto the water tank and shut the locking
clasps(13).
6. Make sure that the device is neither damp nor wet on the
outside. Otherwise wipe it dry.
Adjusting the position of the slider
After having filled the water tank, insert the pump in the water
tank in order to use the air cooling function.
1. Remove the stopper from the upper position of the
slider(14) at the device.
2. Push the slider(14) down.
Note
Always secure the slider in its upper position by means
of the stopper before lifting off the top section of the
device. Otherwise the pump and the mechanism might
be damaged.

Trotec PAE 51 Specifications

General

Type	Portable evaporative air cooler
Control type	Touch
Product color	Black, White
Handles quantity	1
Number of wheels	4 wheel(s)
Carrying handle(s)	Yes
Airflow	663 m³/h
Air speed	7 m/s
Noise level	60 dB
Number of speeds	4
Water tank capacity	20 L
Timer duration (maximum)	15 h
Suitable for room area up to	60 m²
AC input voltage	220 - 240 V
Power source type	AC
AC input frequency	50 Hz
Package depth	390 mm
Package width	342 mm
Package height	897 mm
Package weight	8000 g
Air purifiers functions	Cooling, Fan
