Trotec TWP 4006 E - Hose Line Without Thread; Installing the Connection System; Pipe Connection or Hose Connection with Internal Thread

8 EN
submerged clear water pump, near-ground suction TWP 4006 E / TWP 7506 E

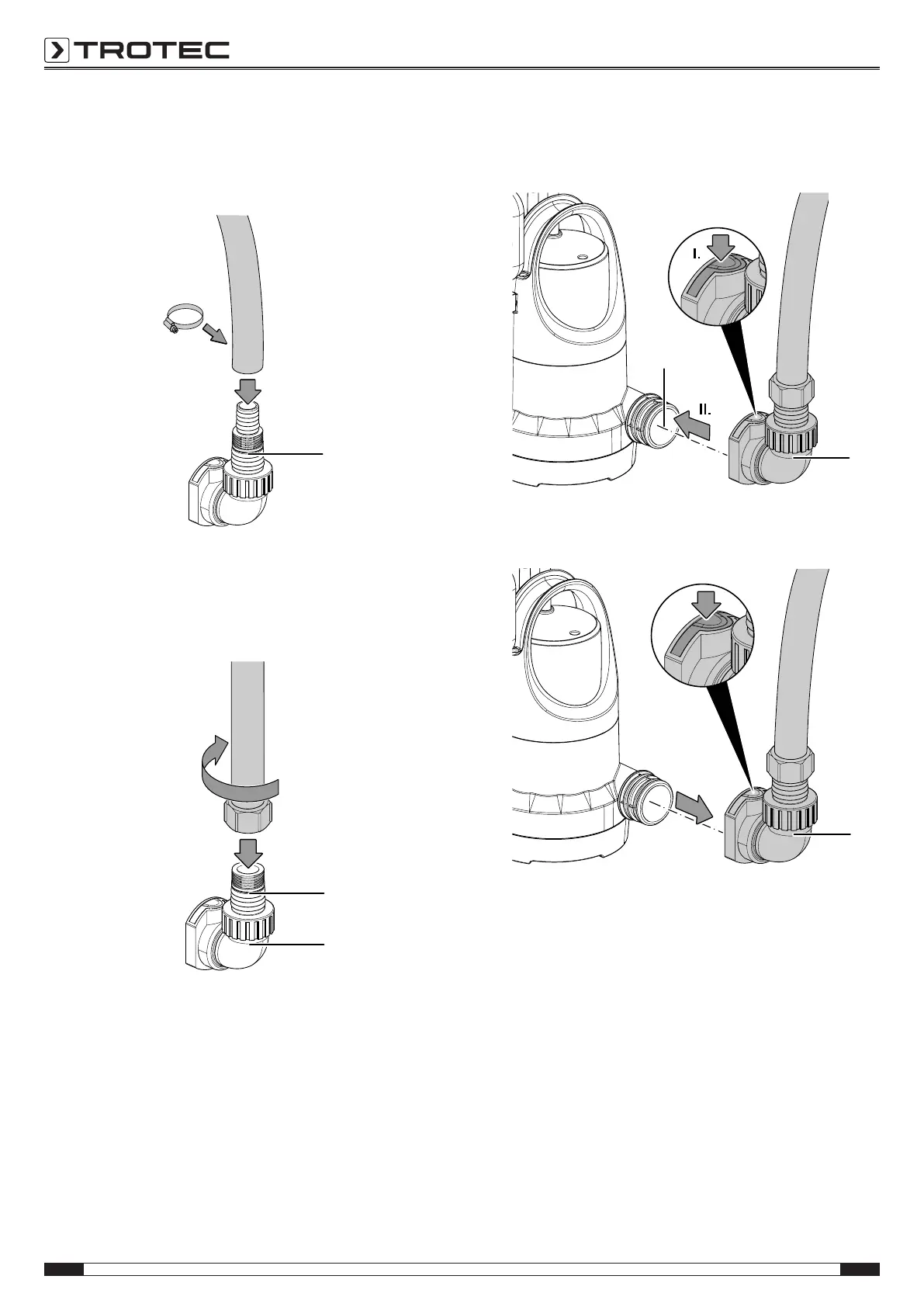

Hose line without thread
1. Slide an appropriate hose clamp onto the hose.
2. Push the hose (inner diameter 25mm or 38mm) onto the
reducer(7) all the way to the stop.
7
3. Affix the hose by means of the hose clamp.
Pipe connection or hose connection with internal thread
1. Screw the pipe connection or hose connection (internal
threadG1"/ DN25) onto the reducer(7).
7
10
Alternatively, you can also screw the pipe connection or hose
connection with the internal threadG1½"/ DN40 directly onto
the elbow(10).
Installing the connection system
1. Press the red button on the elbow(10).
2. Push the elbow(10) onto the pump connection(2).
2
10
In order to remove the connection system, press the red button
on the elbow(10) and pull it off.
10
