Item Part # Description

1 192419GS BASE

2 B191874GS HANDLE

3 191909GS BILLBOARD

4 190249GS HOSE

5 192645GS KIT, Pump Mounting Hardware

6 192128GS KIT, Hook

7 B3263GS GUN

8 B2203GS KIT, Handle Connector

9 192310GS KIT,Vibration Mount

Item Part # Description

10 21760GS ORIFICE

11 192309GS KIT, Hook

12 192050GS KIT, E-Ring

13 B3335HGS WAND,Adjustable Nozzle

14 192311GS KIT,Wheel

15 23139GS KEY

16 189970GS ASSY, Pump (see page 19)

900 NSP ENGINE

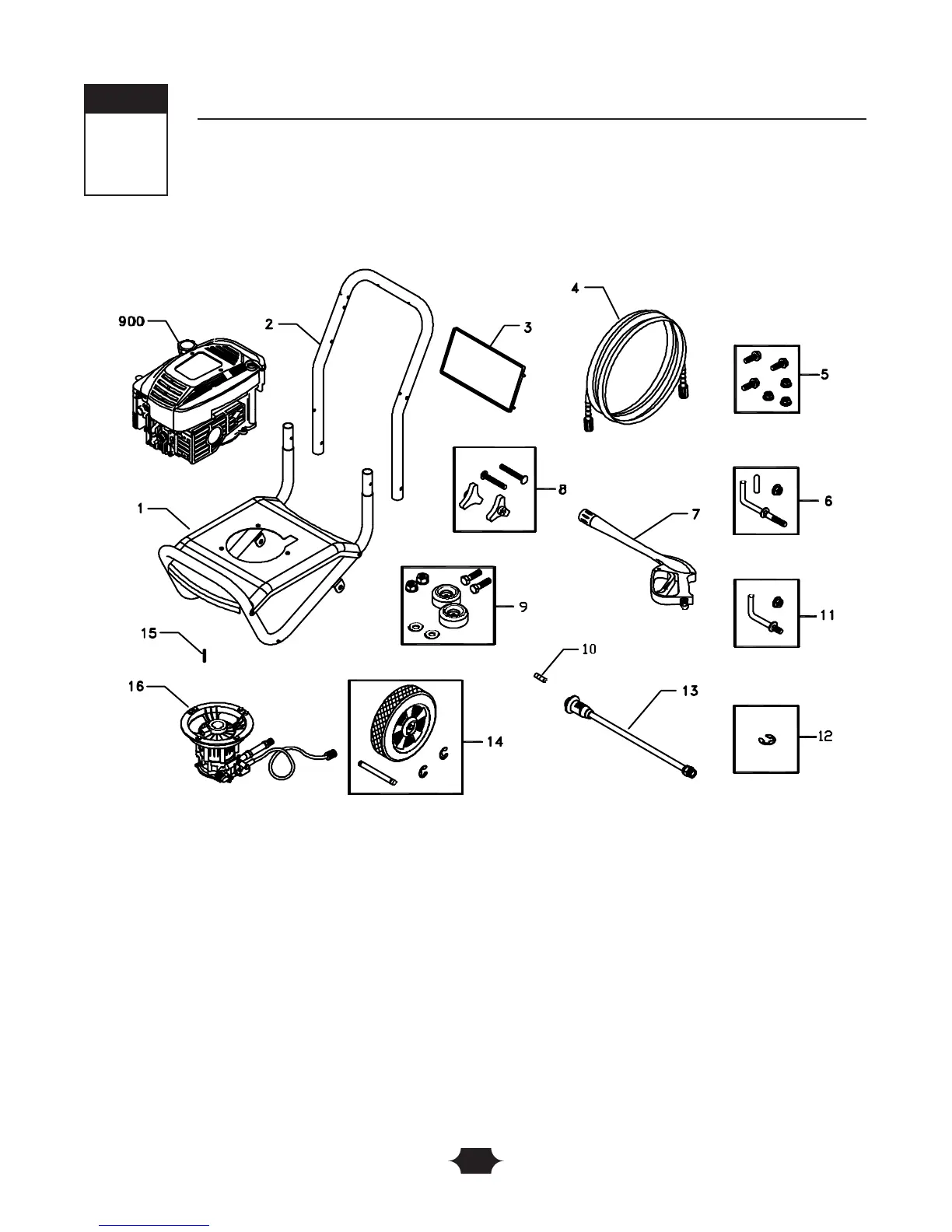

EXPLODED VIEW AND PARTS LIST — UNIT

Section

Exploded Views and Parts Lists

Items Not Illustrated

Part # Description

191424GS MANUAL, Owner’s

192423GS KIT, Decal

BB3061BGS OIL, Engine

191922GS KIT, O-RING MAINT & NZZL CLNNG
