KNOW YOUR PRESSURE WASHER
Read this Operator’s Manual and safety rules before operating your pressure washer.

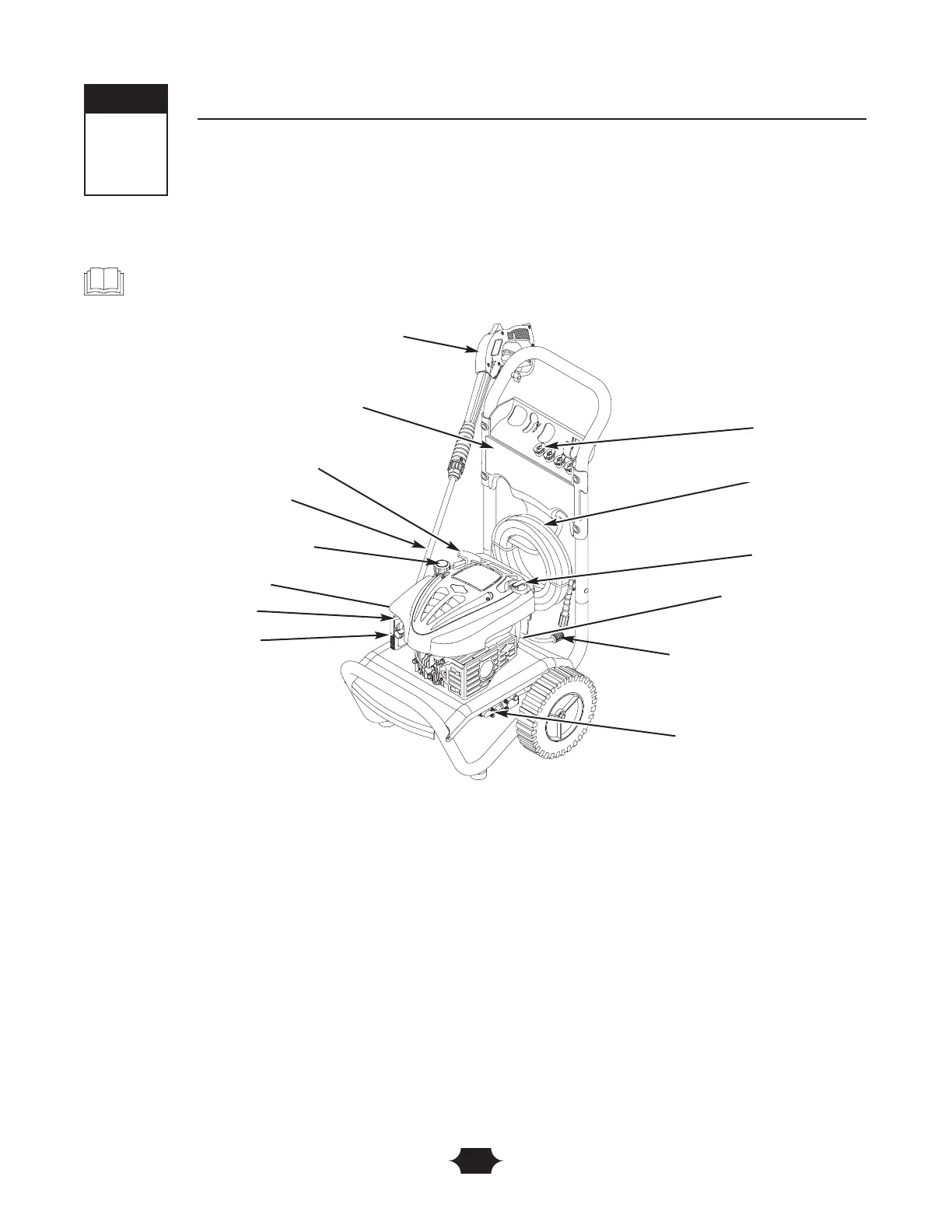

Compare the illustrations with your pressure washer to familiarize yourself with the locations of various controls
and adjustments. Save this manual for future reference.
Accessory Tray — Provides convenient storage for standard
and optional accessories, such as brushes, turbo wands, etc.
Air Filter — Protects engine by filtering dust and debris out
of intake air.
Automatic Cool Down System — Cycles water through
pump when water reaches 125°-155°F.Warm water will
discharge from pump onto ground.This system prevents
internal pump damage.
Detergent Siphoning Tube/Filter — Use to siphon
pressure washer safe detergents into the low pressure
stream.
Choke Lever — Prepares a cold engine for starting.
Data Tag (not shown, near rear of base plate) – Provides
model and serial number of pressure washer. Please have these
readily available if calling for assistance.
Fuel Tank — Fill tank with regular unleaded fuel.Always leave
room for fuel expansion.
High Pressure Hose — Connect one end to water pump
and the other end to spray gun.
High Pressure Outlet — Connection for high pressure hose.
Nozzle Extension with Quick Connect — Allows you to
switch between four different nozzles.
Oil Fill/Dipstick — Check and fill with oil here.
Pump — Develops high pressure.
Quick Connect Spray Tips — Detergent, 0°, 15°, and
40°: for various high pressure cleaning applications.
Recoil Starter — Used for starting the engine manually.
Spray Gun — Controls the application of water onto
cleaning surface with trigger device. Includes trigger lock.
Throttle Lever — Sets engine in starting mode for recoil
starter and stops a running engine.
Water Inlet — Connection for garden hose.
Air Filter
Choke Lever
Fuel Tank
Pump equipped with
Automatic Cool Down System
Recoil Starter
High Pressure Outlet
& Water Inlet
Detergent Siphoning
Tube/Filter
Spray Gun
High Pressure Hose
Nozzle Extension
with Quick Connect
Oil Fill/Dipstick
Throttle Lever
Quick Connect
Spray Tips
Features and Controls
2
Section
Accessory Tray
