2. Insert carriage bolts through holes from outside of unit
and attach a plastic knob from inside of unit (Figure 2).
Tighten by hand.
3. Place accessory tray over holes on handle (viewing
from front of unit). Push the tree clips into the holes
until they sit flat against the accessory tray (Figure 3).
4. Insert “L” bolt through hole just above billboard on left
side of handle (viewing from front of unit). Hold bolt in
place and attach a plastic knob from inside of unit
(Figure 4).Tighten by hand.
5. Insert multi–colored quick connect spray tips and
other supplied accessories in spaces provided in
accessory tray. See “How to Use Accessory Tray”.
Add Engine Oil and Fuel
• Place pressure washer on a level surface.
• Refer to engine operator’s manual and follow oil and fuel
recommendations and instructions.
NOTE: Check oil often during engine break–in. Refer to
engine operator’s manual for recommendations.

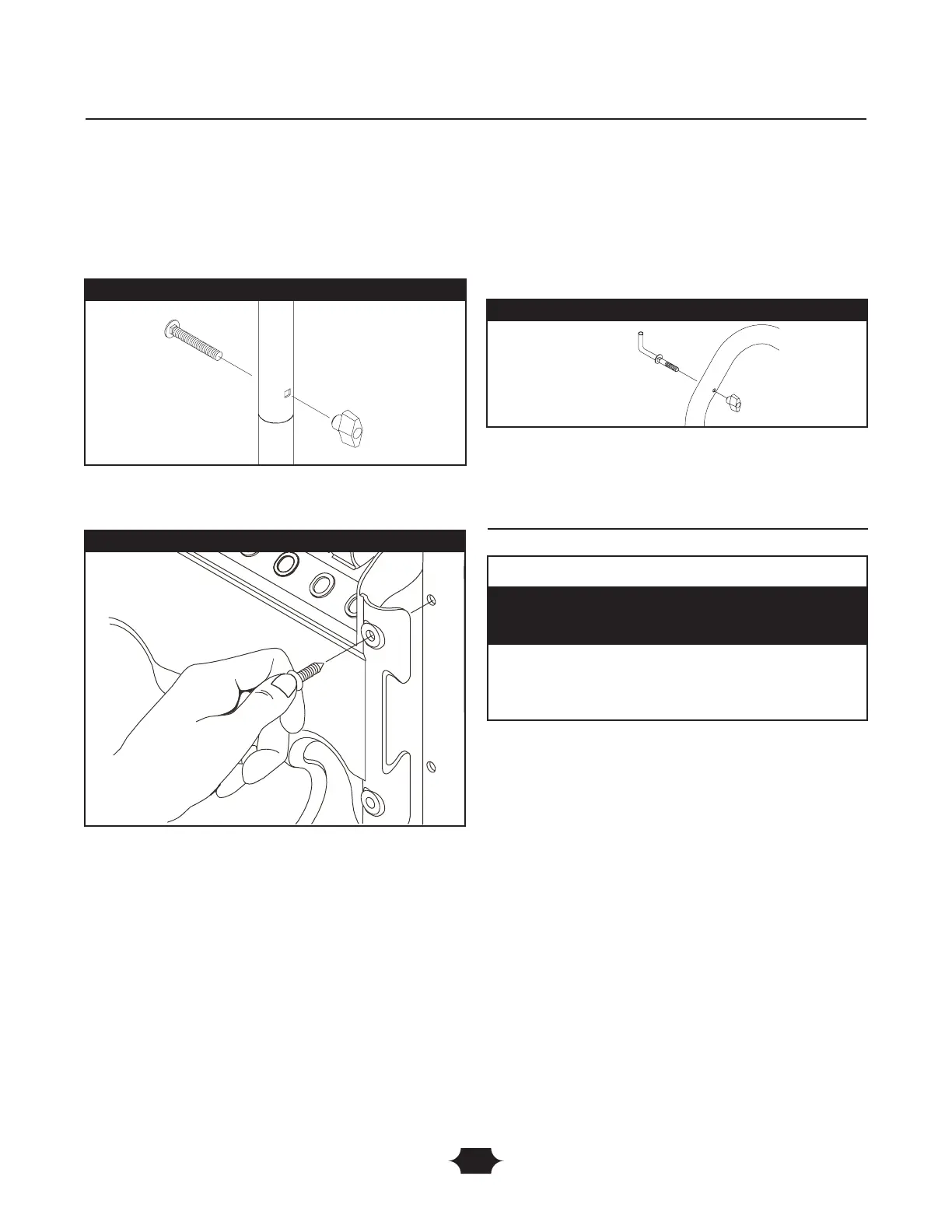

Figure 3 — Attach Accessory Tray to Handle
Figure 2 — Secure Handle
CAUTION
• Refer to engine operator’s manual for oil and fuel fill
information.
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
Any attempt to crank or start the engine before it has
been properly filled with the recommended oil will result
in equipment failure.
Spray Gun Hook
Figure 4 — Attach “L” Bolt to Handle
Section 3: Assembly
