Auger
Z-End j
Jam Nut j
Auger
Control Cable
Tire Pressure(PneumaticTires)
The tires are overinflated for shipping purposes.
• Check tire pressure. Maintain pressure between 10
and 14 psi.
NOTE: If the tire pressure is not equal in all tires, the
unit may pull to one side or the other.
WARNING: Maximum tire pressure under
any circumstance is 30 psi. Equal tire pressure
should be maintained at all times. Excessive
pressure (over 30 psi) when seating beads
may cause tire/rim assembly to burst with force
sufficient to cause serious injury.

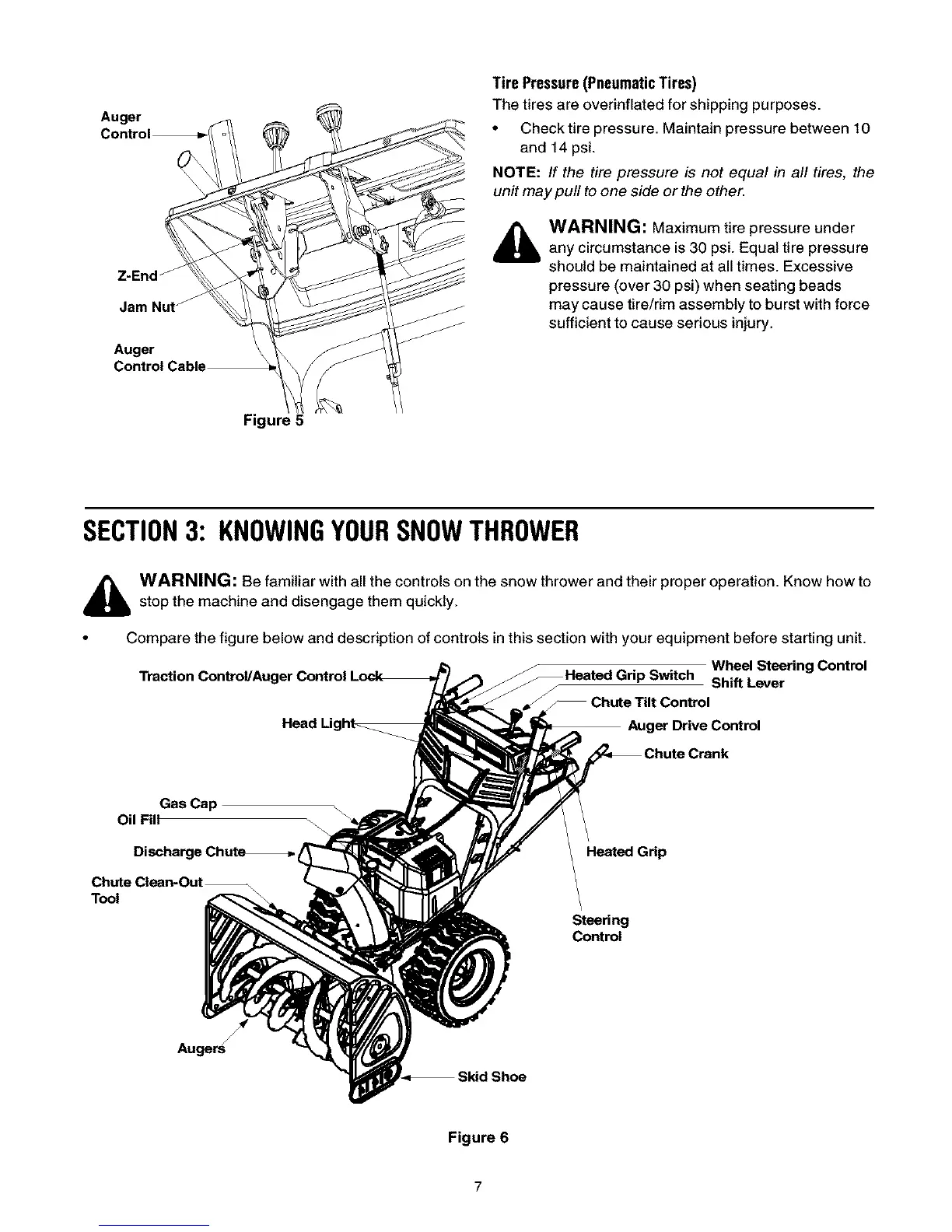

Figure 5
SECTION3: KNOWINGYOURSNOWTHROWER
,_ WARNING: Be familiar with all the controls on the snow thrower and their proper operation. Know how to
stop the machine and disengage them quickly.
• Compare the figure below and description of controls in this section with your equipment before starting unit.
Traction Control/Auger Control
Head Ligh_
) Switch Wheel Steering Control
f Shift Lever
Chute Tilt Control
Auger Drive Control
Gas Cap
Oil Fill
Discharge Chute_.
Chute Cieen-Out--_
Tool
Heated Grip
Steering
Control
A.gers/
Skid Shoe
Figure 6
