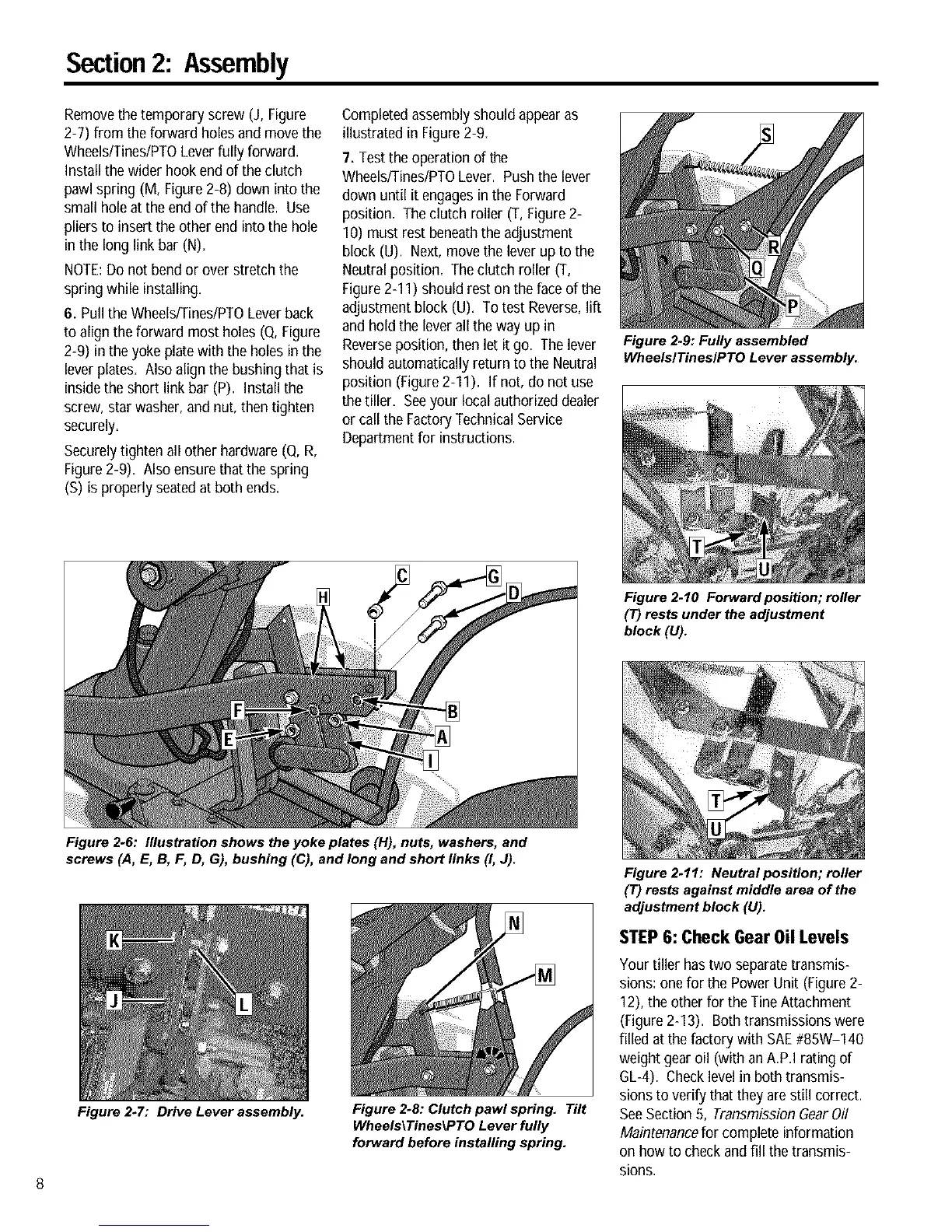

Section2: Assembly
Removethe temporary screw (J, Figure
2-7) from the forward holes and move the
Wheels/Tines/PTOLeverfully forward.
Install the wider hook end of the clutch
pawlspring (M, Figure2-8) down into the
small holeat the end of the handle. Use
pliers to insert the other end into the hole
in the long link bar (N).
NOTE:Do not bend or over stretch the
spring while installing,
6. Pull the Wheels/Tines/PTOLever back
to align the forward most holes (Q, Figure
2-9) in the yoke platewith the holes in the
leverplates. Also align the bushing that is
insidethe short link bar (P). Install the
screw, star washer, and nut, then tighten
securely.
Securelytighten all other hardware (Q,R,
Figure2-9). Also ensure that the spring
(S) is properly seatedat both ends.
Completedassembly should appearas
illustrated in Figure2-9,
7. Test the operation of the
Wheels/Tines/PTOLever. Pushthe lever
down until it engagesin the Forward
position. The clutch roller (T, Figure2-
10) must rest beneaththe adjustment
block (U). Next,move the lever up to the
Neutralposition. Theclutch roller (T,
Figure2-I I) should rest on theface of the
adjustment block (U). To test Reverse,lift
and hold the leverall the way up in
Reverseposition, then let it go. The lever
should automaticallyreturn to the Neutral
position (Figure2-11). If not, do not use
the tiller. Seeyour local authorized dealer
or call the FactoryTechnicalService
Departmentfor instructions.
Figure 2.9: Fully assembled
WheelslTines/PTO Lever assembly.
Figure 2.10 Forward position; roller
(T) rests under the adjustment
block (U).
Figure 2-6: Illustration shows the yoke plates (H), nuts, washers, and
screws (A, E, B, F, D, G), bushing (C), and long and short links (I, J).
Figure 2-7: Drive Lever assembly.
Figure 2.8: Clutch pawl spring. Tilt
Wheels\Tines_PTO Lever fully
forward before installing spring.
Figure 2.11: Neutral position; roller
(T) rests against middle area of the
adjustment block (U).
STEP6: Check Gear Oil Levels
Your tiller has two separatetransmis-
sions: one for the Power Unit (Figure2-
12), the otherfor the TineAttachment
(Figure2-13). Both transmissions were
filled at the factory with SAE#85W-140
weight gear oil (with an A.P.I rating of
GL-4). Checklevel in both transmis-
sions to verify that they are still correct.
SeeSection 5, Transmission GearOil
Maintenancefor complete information
on how to check and fill the transmis-
sions.
