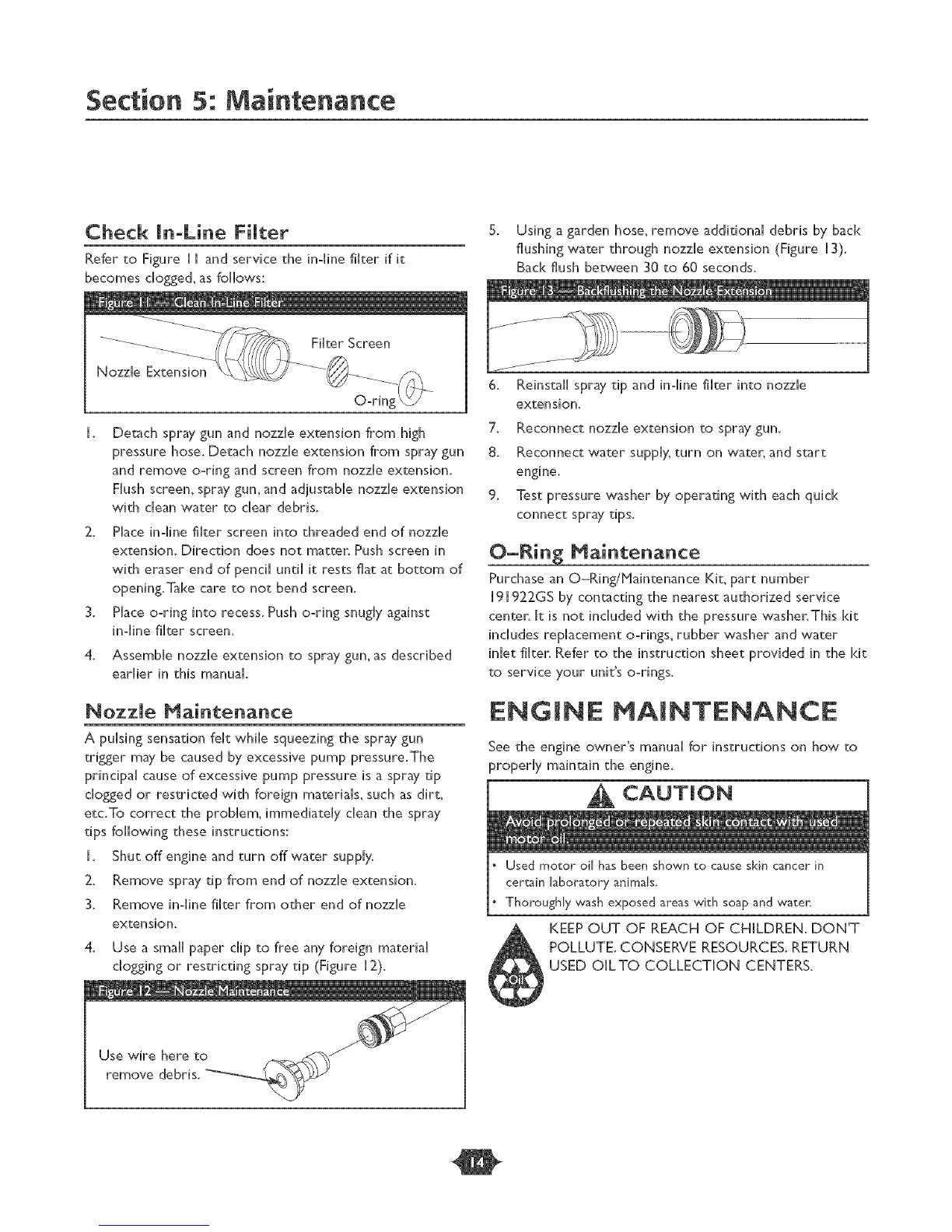

Troy-Bilt 20210 Owner's Manual

Section 5: Maintenance
Check In-Line Filter
Refer to Figure [ [ and service the in:Nne filter if it
becomes dogged, as foNows:
Nozzle Extension
FilterScreen
O:ring
2,
3.
4,
Detach spray gun and nozzle extension from high
pressure hose. Detach nozzle extension from spray gun
and remove ooring and screen from nozzHe extension.
Flush screen_ spray gum and adjustable nozzle extension
with clean water to clear debris.
Place in:line filter screen into threaded end of nozzle
extension. Direction does not matter. Push screen in
with eraser end of pencil until it rests fiat at bottom of
opening.Take care to not bend screen.
Place ooring into recess. Push ooring snugly against
in:Nne filter screen.
Assemble nozzle extension to spray gun, as described
earner in this manual
Nozzle Maintenance
A puHsingsensation felt while squeezing the spray gun
trigger may be caused by excessive pump pressure.The
principal cause of excessive pump pressure is a spray tip
clogged or restricted with foreign materials, such as dirt,
etc.To correct the problem, immediately clean the spray
tips following these instructions:
I. Shut off engine and turn off water supply.
2. Remove spray tip from end of nozzle extension.
3. Remove in:line filter from other end of nozzle
extension,
4. Use a small paper chip to free any foreign material
clogging or restricting spray tip (Figure 12).
5. Using a garden hose, remove additional debris by back
flushing water through nozzle extension (Figure 13).
Back flush between 30 to 60 seconds.
6. ReinstaN spray tip and in:line filter into nozzle
extension.
7. Reconnect nozzle extension to spray gun.
8. Reconnect water supply, turn on water, and start
engine.
9. Test pressure washer by operating with each quick
connect spray tips.
O-Ring Maintenance
Purchase an O-PJng/Maintenance Kit, part number
191922GS by contacting the nearest authorized service
center. It is not included with the pressure washer.This kit
includes replacement o:rings_ rubber washer and water
inlet filter. Refer to the instruction sheet provided in the kit
to service your unit's o:rlngs.
ENGINE HAINTENANCE
See the engine owner's manual for instructions on how to
properly maintain the engine.
CAUTION
Used motor oil has been shown to cause skin cancer in
certain laboratory animals.
ThoroughJy wash exposed areas with soap and waten
KEEP OUT OF REACH OF CHILDREN. DON'T
POLLUTE. CONSERVE RESOURCES. RETURN
USED OILTO COLLECTION CENTERS.
