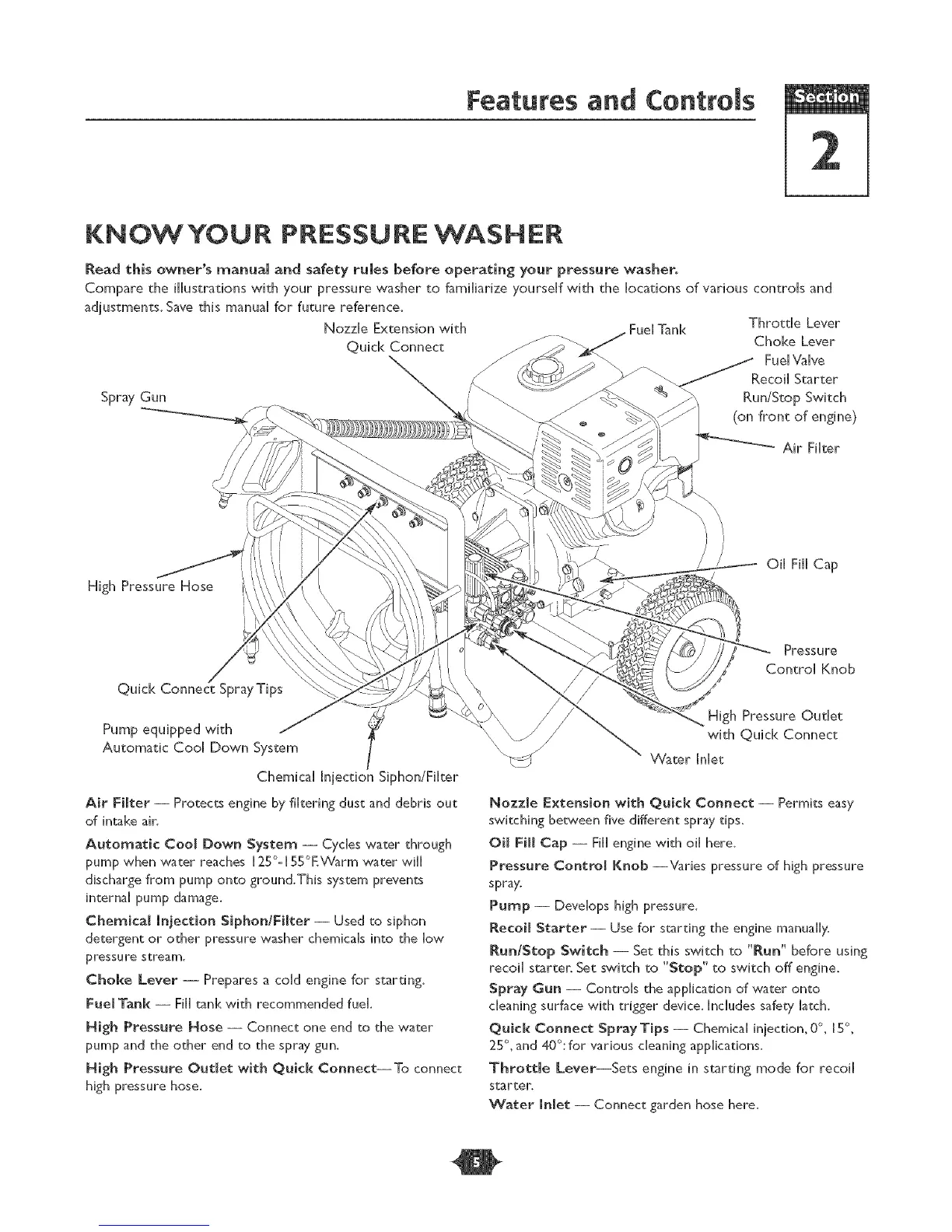

Features and Controls
KNOWYOUR PRESSURE WASHER
Read this owner's _anuai and safety rules before operating your pressure washer,
Compare the illustrations with your pressure washer to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.
Nozzle Extension with
Quick Connect
Spray Gun
Throttle Lever
Choke Lever
<.JR Fuel Valve
ecoil Starter
% Run/Stop Switch
(on front of engine)
Air Filter
High Pressure Hose
Q
Pump equipped with
Automatic Cool Down System
Chemical injection Siphon/Filter
Air Filter -- Protects engine by filtering dust and debris out
of intake air.
Automatic Cool Down System -- Cycles water through
pump when water reaches 125 °=I55°EWarm water will
discharge from pump onto ground.This system prevents
internal pump damage.
Chemical injection Siphon/Fiiter -- Used to siphon
detergent or other pressure washer chemicals into the low
pressure stream.
Choke Lever -- Prepares a cold engine for starting.
Fuel Tank- Fiil tank with recommended fuel.
Nigh Pressure Nose -- Connect one end to the water
pump and the other end to the spray gun.
High Pressure Outlet with Quick Connect--To connect
high pressure hose.
Pressure
Control Knob
High Pressure Outlet
with Quick Connect
_A/ate r inlet
Nozzle Extension with Quick Connect -- Permits easy
switching between five different spray tips,
Oil Fill Cap -- Fill engine with oil here_
Pressure Control Knob --Varies pressure of high pressure
spray.
Pump -- Develops high pressure.
[Recoil Starter -- Use for starting the engine manually.
Run/Stop Switch -- Set this switch to "Run" before using
recoil starter. Set switch to "Stop" to switch off engine.
Spray Gun -- Controls the application of water onto
cleaning surface with triter device. [nchdes safety latch.
Quick Connect Spray Tips -- Chemical injection, 0 °, [5 °,
25 °, and 40°: for various cleaning applications.
Throttle Lever--Sets engine in starting mode for recoil
starter.
Water Inlet -- Connect garden hose here.
