Features and Controls

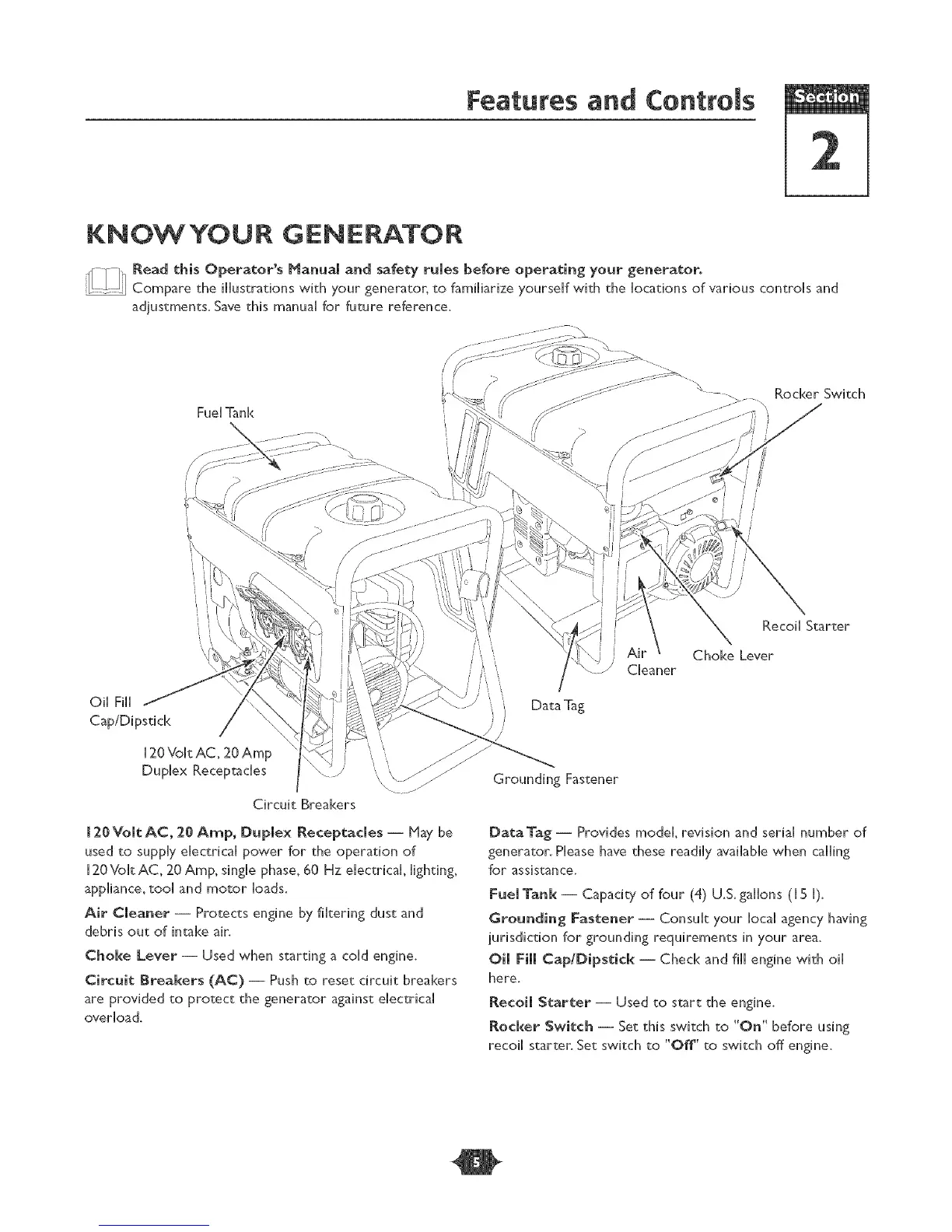

KNOWYOUR GENERATOR
Read this Operator's Manuam and safety fumes before operating your generator°
..... Compare the illustrations with your generator, to famiHiarize yourself with the locations of various controls and
adiustments. Save this manual for future reference.
Fuel Tank
Rocker Switch
Oil Fill
Cap/Dipstick
Duplex Receptacles
Circuit Breakers
120 Volt AC, 20 Amp, Duple× Receptacles -- Hay be
used to supply electrical power for the operation of
120Volt AC, 20 Amp, single phase, 60 Hz electrical lighting,
appliance, tool and motor loads.
Air Cmeaner -- Protects engine by filtering dust and
debris out of intake air.
Choke Lever -- Used when starting a cold engine.
Circuit Breakers (AC) -- Push to reset circuit breakers
are provided to protect the generator against electrical
overload.
Data Tag
Air
Cleaner
Recoil Starter
Choke Lever
Grounding Fastener
DataTag -- Provides model revision and serial number of
generator. Please have these readily avaihble when calling
for assistance.
Fuel Tank -- Capacity of four (4) U.S. gallons (I 5 I).
Grounding Fastener -- Consult your local agency having
iurisdiction for grounding requirements in your area.
Oil Fill CapIDipstick -- Check and fill engine with oil
here.
Recoim Starter -- Used to start the engine.
Rocker Switch -- Set this switch to "On" before using
recoil starter. Set switch to "Off' to switch off engine.
