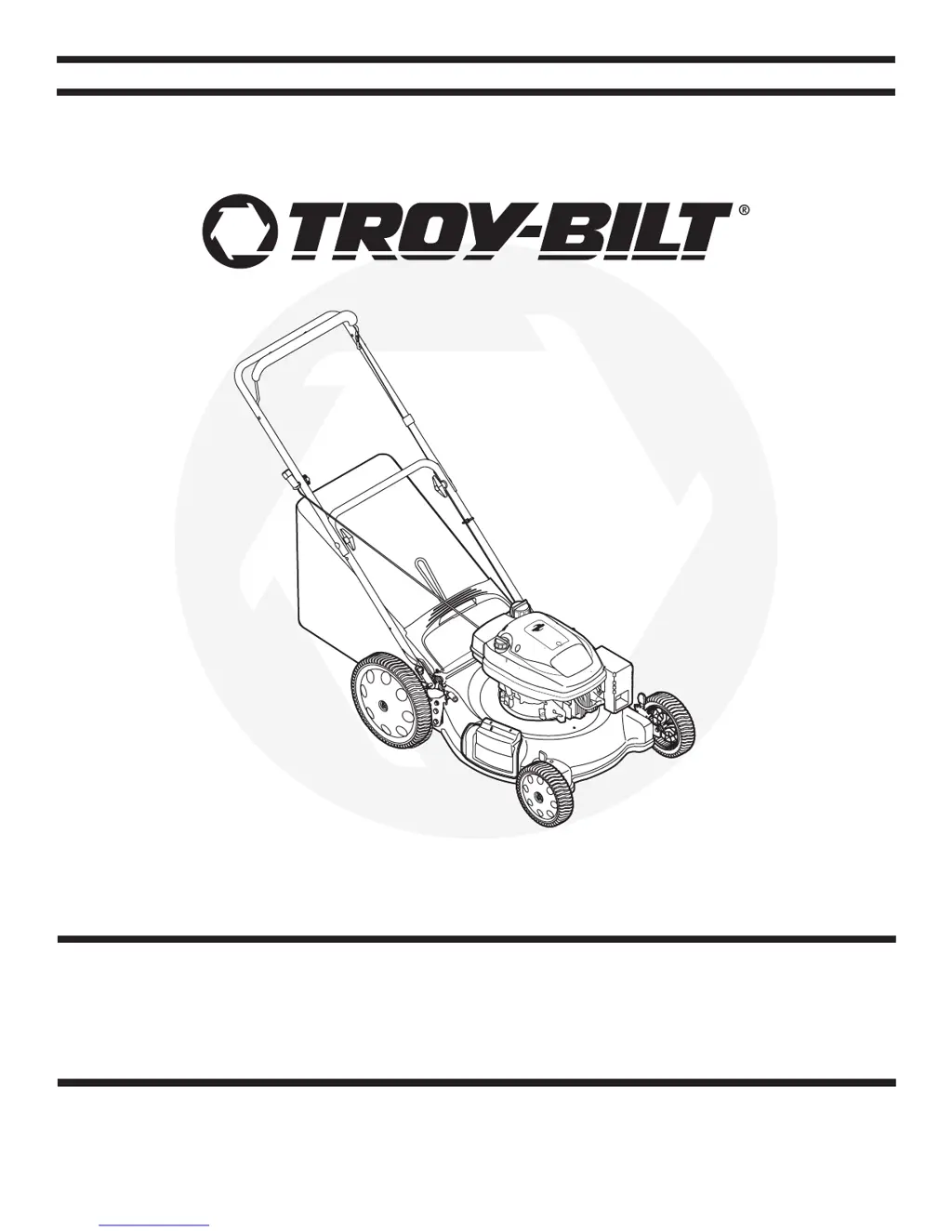

Troy-Bilt 540 Series - User Manual

Questions and Answers

J
Jeffrey BoydAug 19, 2025
Why Troy-Bilt Lawn Mower engine fails to start?
- M
  Michaela TuckerAug 19, 2025
  If your Troy-Bilt Lawn Mower engine won't start, several factors could be at play. First, ensure the blade control handle is engaged. Next, check that the spark plug wire is securely connected. If the fuel tank is empty or contains stale fuel, replenish it with clean, fresh gasoline. Other potential issues include a faulty spark plug (clean, adjust gap, or replace it), a blocked fuel line (clean it), or engine flooding (wait a few minutes before attempting to restart, avoiding priming). If the engine is not primed, please refer to the engine manual.
J
james65Aug 21, 2025
Why Troy-Bilt 540 Lawn Mower engine runs erratic?
- M
  Michael MartinezAug 21, 2025
  An erratic running engine in your Troy-Bilt Lawn Mower can stem from several causes. Ensure the spark plug wire is securely connected and tightened. A blocked fuel line or stale fuel can also be culprits; clean the fuel line and refill the tank with fresh gasoline. Check for a plugged gas cap vent and clear it if necessary. Additionally, water or dirt in the fuel system can cause issues; drain the tank and carburetor, then refill with fresh fuel. For a dirty air cleaner or a carburetor out of adjustment, please refer to the engine manual.
M
melissa61Aug 23, 2025
Why Troy-Bilt 540 Lawn Mower engine overheats?
- G
  Gary ClarkAug 25, 2025
  If your Troy-Bilt Lawn Mower engine overheats, check the engine oil level and fill the crankcase with the proper oil if it's low. If the air flow is restricted, remove the blower housing and clean it. For a dirty air filter or a carburetor that is not adjusted properly, please refer to the engine manual included with your unit.
C
christopher22Aug 26, 2025
What to do if Troy-Bilt Lawn Mower will not mulch grass?
- J
  Jason FigueroaAug 26, 2025
  If your Troy-Bilt Lawn Mower isn't mulching grass effectively, it might be due to wet grass; avoid mowing in wet conditions and wait for it to dry. Excessively high grass can also be a factor; mow once at a higher cutting height, then again at the desired height, or narrow the cutting path. A dull blade will hinder mulching, so sharpen or replace it.
G
garciakendraAug 28, 2025
Why Troy-Bilt Lawn Mower idles poorly?
- K
  Kathy AndersonAug 28, 2025
  Poor idling in your Troy-Bilt Lawn Mower can be caused by a spark plug that is fouled, faulty, or has a gap that's too wide; reset the gap to .030” or replace the spark plug. For a carburetor that is improperly adjusted or a dirty air cleaner, please refer to the engine manual.
F
Frank BallAug 30, 2025
How to fix excessive vibration in Troy-Bilt 540?
- J
  Jaime RayAug 30, 2025
  Excessive vibration in your Troy-Bilt Lawn Mower could be due to a loose or unbalanced cutting blade; tighten the blade and adapter. Alternatively, a bent cutting blade can cause vibration, requiring blade replacement.
C
Christina DavenportSep 1, 2025
What to do if Troy-Bilt 540 Lawn Mower has an uneven cut?
- C
  Charles JonesSep 1, 2025
  An uneven cut with your Troy-Bilt Lawn Mower can occur if the wheels are not positioned correctly; ensure all four wheels are set at the same height. A dull blade can also contribute to an uneven cut, so sharpen or replace it.
A
Alexandra AlvaradoSep 4, 2025
Why Troy-Bilt 540 Lawn Mower occasionally skip (hesitates) at high speed?
- B
  Brian SmithSep 4, 2025
  An occasional skip or hesitation at high speed in your Troy-Bilt Lawn Mower can occur if the spark plug gap is too close; adjust the gap to .030”. Refer to the engine manual for carburetor idle mixture adjustment.
I
ibakerSep 6, 2025
What to do if Troy-Bilt Lawn Mower engine runs erratic?
- K
  Kristina JonesSep 6, 2025
  If your Troy-Bilt lawn mower engine is running erratically, here are some possible causes and solutions: * A loose spark plug wire - connect and tighten the spark plug wire. * A blocked fuel line or stale fuel - clean the fuel line and fill the tank with clean, fresh gasoline. * A plugged vent in the gas cap - clear the vent. * Water or dirt in the fuel system - drain the fuel tank and refill with fresh fuel.
J
Joshua StevensSep 8, 2025
Why Troy-Bilt Lawn Mower has an uneven cut?
- A
  Andrew MccormickSep 8, 2025
  An uneven cut with your Troy-Bilt lawn mower can be caused by: * Incorrect wheel positioning - place all four wheels in the same height position. * A dull blade - sharpen or replace the blade.

Summary

Model and Serial Number Identification

Customer Support Information

Slope Gauge for Safe Operation

Safe Operation Practices

General Operation Safety Guidelines

Read, understand, and follow all instructions for safe machine operation.

Safe Mowing on Slopes

Guidelines for operating the mower safely on slopes to prevent slips.

Service

Safe Gasoline Handling

Precautions for safe handling and storage of gasoline to prevent fires and injuries.

General Service Procedures

General maintenance recommendations and safety checks for the mower.

Blade Care and Inspection

Instructions for inspecting, sharpening, and balancing the mower blade.

Setup and Adjustments

Handle and Rope Guide Setup

Instructions for assembling the mower handles and setting up the starter rope guide.

Cutting Height and Grass Catcher Installation

Procedures for adjusting cutting height and attaching the grass catcher.

Rear Wheel Installation

Steps to install the rear wheels onto the mower axle.

Operating Your Lawn Mower

Starting the Engine

Procedure for servicing the engine and starting the mower's engine.

Mower Operation and Tips

Guidelines for safely operating the mower, including stopping and general tips.

Mulching and Side Discharge

Instructions on using the mulching plug and converting to side discharge.

Maintenance

General Maintenance and Lubrication

General advice on mower care, lubrication points, and schedules.

Engine and Deck Care

Instructions for servicing the engine, air cleaner, and cleaning the mower deck.

Blade Maintenance and Storage

Procedures for blade maintenance, replacement, and preparing the mower for storage.

Trouble Shooting

Engine Starting and Running Issues

Troubleshooting steps for common engine starting issues and erratic operation.

Engine Performance and Vibration

Diagnosing and resolving overheating, hesitation, idling, and vibration problems.

Cutting Quality Problems

Addressing problems with mulching, uneven cuts, and blade-related issues.

Warranty Information

Troy-Bilt 540 Series Specifications

General

Engine	Briggs & Stratton
Cutting Width	21 inches
Deck Material	Steel
Starter	Recoil
Cutting Positions	6
Mulching Capability	Yes
Bagging Capability	Yes
Side Discharge	Yes
