Troy-Bilt 604 - Page 27

27

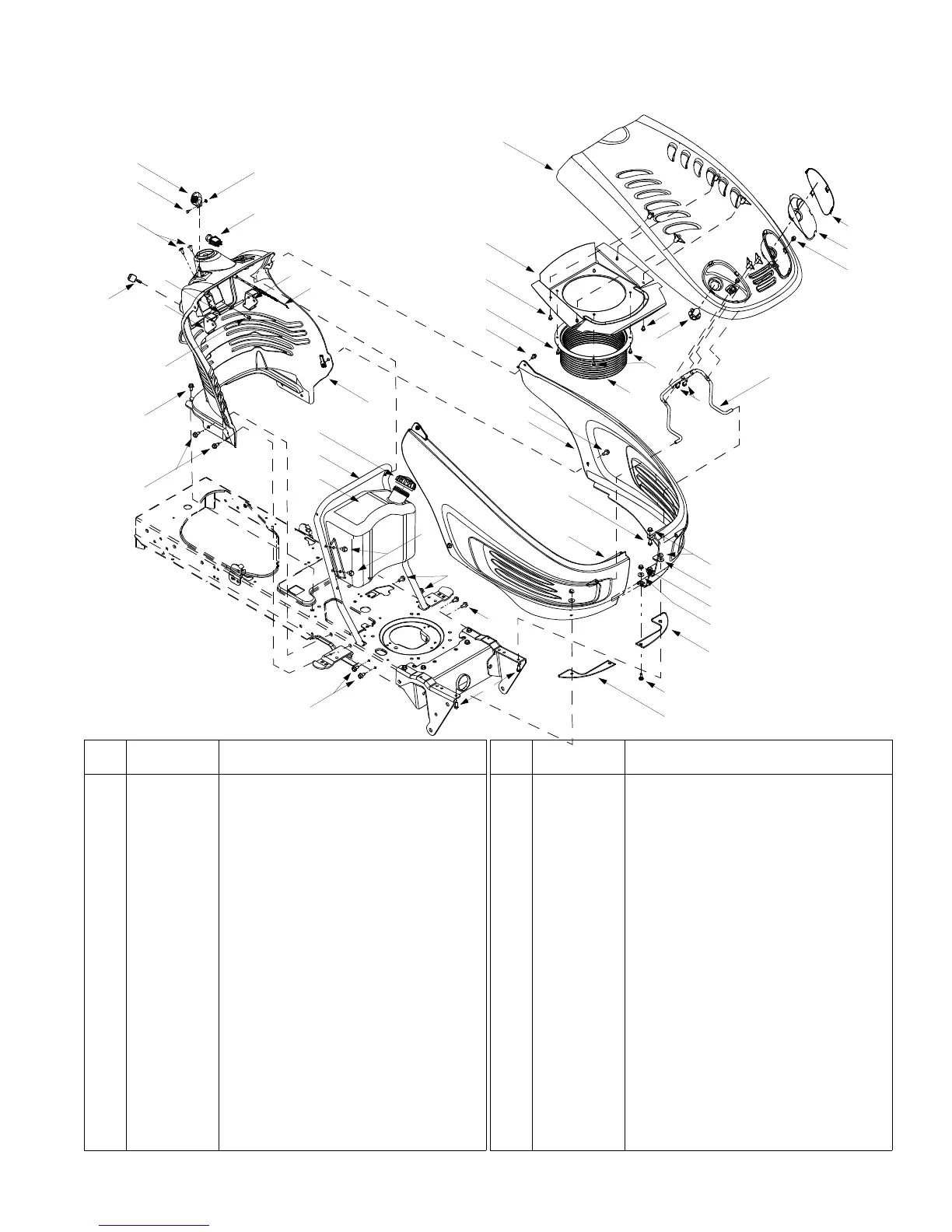

Electrical System/Tractor Body
1
4
21
10
4
2
32
2
12
16
2
13
22
14
6
8
9
18
19
6
22
22
22
22
22
22
15
33
31
34
26
35
23
24
28
25
30
29
4
27
36
20
4
REF.
NO.
PART
NO. DESCRIPTION
1 710-0788 Self Tapping Screw, 1/4-20 x 1.0
2 710-0599 Self Tapping Screw, 1/4-20 x .5
3 710-0751 Hex Cap Screw, 1/4-20 x .62
4 710-0895 Self Tapping Screw, 1/4-15 x .75
5 710-0924 Pan Phillips Screw, 1/4-20 x .75
6 710-0528 Hex Cap Screw, 5/16-18 x 1.25
7 712-0292 U-type Speed Nut, 1/4-20
8 712-3004A Flange Lock Nut, 5/16-18
9 712-3027 Hex Flange Lock Nut, 1/4-20
10 725-1649 Head Lamp Socket
11 731-1978 RH Head Light Lens
12 731-1979 LH Head Light Lens
13 731-2238 Hood, 4-style (Red)
14 731-2237 LH Side Panel, 4-style (Red)
15 731-2236 RH Side Panel, 4-style (Red)
16 731-1995 LH Head Light Reflector
17 731-1996 RH Head Light Reflector
18 736-0173 Flat Washer, .28 x .74 x .063
19 736-3078 Flat Washer, .349 x 1.0 x .063
20 747-1132 Hood Support Rod
21 783-0808 Heat Shield, 4-style
22 710-0604A Self Tapping Screw, 5/16-18 x .625
23 710-1017 Torx Self Tapping Screw, 1/4-14 x .625
24 710-3217 Torx Screw, #8-32 x .375
25 712-0142 Hex Nut, 8-32
26 731-0071 Dash Panel, 4-style
27 731-0072 Parking Brake Button
28 731-1857 Throttle Control Lever
29 731-2106 Cruise Control Button
30 747-1155 Brake/Cruise Pivot Rod
31 749-1087 Dash Support Tube
32 731-2232 Intake Bellow (Kohler and Intek Single)
731-2234 Intake Bellow (Intek Twin)
33 751-0603 Fuel Cap (For Two Gallon Tank, Shown)
751-0649 Fuel Cap (For Three Gallon Tank)
34 751-0659 Fuel Tank (Two Gallon, Shown)
751-0658 Fuel Tank (Three Gallon)
35 725-1745 Ignition Key
36 746-1084 Choke/Throttle Cable (Intek Single)
746-1085 Choke Cable (Intek Twin)
746-1088 Choke Cable (Kohler)
37 725-1752 Electric PTO Switch
38 731-2264 RH Grille Heat Shield
39 731-2263 LH Grille Heat Shield
REF.
NO.
PART
NO. DESCRIPTION
37
3
38
39
