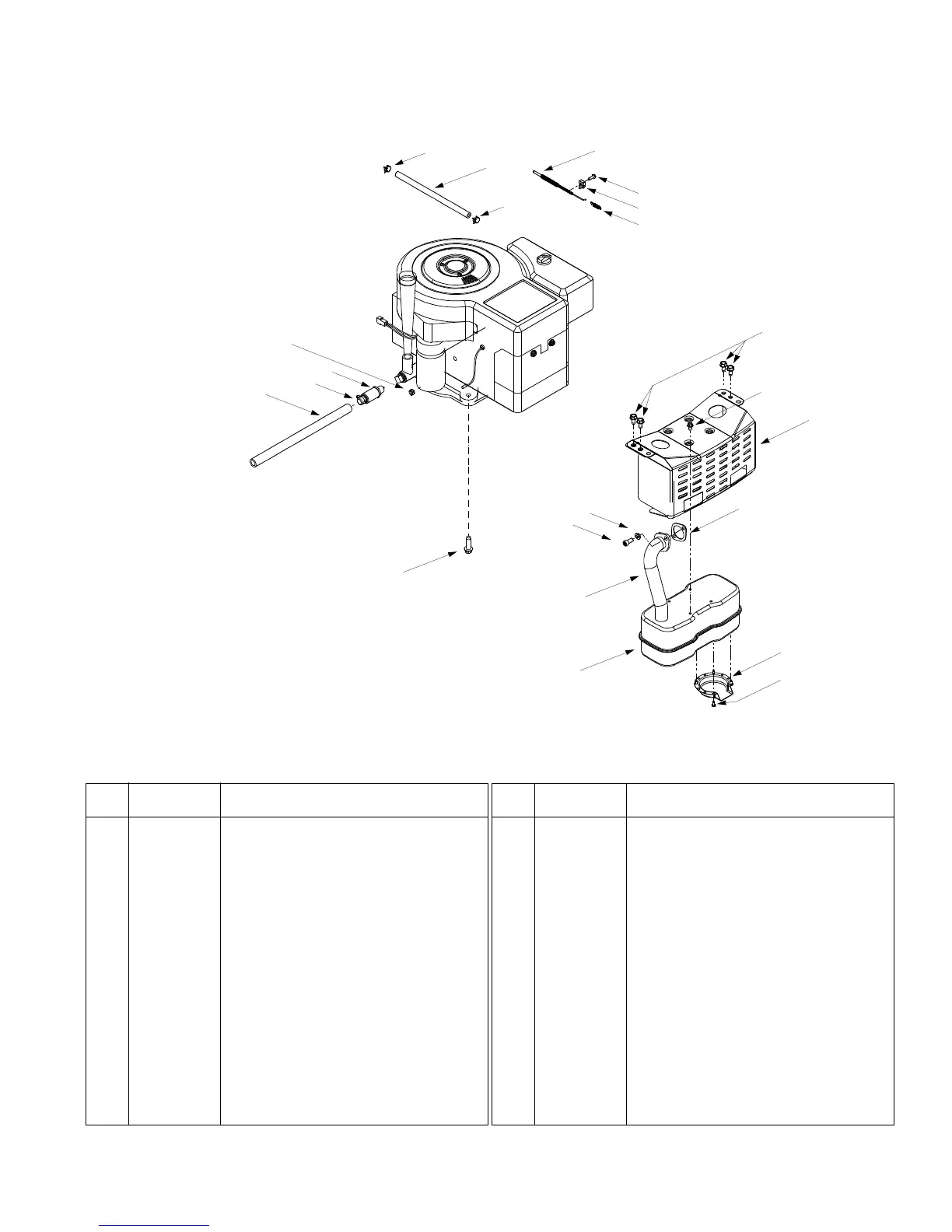

Engine Accessories
Briggs & Stratton
Intek Single
3
2
18
19
20
REF.
NO.
PART
NO. DESCRIPTION
1 710-0148 Self Tapping Screw, #8-32 x .375
2 710-0599 Self Tapping Screw, 1/4-20 x .5
3 710-0604A Self Tapping Screw, 5/16-18 x .625
4 710-1237 Screw, #10-32 x .625
5 710-1314 Socket Cap Screw, 5/16-18 x .625
6 710-1315 Self Tapping Screw, 3/8-16 x 1.25
7 712-0798 Hex Nut, 3/8-16
8 721-0460 Exhaust Gasket (Intek Twin)
9 726-0205 Hose Clamp
10 736-0119 Lock Washer, 5/16
11 736-0221 Flat Washer, 3/8 x .56 x .018
12 751B221535 Casing Clamp
13 751-0535 Fuel Line Hose
14 751-0564 Muffler Deflector
15 751-0616 Muffler, Twin Inlet
16 751-0650 RH Exhaust Pipe (Intek Twin)
17 751-0651 LH Exhaust Pipe (Intek Twin)
18 751-3140 Oil Drain Valve
19 751-3141 Oil Drain Hose
20 751-3142 Oil Drain Cap
21 783-0615 Muffler Heat Shield
22 783-0625B Engine Heat Shield
23 710-3206A Hex Cap Screw, M8-1.25 x 25
24 712-3086 Flange Nut, M8-1.25
25 721-0375 Exhaust Gasket (Kohler)
26 736-0607 External Lock Washer, 5/16
27 751-0621 Exhaust Pipe (Kohler)
28 751-0617 Muffler, Single Inlet
29 712-0271 Hex Sems Nut, 1/4-20 (for starter cable)
30 721-0208 Exhaust Gasket (Intek Single)
31 732-0966 Extension Spring, .275 x 1.25
32 751B213146 Casing Clamp
33 751-0619 Exhaust Pipe (Intek Single)
34 746-1084 Throttle/Choke Cable (Intek Single)
35 746-1086 Throttle Cable (Intek Twin)
36 746-1087 Throttle Cable (Kohler)
