Servicing the Troy-Bilt Wide Cut 33” Combination Mower
10
10.2. Remove the hairpin clip securing the shift link
and lower it from the shift rod. See Figure 32.
10.3. Moved the shift arm back and forth as necessary
into each detent until the transmission is in neu-
tral.
NOTE: Moving the shift arm clockwise all the
way to the left, and then one notch counterclock-
wise should put the transmission in neutral. With
the operator presence control lever down you
should be able to easily roll the unit.
10.4. With the transmission in neutral, rotate the shift
link until the hooked end easily fits into the hole
at the bottom end of the shift rod. See Figure 32.
NOTE: The shift rod must be held in the neutral
position while the shift link is adjusted.
10.5. Secure the shift link into the shift rod with the
hairpin clip removed earlier.
10.6. Recheck the neutral position and readjust i nec-
essary. Check from both the forward and reverse
direction.
11. DECK REMOVAL
11.1. Using a ½ inch socket remove the four screws
securing the belt cover and remove the cover.
11.2. Remove the blade drive belt (see blade drive
belt removal section)
11.3. Using a recoil rope or spring removal tool,
remove the extension spring attached to the
deck bracket and idler arm. See Figure 33.
11.4. Remove the spring from the idler arm.
11.5. Using a medium size 45 degree retaining ring
tool, remove the retaining ring securing the idler
arm to the deck bracket. See Figure 34.
11.6. Remove the flat washers (2-4) and flange bush-
ing from the idler arm. Inspect the flange bush-
ing for wear.
11.7. Remove the idler arm from the deck bracket and
set it on the mower support.
11.8. Support the deck from below.

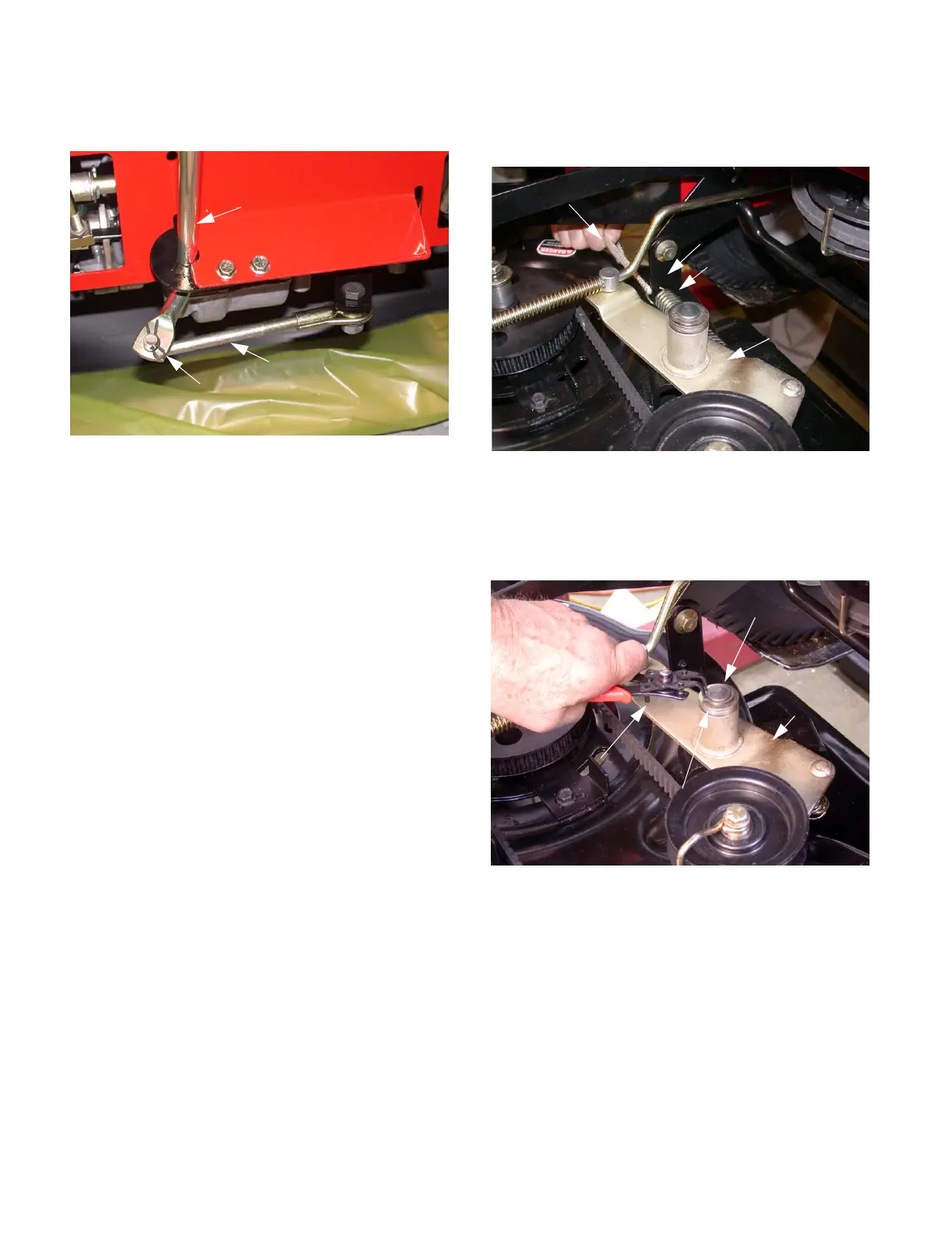

Figure 32
Shift Rod
Hair Pin Clip
Shift Link
Figure 33
Extension Spring
Recoil Rope
Idler Arm
Deck Bracket
Figure 34
Retaining Ring Pliers
Idler Bracket
Retaining Ring
Flat Washer and Flange Bushing
