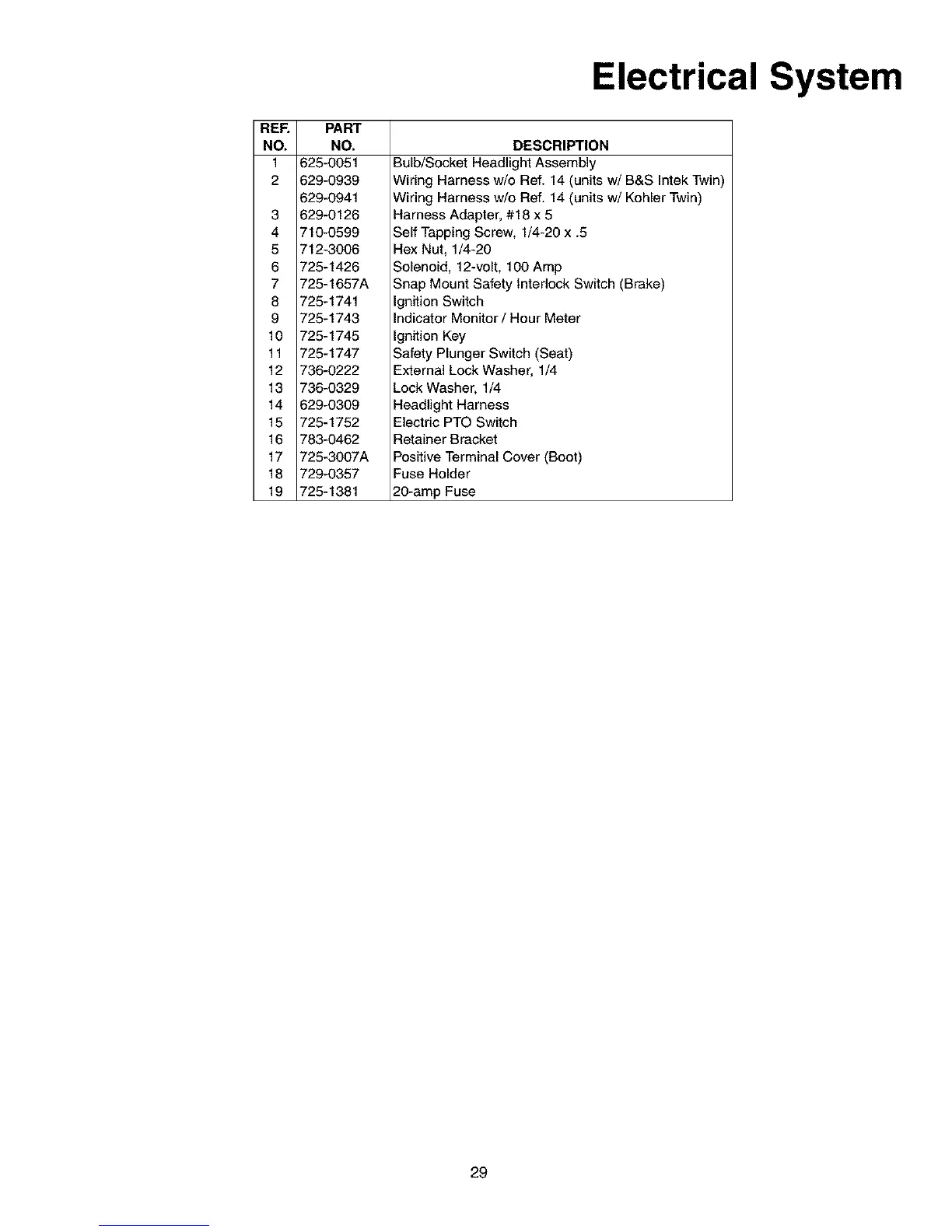

Troy-Bilt 809 - Electrical System

REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Electrical System
PART
NO.
625-0051
629-0939
629-0941
629-0126
710-0599
712-3006
725-1426
725-1657A
725-1741
725-1743
725-1745
725-1747
736-0222
736-0329
629-0309
725-1752
783-0462
725-3007A
729-0367
725-1381
DESCRIPTION
Bulb/Socket Headlight Assembly
Wiring Harness w/o Ref. 14 (units w/B&S Intek Twin)
Wiring Harness w/o Ref. 14 (units w/Kohler Twin)
Harness Adapter, #18 x 5
Self Tapping Screw, 1/4-20 x .5
Hex Nut, 1/4-20
Solenoid, 12-volt, 100 Amp
Snap Mount Safety Interlock Switch (Brake)
Ignition Switch
Indicator Monitor/Hour Meter
Ignition Key
Safety Plunger Switch (Seat)
External Lock Washer, 1/4
Lock Washer, 1/4
Headlight Harness
Electric PTO Switch
Retainer Bracket
Positive Terminal Cover (Boot)
Fuse Holder
20-amp Fuse
