SECTION 7: CONTROLS
D
C
B
J
A
H
K
A Ignition Switch
B Throttle Control Lever
C Choke Control
D Indicator Monitor/Hour Meter
E Lift Lever
F PTO (Power Take-Off) Knob
G Brake Pedal
NOTE: Steering Wheel not shown for clarity.

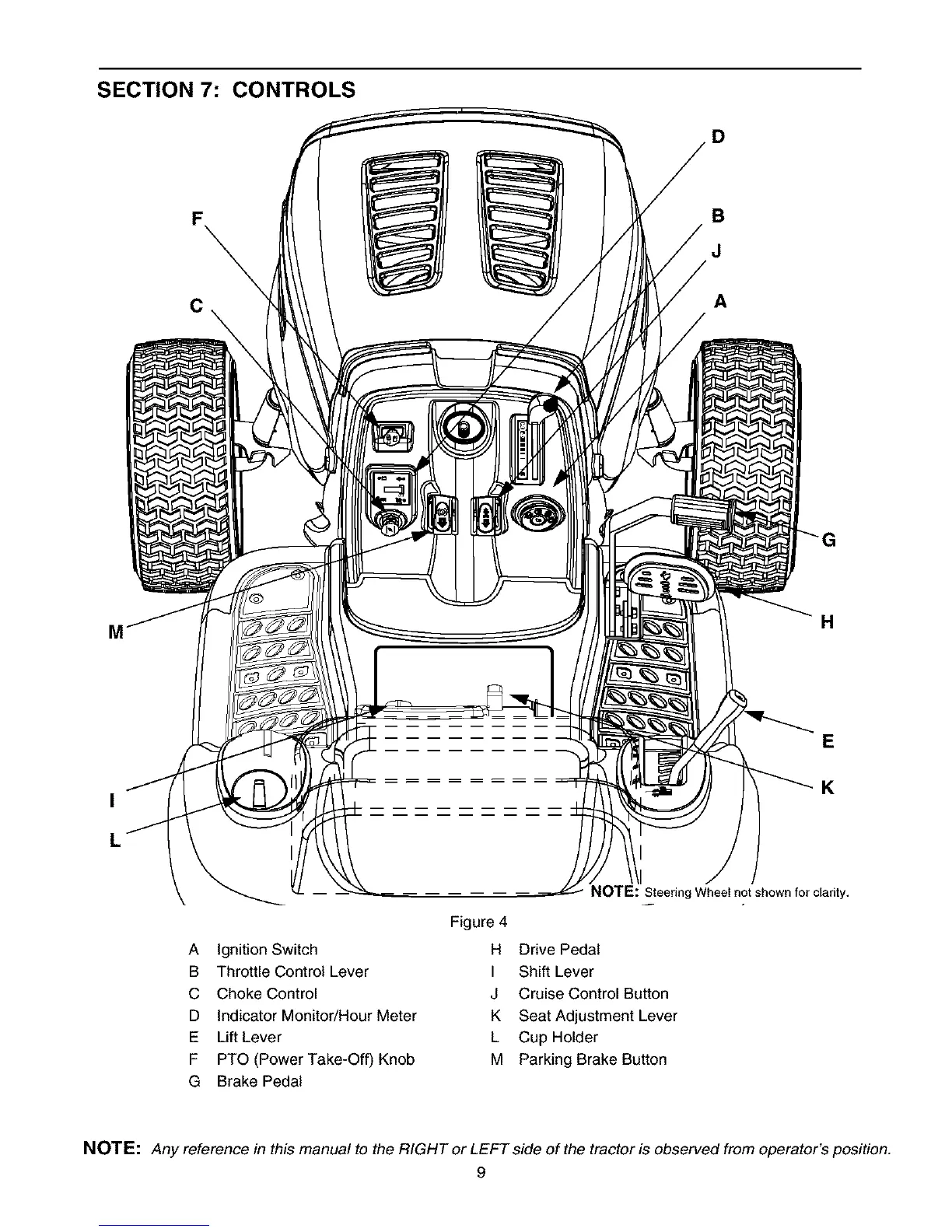

Figure 4
H Drive Pedal
I Shift Lever
J Cruise Control Button
K Seat Adjustment Lever
L Cup Holder
M Parking Brake Button
NOTE: Any reference in this manual to the RIGHT or LEFT side of the tractor is observed from operator's position.
