Troy-Bilt 809 - Tractor Body

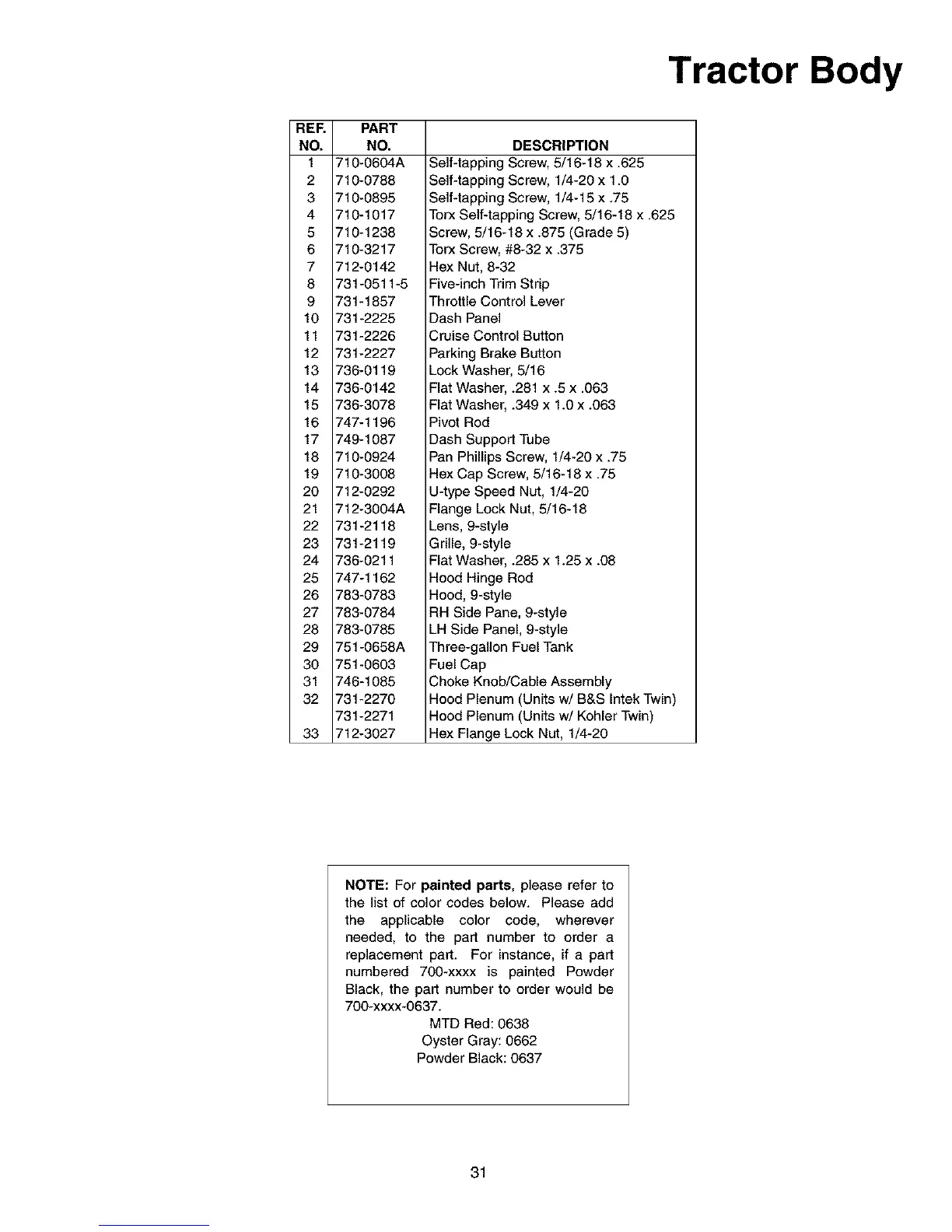

Tractor Body
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
PART
NO.
710-0604A
710-0788
710-0895
710-1017
710-1238
710-3217
712-0142
731-0511-5
731-1857
731-2225
731-2226
731-2227
736-0119
736-0142
736-3078
747-1196
749-1087
710-0924
710-3008
712-0292
712-3004A
731-2118
731-2119
736-0211
747-1162
783-0783
783-0784
783-0785
751-0658A
751-0603
746-1085
731-2270
731-2271
712-3027
DESCRIPTION
Self-tapping Screw, 5/16-18 x .625
Self-tapping Screw, 1/4-20 x 1.0
Self4apping Screw, 1/4-15 x .75
Torx Self-tapping Screw, 5/16-18 x .625
Screw, 5/16-18 x .875 (Grade 5)
Torx Screw, #8-32 x .375
Hex Nut, 8-32
Five-inch Trim Strip
Throttle Control Lever
Dash Panel
Cruise Control Button
Parking Brake Button
Lock Washer, 5/16
Flat Washer, .281 x .5 x .063
Flat Washer, .349 x 1.0 x .063
Pivot Rod
Dash Support Tube
Pan Phillips Screw, 1/4-20 x .75
Hex Cap Screw, 5/16-18 x .75
U-type Speed Nut, 1/4-20
Flange Lock Nut, 5/16-18
Lens, 9-style
Grille, 9-style
Flat Washer, .285 x 1.25 x .08
Hood Hinge Rod
Hood, 9-style
RH Side Pane, 9-style
LH Side Panel, 9-style
Three-gallon Fuel Tank
Fuel Cap
Choke Knob/Cable Assembly
Hood Plenum (Units w/B&S Intek Twin)
Hood Plenum (Units w/Kohler Twin)
Hex Flange Lock Nut, 1/4-20
NOTE: For painted parts, please refer to
the list of color codes below. Please add
the applicable color code, wherever
needed, to the part number to order a
replacement part. For instance, if a part
numbered 700-xxxx is painted Powder
Black, the part number to order would be
700-xxxx-0637.
MTD Red: 0638
Oyster Gray: 0662
Powder Black: 0637
31
