Troy-Bilt 809 - Power Take-off Systems

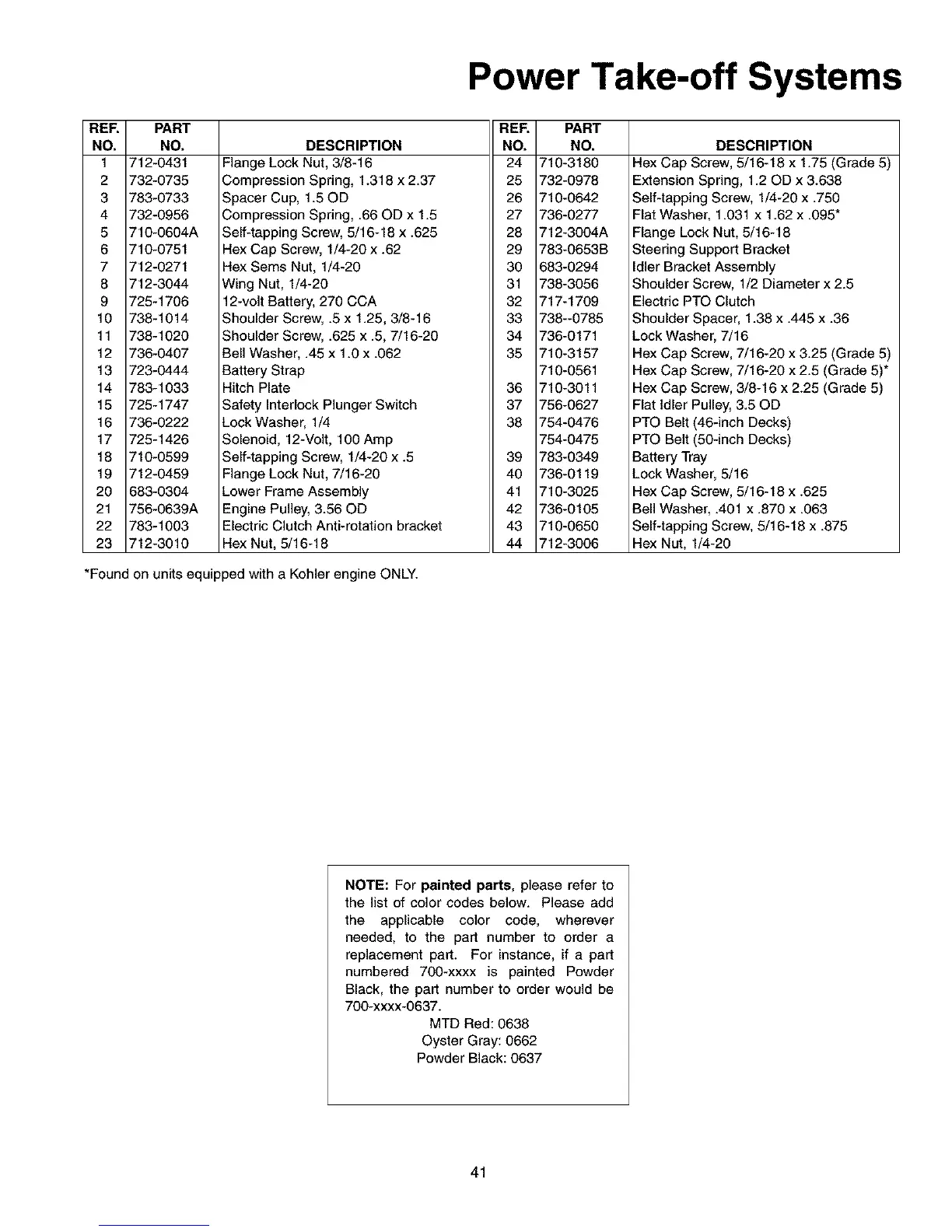

Power Take-off Systems
RED PART
NO. NO.
1 712-0431
2 732-0735
3 783-0733
4 732-0956
5 710-0604A
6 710-0751
7 712-0271
8 712-3044
9 725-1706
10 738-1014
11 738-1020
12 736-0407
13 723-0444
14 783-1033
15 725-1747
16 736-0222
17 725-1426
18 710-0599
19 712-0459
20 683-0304
21 756-0639A
22 783-1003
23 712-3010
DESCRIPTION
Flange Lock Nut, 3/8-16
Compression Spring, 1.318 x 2.37
Spacer Cup, 1.50D
Compression Spring, .66 OD x 1.5
Self-tapping Screw, 5/16-18 x .625
Hex Cap Screw, 1/4-20 x .62
Hex Sems Nut, 1/4-20
Wing Nut, 1/4-20
12-volt Battery, 270 CCA
Shoulder Screw, .5 x 1.25, 3/8-16
Shoulder Screw, .625 x .5, 7/16-20
Bell Washer, .45 x 1.0 x .062
Battery Strap
Hitch Plate
Safety Interlock Plunger Switch
Lock Washer, 1/4
Solenoid, 12-Volt, 100 Amp
Self-tapping Screw, 1/4-20 x .5
Flange Lock Nut, 7/16-20
Lower Frame Assembly
Engine Pulley, 3.56 OD
Electric Clutch Anti-rotation bracket
Hex Nut, 5/16-18
REF. PART
NO. NO.
24 710-3180
25 732-0978
26 710-0642
27 736-0277
28 712-3004A
29 783-0683B
30 883-0294
31 738-3056
32 717-1709
33 738--0785
34 736-0171
35 710-3157
710-0561
36 710-3011
37 756-0627
38 754-0476
754-0475
39 783-0349
40 736-0119
41 710-3025
42 736-0105
43 710-0650
44 712-3006
DESCRIPTION
Hex Cap Screw, 5/16-18 x 1.75 (Grade 5)
Extension Spring, 1.20D x 3.638
Self-tapping Screw, 1/4-20 x .750
Flat Washer, 1.031 x 1.62 x .095*
Flange Lock Nut, 5/16-18
Steering Support Bracket
Idler Bracket Assembly
Shoulder Screw, 1/2 Diameter x 2.5
Electric PTO Clutch
Shoulder Spacer, 1.38 x .445 x .36
Lock Washer, 7/16
Hex Cap Screw, 7/16-20 x 3.25 (Grade 5)
Hex Cap Screw, 7/16-20 x 2.5 (Grade 5)*
Hex Cap Screw, 3/8-16 x 2.25 (Grade 5)
Flat idler Pulley, 3.50D
PTO Belt (46-inch Decks)
PTO Belt (50-inch Decks)
Battery Tray
Lock Washer, 5/16
Hex Cap Screw, 5/16-18 x .625
Bell Washer, .401 x .870 x .063
Self-tapping Screw, 5/16-18 x .875
Hex Nut, 1/4-20
*Found on units equipped with a Kohler engine ONLY.
NOTE: For painted parts, please refer to
the list of color codes below. Please add
the applicable color code, wherever
needed, to the part number to order a
replacement part. For instance, if a part
numbered 700-xxxx is painted Powder
Black, the part number to order would be
700-xxxx-0637.
MTD Red: 0638
Oyster Gray: 0662
Powder Black: 0637
41
