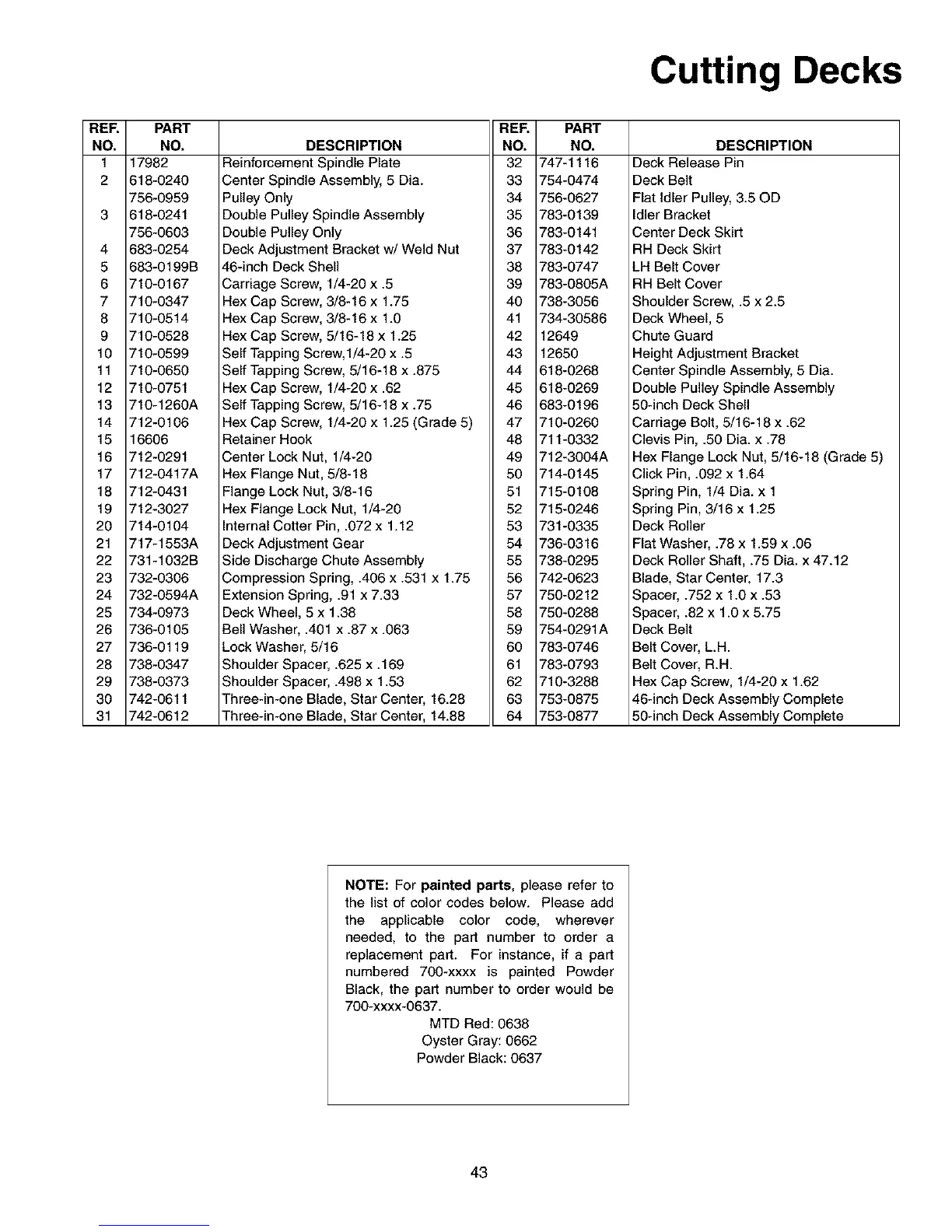

Cutting Decks
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
PART
NO.
17982
618-0240
756-0959
618-0241
756-0603
683-0254
683-0199B
710-0167
710-0347
710-0514
710-0528
710-0699
710-0650
710-0751
710-1260A
712-0106
16606
712-0291
712-0417A
712-0431
712-3027
714-0104
717-1563A
731-1032B
732-0306
732-0594A
734-0973
736-0105
736-0119
738-0347
738-0373
742-0611
742-0612
REF. PART
DESCRIPTION NO. NO.
Reinforcement Spindle Plate 32 747-1116
Center Spindle Assembly, 5 Dia. 33 754-0474
Pulley Only 34 756-0627
Double Pulley Spindle Assembly 35 783-0139
Double Pulley Only 36 783-0141
Deck Adjustment Bracket w/Weld Nut 37 783-0142
46-inch Deck Shell 38 783-0747
Carriage Screw, 1/4-20 x .5 39 783-0805A
Hex Cap Screw, 3/8-16 x 1.75 40 738-3056
Hex Cap Screw, 3/8-16 x 1.0 41 734-30586
Hex Cap Screw, 5/16-18 x 1.25 42 12649
Self Tapping Screw, I/4-20 x .5 43 12650
Self Tapping Screw, 5/16-18 x .875 44 618-0268
Hex Cap Screw, 1/4-20 x .62 45 618-0269
Self Tapping Screw, 5/16-18 x .75 46 683-0196
Hex Cap Screw, 1/4-20 x 1.25 (Grade 5) 47 710-0260
Retainer Hook 48 711-0332
Center Lock Nut, 1/4-20 49 712-3004A
Hex Flange Nut, 5/8-18 50 714-0145
Flange Lock Nut, 3/8-16 51 715-0108
Hex Flange Lock Nut, 1/4-20 52 715-0246
Internal Cotter Pin, .072 x 1.12 53 731-0335
Deck Adjustment Gear 54 736-0316
Side Discharge Chute Assembly 55 738-0295
Compression Spring, .406 x .531 x 1.75 56 742-0623
Extension Spring, .91 x7.33 57 750-0212
Deck Wheel, 5 x 1.38 58 750-0288
Bell Washer, .401 x .87 x .063 59 754-0291A
Lock Washer, 5/16 60 783-0746
Shoulder Spacer, .625 x.169 61 783-0793
Shoulder Spacer, .498 x 1.53 62 710-3288
Three-in-one Blade, Star Center, 16.28 63 753-0875
Three-in-one Blade, Star Center, 14.88 64 753-0877
DESCRIPTION
Deck Release Pin
Deck Belt
Flat idler Pulley, 3.50D
Idler Bracket
Center Deck Skirt
RH Deck Skirt
LH Belt Cover
RH Belt Cover
Shoulder Screw, .5 x 2.5
Deck Wheel, 5
Chute Guard
Height Adjustment Bracket
Center Spindle Assembly, 5 Dia.
Double Pulley Spindle Assembly
50-inch Deck Shell
Carriage Bolt, 5/16-18 x .62
Clevis Pin, .50 Dia. x .78
Hex Flange Lock Nut, 5/16-18 (Grade 5)
Click Pin, .092 x 1.64
Spring Pin, 1/4 Dia. x 1
Spring Pin, 3/16 x 1.25
Deck Roller
Flat Washer, .78 x 1.59 x .06
Deck Roller Shaft, .75 Dia. x 47.12
Blade, Star Center, 17.3
Spacer, .752 x 1.0 x .53
Spacer, .82 x 1.0 x 5.75
Deck Belt
Belt Cover, L.H.
Belt Cover, R.H.
Hex Cap Screw, 1/4-20 x 1.62
46-inch Deck Assembly Complete
50-inch Deck Assembly Complete
NOTE: For painted parts, please refer to
the list of color codes below. Please add
the applicable color code, wherever
needed, to the part number to order a
replacement part. For instance, if a part
numbered 700-xxxx is painted Powder
Black, the part number 1o order would be
700-xxxx-0637.
MTD Red: 0638
Oyster Gray: 0662
Powder Black: 0637
