33

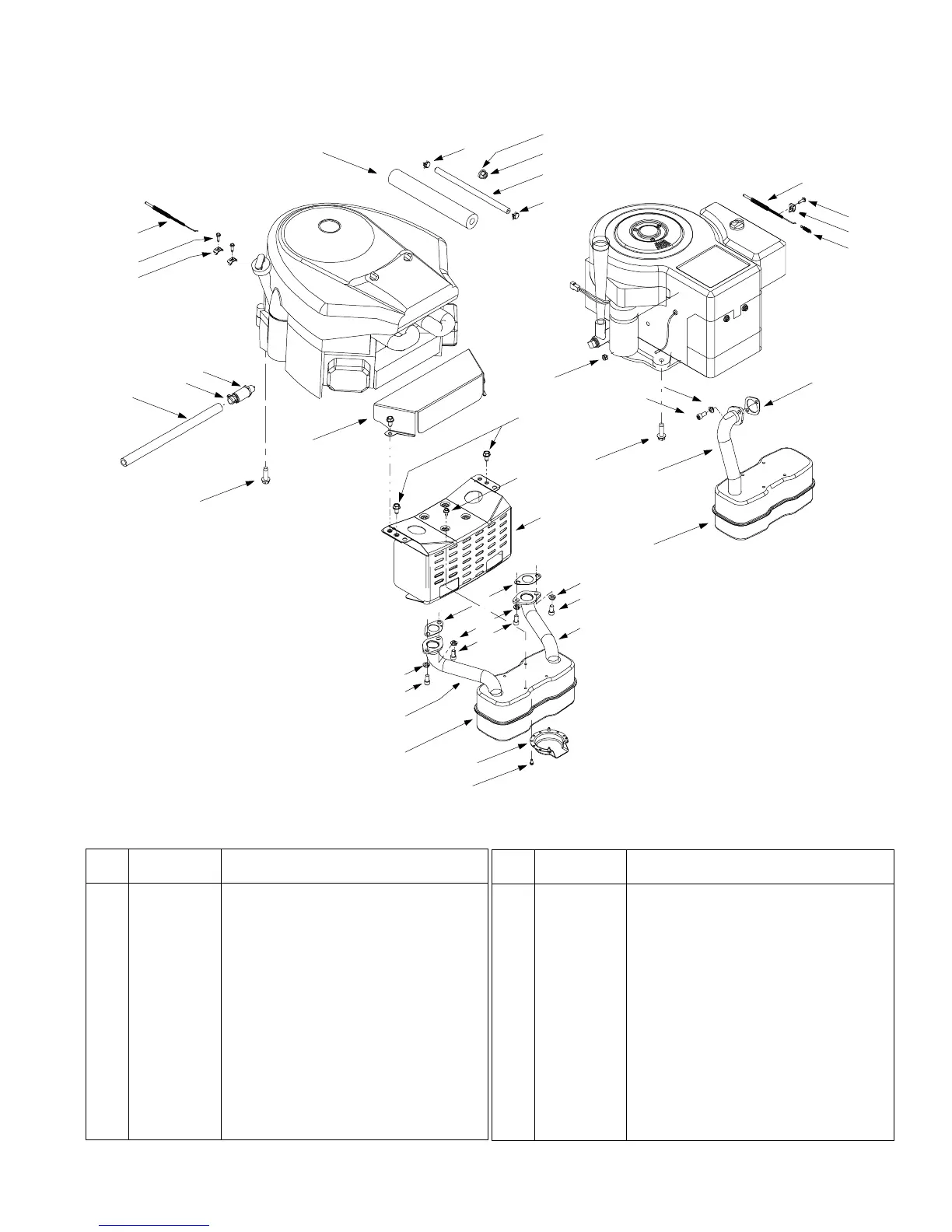

Models D609, G609, U609 & X609
REF.
NO.
PART
NO. DESCRIPTION
1 710-0227 Self-tapping Screw, #8-18 x .5
2 710-0599 Self-tapping Screw, 1/4-20 x .5
3 710-0604A Self-tapping Screw, 5/16-18 x .625
4 710-1237 Screw, #10-32 x .625
5 710-1314A Socket Cap Screw, 5/16-18 x .625
6 710-1315 Self-tapping Screw, 3/8-16 x 1.25
7 712-3017 Hex Nut, 3/8-16 (Model G609G)
8 721-0460 Exhaust Gasket (Model G609G)
9 726-0205 Hose Clamp
10 736-0119 Lock Washer, 5/16
11 736-0300 Flat Washer (Model G609G)
12 751B221535 Casing Clamp (Model G609G)
13 751-0535 Fuel Line Hose
14 751-0564 Muffler Deflector
15 751-0616 Muffler, Twin Inlet (Model G609G)
16 751-0650 RH Exhaust Pipe (Model G609G)
17 751-0651 LH Exhaust Pipe (Model G609G)
18 751-3140 Oil Drain Valve
19 751-3141 Oil Drain Hose
20 751-3142 Oil Drain Cap
21 783-0615B Muffler Heat Shield
22 783-0625C Engine Heat Shield (Model G609G)
23 722-0263 Foam (fits over fuel line)
24 746-1086 Throttle Cable (Model G609G)
25 746-1084 Throttle Cable (Model D609G)
26 751-0619 Exhaust Pipe (Model D609G)
27 751B213146 Casing Clamp (Model D609G)
28 751-0617 Muffler, Single Inlet (Model D609G)
29 712-0271 Hex Sems Nut, 1/4-20 (for starter cable)
30 721-0208 Exhaust Gasket (Model D609G)
REF.
NO.
PART
NO. DESCRIPTION
NOTE: Engine accessory parts are applicable to all models except otherwise noted.
9
7
11
(for choke)
13
4
12
6
9
22
18
19
20
8
10
14
10
5
10
5
16
15
1
17
5
24
3
2
21
23
27
31
4
25
6
29
10
5
28
30
2
6
