6
ASSEMBLING THE HANDLEBARS
Before you can operate the unit, you must install the
handlebars.

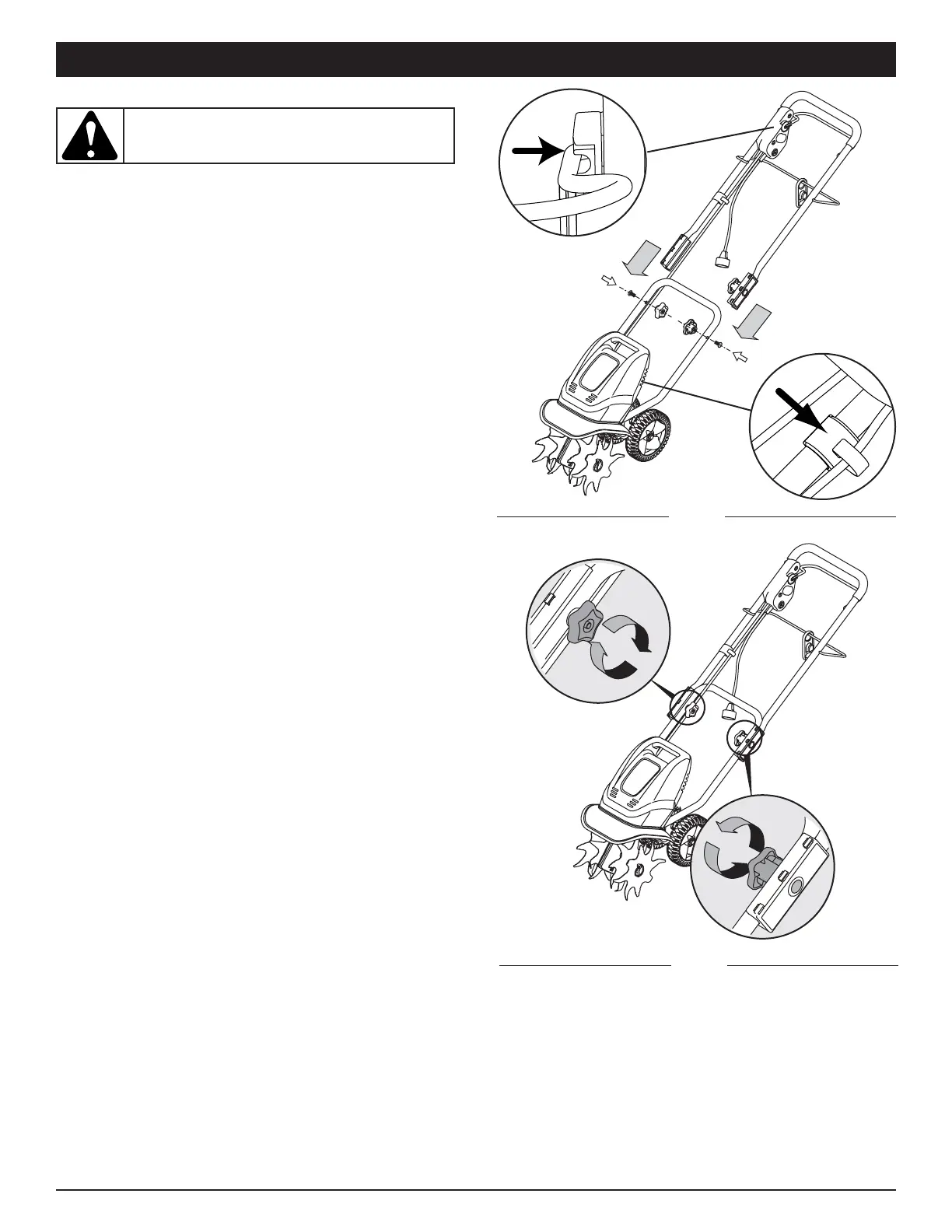

1. When you unpack the unit, hold the handle bar in the
position shown in Figure 1 and slide it onto the lower bars.
2. Align the holes in the handlebar with the holes in the lower
bars and insert the bolts through those holes.
3. Hold the handle in place while screwing the knobs onto
the bolts (Fig. 2).
4. Tighten the knobs to secure the handlebars in place.
NOTE: Do not over-tighten the knobs.
5. Check to make sure the bail is assembled into the switch
assembly (Fig. 1, Inset A).
NOTE: Take care not to pinch the switch cable when
positioning the handlebars.
6. Clip the switch cable to the cable restraint on the lower
bar as shown in Figure 1, Inset B.
Fig. 1
Fig. 2
ASSEMBLY INSTRUCTIONS
WARNING: To prevent serious personal injury,
do not connect electric extension cord to unit until
fully completing cultivator assembly.
A
B
