Installation & Setup (cont.)
Shelf Installation
WARNING!
Overloading, incorrectly installing, or improperly
loading shelves can cause shelf failure and negatively
affect appliance operation, resulting in appliance
damage, product damage, or personal injury.
USER ACTION!
For ease of installation, True recommends installing
the lower shelf first.
NOTICE!
Doors are manufactured with a 90° stay open feature
to assist with loading and unloading of the cabinet.
Procedure
1. Position the shelf brackets in front of the shelf standard at the
desired height. See fig. 1.
2. Raise the shelf front and hook the shelf bracket support tab
into the shelf standard slots. See figs. 2 and 3.
3. Slide the shelf angle adjustment tabs into the shelf standard
slots. Position the notches in the angle adjustment tabs to
support the shelf at the desired angle. See fig. 3.

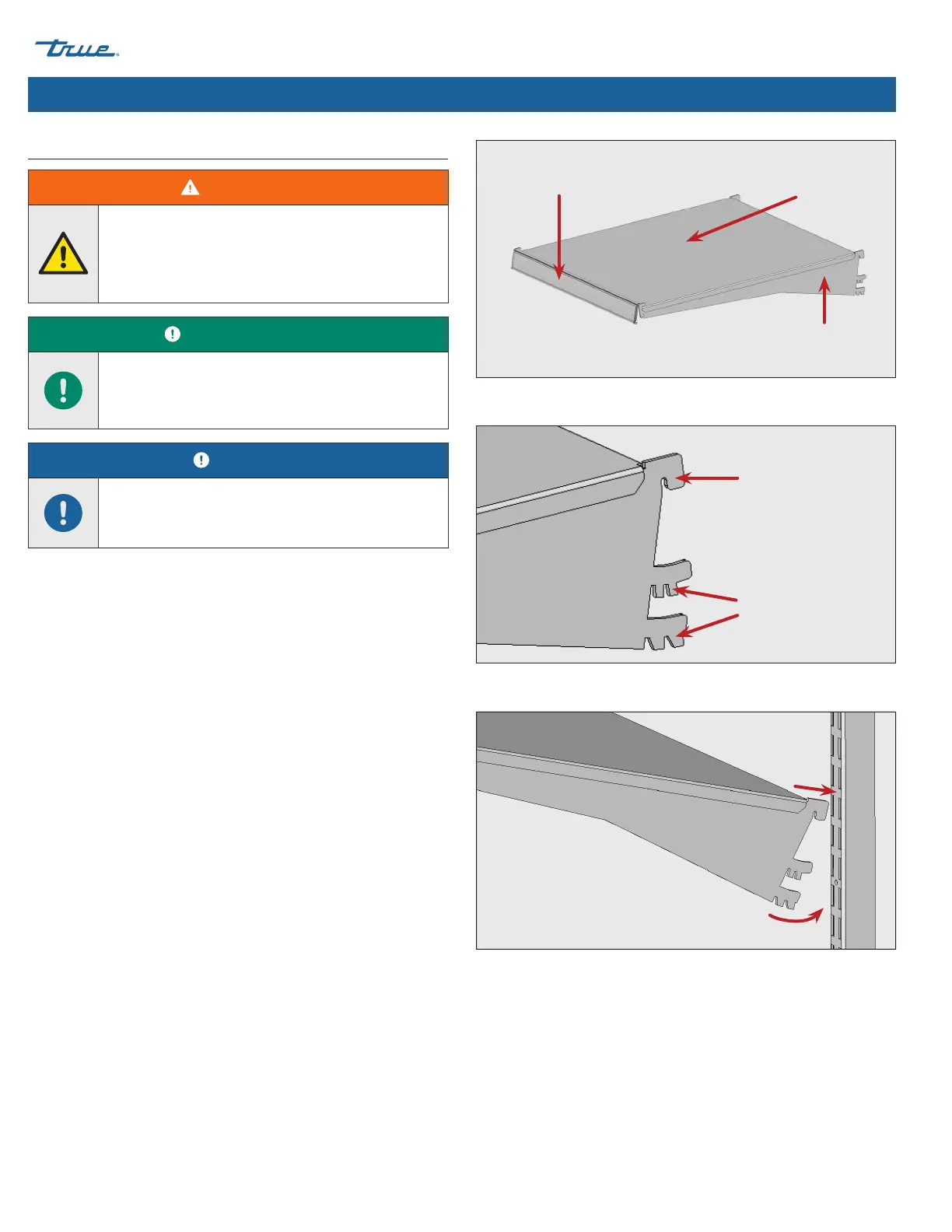

Fig. 1. The cantilever shelf components.
Fig. 2. Cantilever shelf tab identification.
Fig. 3. Cantilever shelf into the shelf standard.
Shelf Front
Shelf
Shelf Bracket
Angle Adjustment Tabs
Bracket Support Tab
