Maintenance & Servicing (cont.)

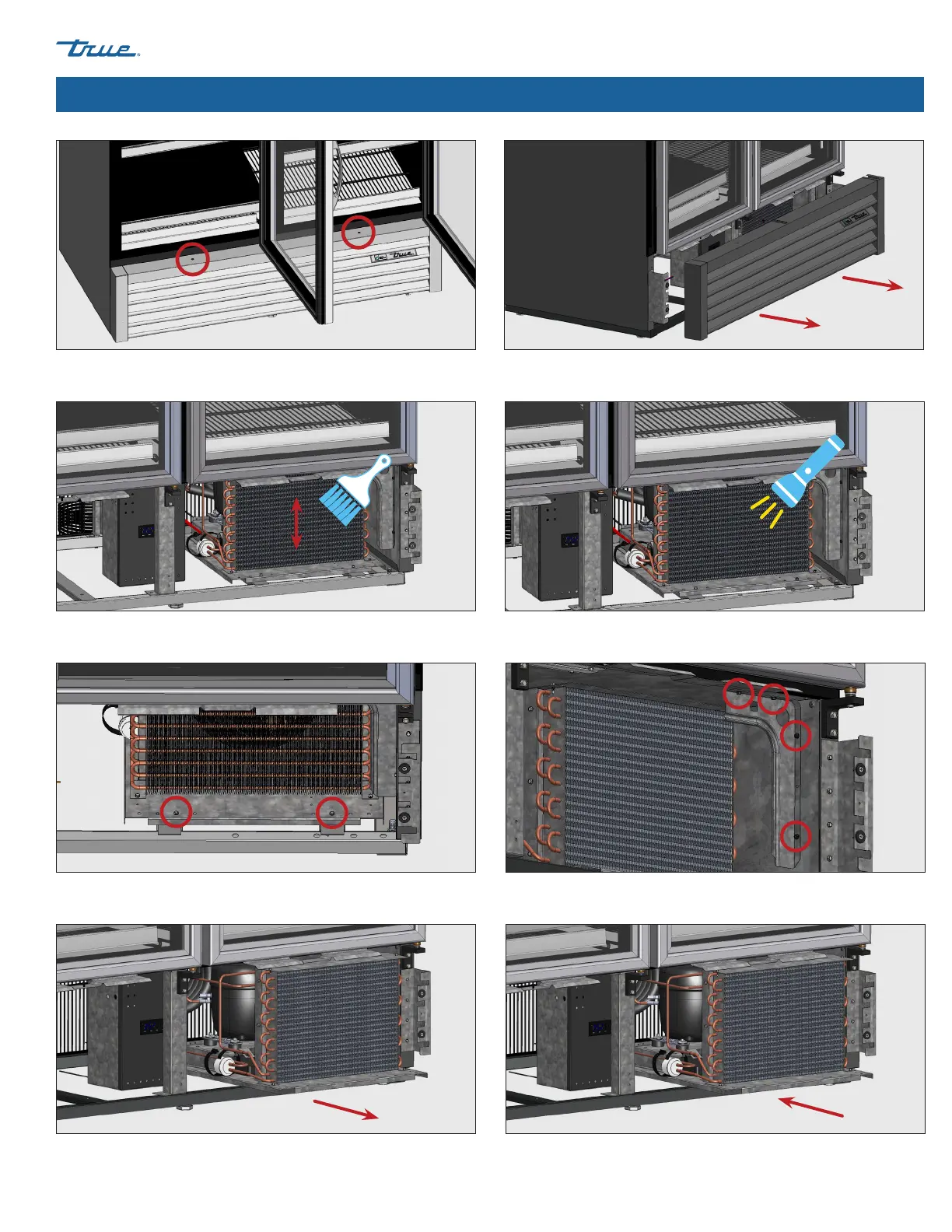

Fig. 7. Carefully slide the condensing unit out.
Fig. 1. Front louver grill screw location. Two-door unit shown.
Fig. 3. Never brush across coil fins!
Fig. 5. Condenser base bolt locations.
Fig. 8. Carefully slide the condensing unit back into position and reinstall the bolts.
Fig. 2. Carefully pull the front louver grill away from the unit.
Fig. 4. Verify all blockages have been removed.
Fig. 6. Cabinet support bracket screw locations.
