True GDM-49 - Light Cover Install for GDM-10 F & GDM-12 F

............ www.truemfg.com ............
True Food Service Equipment, Inc.
28
28
INSTALLATION / OPERATION INSTRUCTIONS
IMPORTANT
Before installing lamp cover turn cabinet on
and allow it to reach
temperature.
___________ STEP 1 ____________
Locate rubber gasket behind lamp holder
mountedtoevaporatorhousing.
(SeeImage1).
___________ STEP 2 ____________
Fitthebottomedgeofthelampcoverintothe
bottomgrooveoftherubbergasketandrotate
upwardswhileworkingtheedgesintotherest
of the rectangular groove. (See Images 2-3).
(slidefingersunderneathtopedgesofrubber
gasketandpushrubberoverthetoplipofthe
lampshield).
___________ STEP 3 ____________
Besurelampcoverisseatedproperlyinrub-
bergasket.
NOTE
If cabinet is turned off and
interior allowed to warm up lamp cover may
become loose and require reinstallation. Follow
directions above.

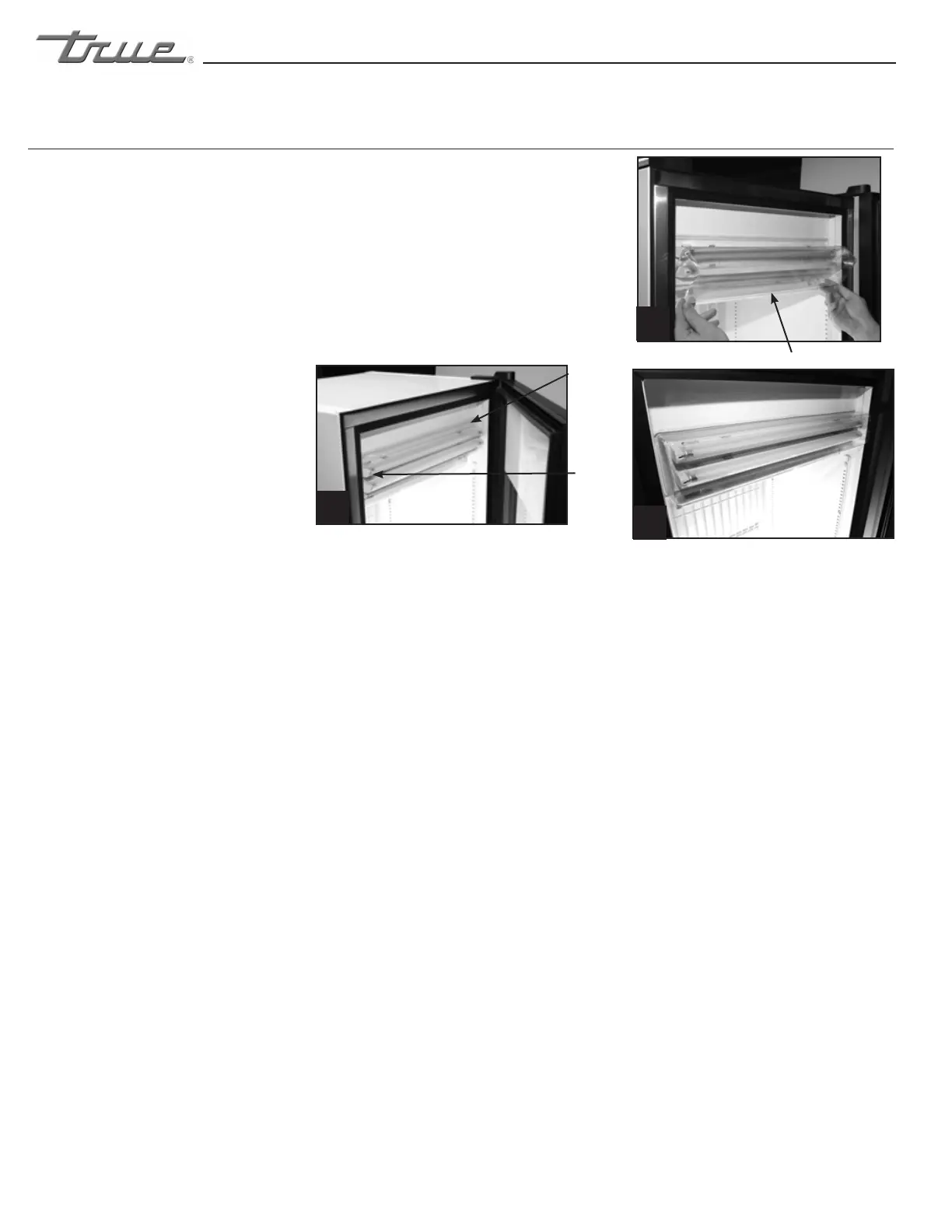

Light Cover Installation for GDM-10F & GDM-12F
Lamp Cover
Rubber
Gasket
Lamp
Holder
1
2
3
