INSTALLATION OF OPTIONAL OVERLAY KIT FOR
TCGD, TCGDZ & TCGR BAKERY CASES
OVERLAY KIT COMPONENTS:
• 2 - Overlay Top End Pieces
• 2 - Bottom End Pieces: (1) one left side (1) one right side
• 1 - Overlay Front Piece
• Tape (812918)
TOOLS REQUIRED:
• Phillips Screwdriver
• Silicone Spray (may be optional)
NOTE: PLEASE USE CARE WHEN INSTALLING THE
OVERLAY.
NOTE: REFER TO FIGURE 1 FOR PLACEMENT OF
OVERLAY PANELS.
STEP 1 - Install the front overlay panel.
Installing front overlay piece. Make sure the bottom end pieces are off
in order to install the front overlay piece. Slide overlay into top and
bottom tracks on the front of the cabinet. Make sure overlay is even
on both left and right end of the cabinet. See Figures 1 & 2.
NOTE: The use of silicone spray may be used to assist with the
installation of the front panel.
STEP 2 - Install the upper end overlay panel one on each side (this
applies to both sides).
Install top end pieces. Make sure the bottom end pieces are off in
order to install the top side overlay piece. Both side overlay pieces
are the same size so they each can be used for left or right of the
cabinet. Slide overlay up into black plastic tracks on the top side
piece of each cabinet. See Figures 1, 2, & 3.
NOTE: After installing the bottom end pieces the top end overlay
will stay in place.
STEP 3 - Install bottom end pieces (overlay is pre-glued to black
plastic panel).
Line up the 4 keyhole slots in each bottom end piece to the 4 screws
on the side of the cabinet. Slip the four large keyholes from the bot-
tom end piece over the four screws. Then push down to fasten the
bottom end piece onto the cabinet. See Figures 1 & 3.
NOTE: The bottom left and right pieces are not the same. The
taller part of the bottom end piece goes to the rear of the cabinet.
As shown in Figure 3.

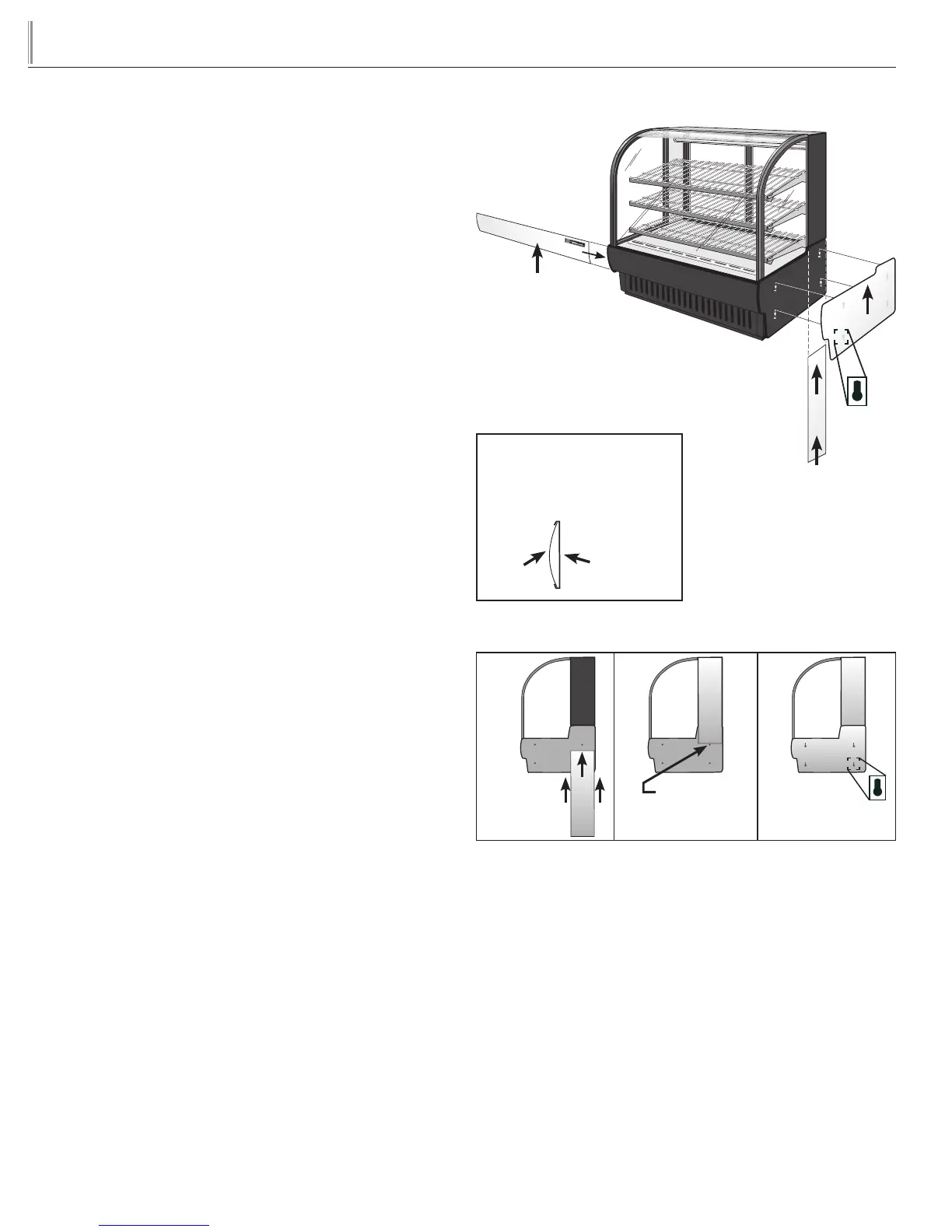

Figure 1
STEP 1
STEP 3
STEP 2
Side view of overlay sliding
into place for front piece
and top end piece.
Tracks to hold
overlay.
Overlay
Figure 2 (Step 1 & 2)
Overlay top end
piece will slide
up into plastic
tracks.
Overlay top end
piece will rest on
screw.
Overlay bottom
end piece will lock
into four screws through
keyholes on backside of
bottom end piece.
Figure 3
To Next Page
