SHELF INSTALLATION (COLD DELI):
A. Lift each door up and out of track (do not disconnect elastic
tubing). Stretch elastic surgical tubing and set doors on each
side of unit.
B. Locate brackets, lights, shelves, etc. from cabinet interior.
C. Locate shelf supports wrapped in micro foam and install teeth
end into stainless pilasters located on interior walls. Adjust to

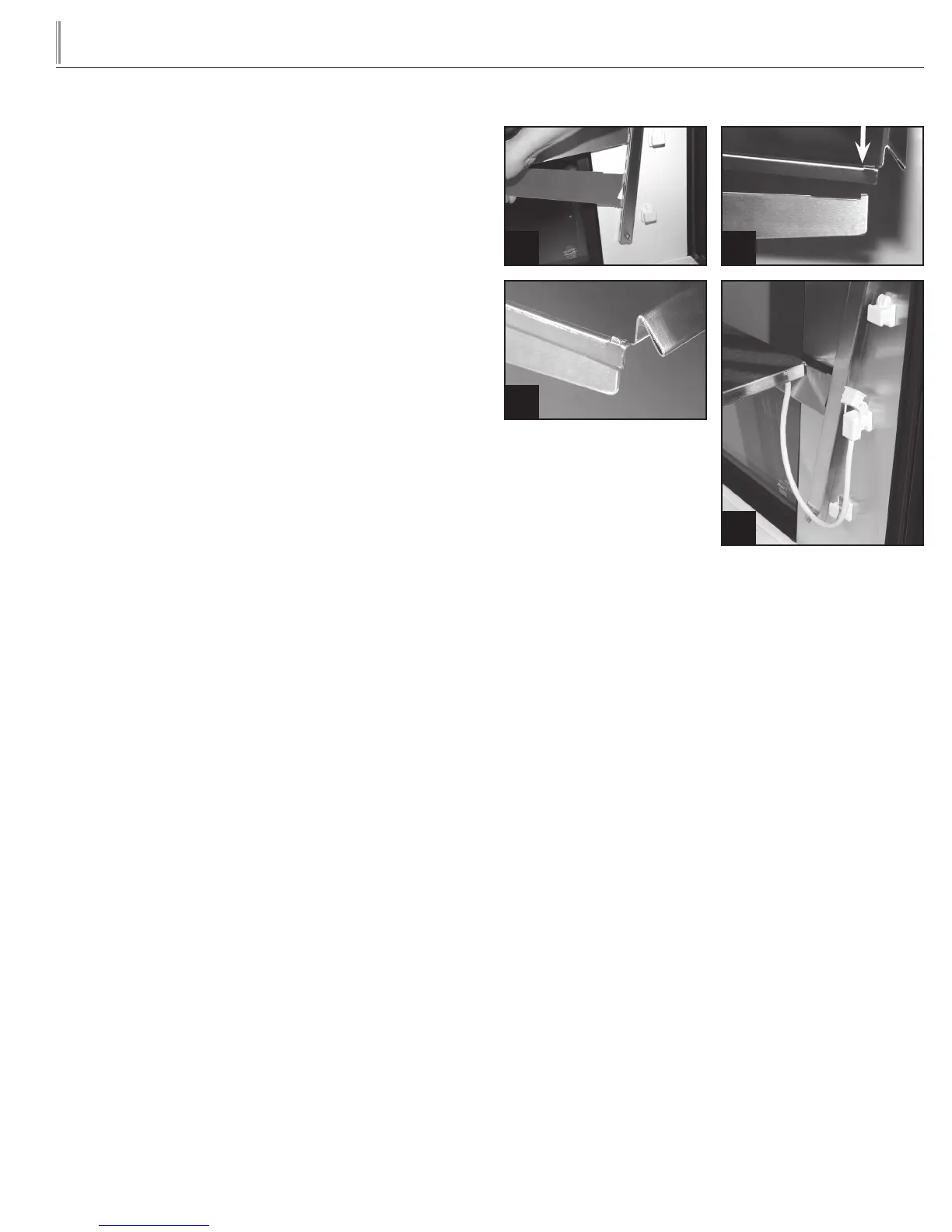

desired height matching right and left pairs. (images 1 & 2).
D. Locate the stainless steel shelf and install with product stop
towards the front of the cabinet. Side flaps should overlap shelf
support. Be sure to fit shelf support tip into front slot of shelf
(images 2 & 3).
E. Plug light assembly into any receptacle of cabinet interior side
wall (image 4).
F. Replace doors in track.
NOTE: THREE LIGHTING RECEPTACLES ALLOW
FOR TWO ADDITIONAL, "OPTIONAL", LIGHTED
SHELVES.
WARNING: SHELF MOUNTED LIGHTING
REQUIRES A CLOSED CIRCUIT. ALL PLUGS MUST
BE PLUGGED INTO SIDE WALL RECEPTACLES FOR
LIGHTS TO WORK. IF LESS THAN THREE SHELVES
ARE INSTALLED BE SURE ATTACHED CAPS ARE
PLUGGED INTO RECEPTACLE(S) (IMAGE 4).
