Cabinet Setup
Drawer Removal and Installation #2
Removal
1. Slide the drawer out and locate the plastic drawer retainer. See
fig. 1.
2. Push the plastic drawer retainer forward and raise the front
end. See figs. 2a and 2b.
3. Remove the drawer.
Installation
1. With the plastic drawer retainer raised, align the drawer with
the slide and push the drawer into position. See figs. 2b and 3.
2. Align the drawer with the drawer slide and push the drawer
into position.
3. Press the plastic drawer retainer down and towards the back of
the cabinet. See fig. 1.
4. Verify correct drawer operation.

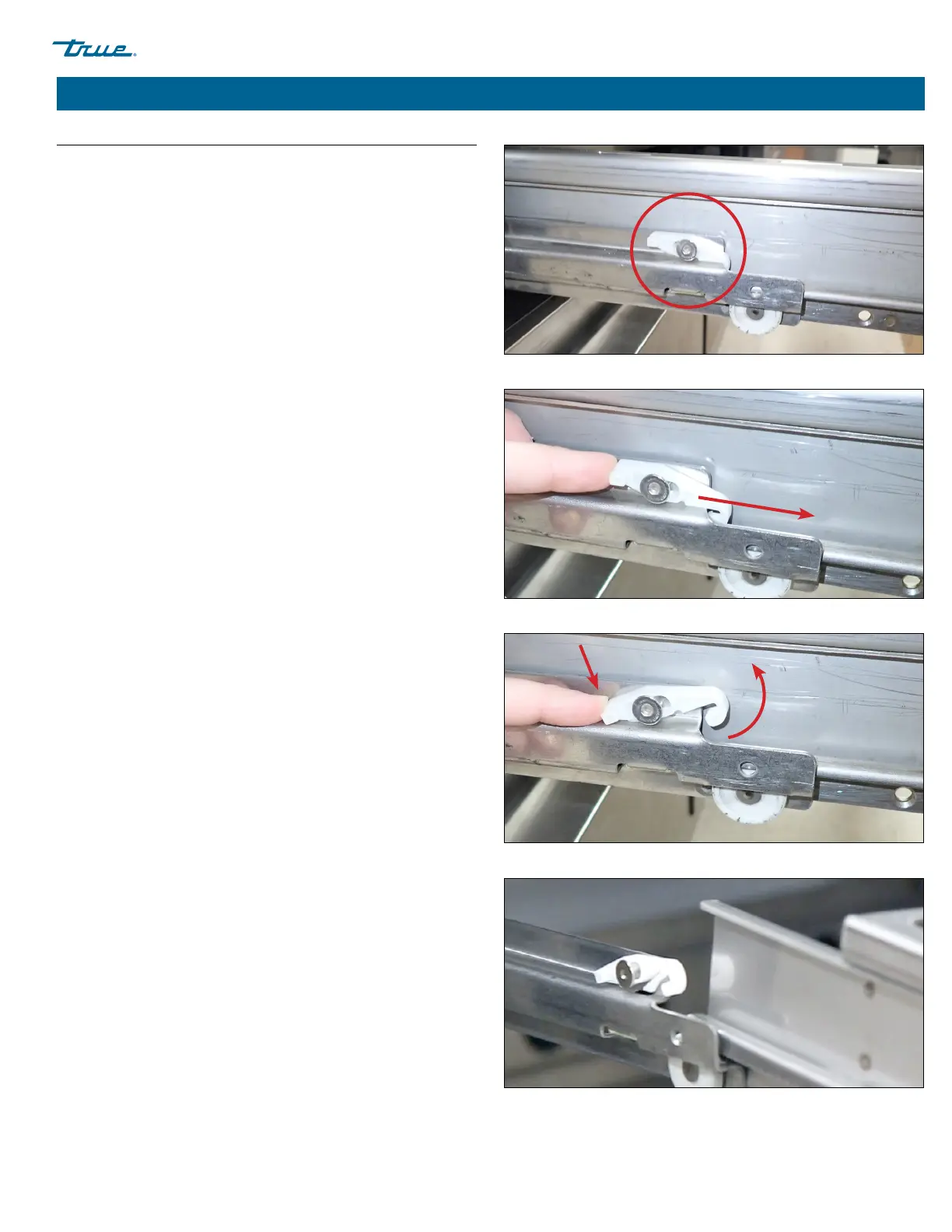

Fig. 1. Drawer retainer location. Retainer is engaged.
Fig. 2a. Push the retainer forward.
Fig. 2b. Push the back of the retainer down.
Fig. 3. Align the drawer with the drawer slide.
